User Manual Part 1

ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Firewall Security and Content Filtering 5-29
v1.0, July 2008

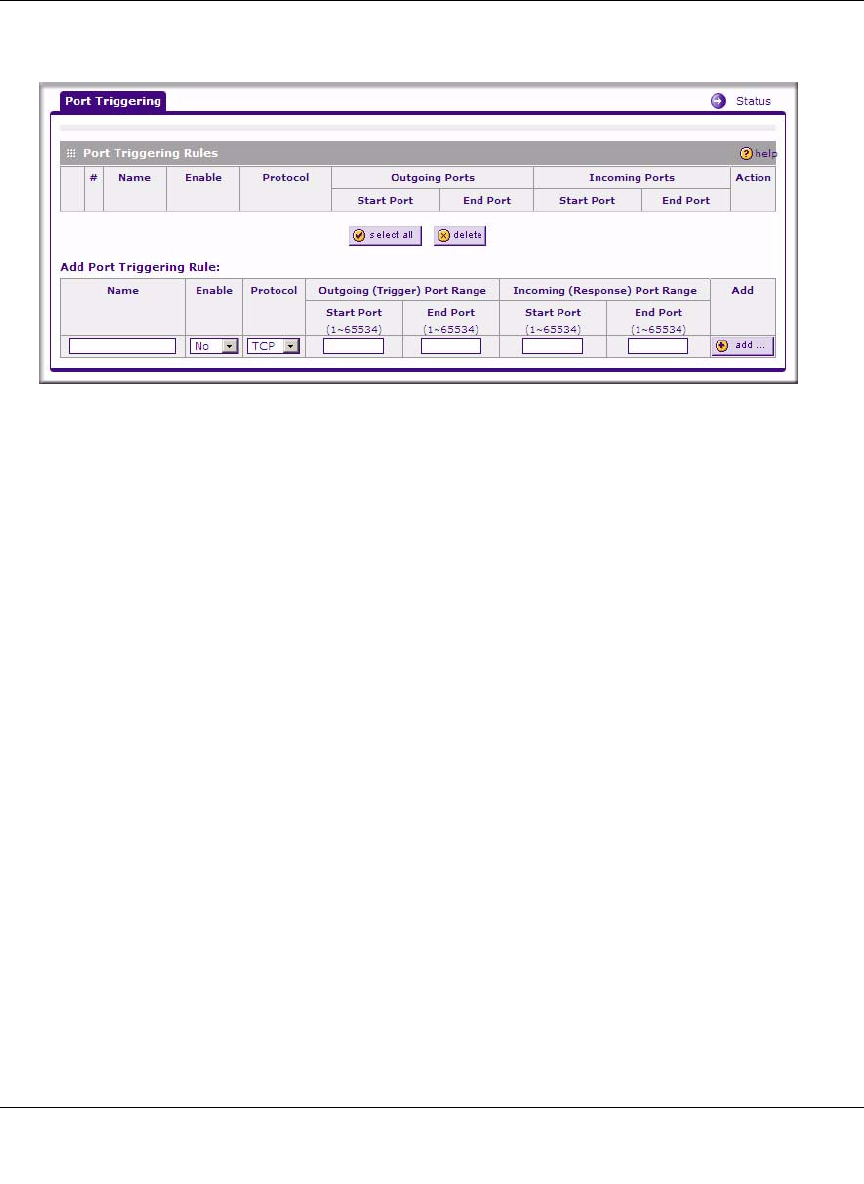

The Port Triggering screen is displayed.
2. Enter a user-defined name for this rule in the Name field.
3. From the Enable pull-down menu, indicate if the rule is enabled or disabled.
4. From the Protocol pull-down menu, choose either TCP or UDP transport protocol.
5. In the Outgoing (Trigger) Port Range fields:
a. Enter the Start Port range (1 - 65534).
b. Enter the End Port range (1 - 65534).
6. In the Incoming (Response) Port Range fields:
a. Enter the Start Port range (1 - 65534).
b. Enter the End Port range (1 - 65534).
7. Click Add. The port triggering rule is added to the Port Triggering Rules table.
To check the status of the port triggering rules, click the Status option arrow to the right of the tab
on the Port Triggering screen.
Figure 5-14OK
