SAS
Citizens Broadband Radio Service (CBRS) is a 150 MHz wide broadcast band of the 3.5 GHz band (3550
MHz to 3700 MHz) in the United States.
FCC has authorized the full use of the CBRS band for wireless service provider commercialization under a
three-tiered spectrum authorization framework to accommodate a variety of commercial uses on a shared
basis with incumbent federal and non-federal users. With this service, wireless carriers using CBRS are able
to deploy 5G mobile networks without having to acquire spectrum licenses.
When devices such as your CFW-2182 want to use the CBRS band they put in a request to a cloud-based
Spectrum Access System (SAS) to reserve unused General Authorized Access channels in a particular
geographic area. If channels are free, SAS can grant the requests.
When devices with permission to use channels no longer require access, their unused authorization is put
back into the pool that the SAS draws from to grant requests to other users with minimal interference.
CBRS Registration Status
To see the CFW-2182’s current CBRS Registration Status open the Services menu, drop down the SAS
submenu and select CBRS parameters.

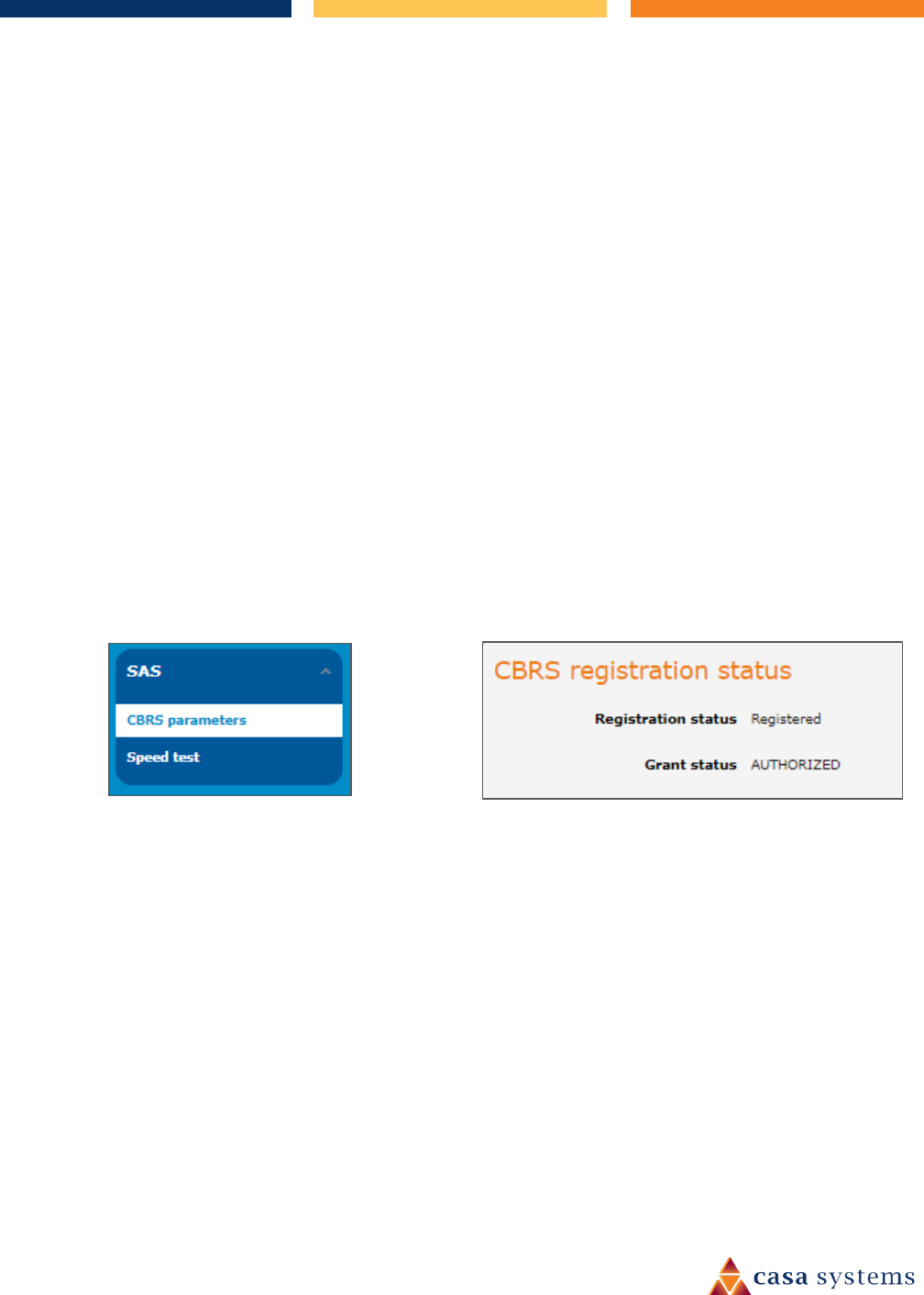

Figure 45 – Select CBRS parameters from SAS submenu
Figure 46 – CBRS Registration Status details
The Registration Status will be indicated as either: Registered or Unregistered
The Grant status will also be specified. It may be: AUTHORIZED, PENDING, GRANTED or blank
Speed Test
To see the CFW-2182’s current upload and download speeds, open the Services menu, drop down the SAS
submenu and select Speed test.
Run speed test
If you have previously used the download and upload server details that are displayed on the page, click the
Run speed test button to check the current speeds between the CFW-2182 and those respective servers.
