Installation
The positioning and installation of the CFW-2182 antenna is achieved by a trained technician using the Casa
Systems Smart Antenna Tool.
Details about the Smart Antenna Tool and the complete CFW-2182 installation process are fully described in
the CFW-2182 Installation Guide (doc no IG1225).
Typical CFW antenna installation

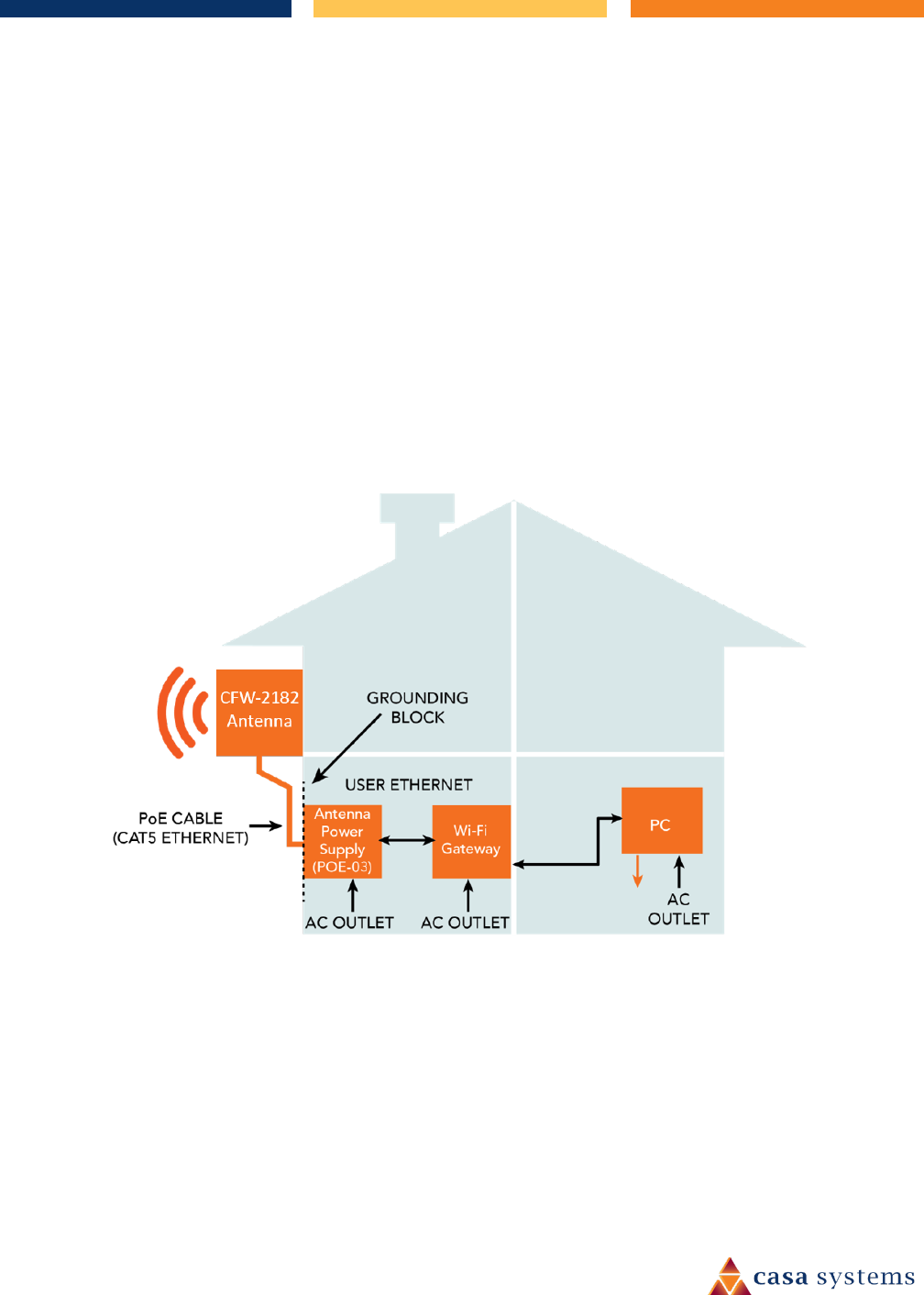

The image below illustrates a typical installation of the CFW-2182 CBRS 4G Outdoor UE on the side of a
building.
Figure 24 – Typical CFW-2182 CBRS 4G Outdoor UE Installation
Note that this User Guide relates to the CFW-2182’s physical components and its web user interface.
Normally only the installing technician would require access to the CFW-2182’s web user interface, if at all.
Ordinarily a customer’s connection to the internet would be exclusively governed by the settings of the Wi-Fi
Gateway, see Figure 3. Those settings would depend on the type of connection, brand of gateway,
requirements of the service provider, etc.
