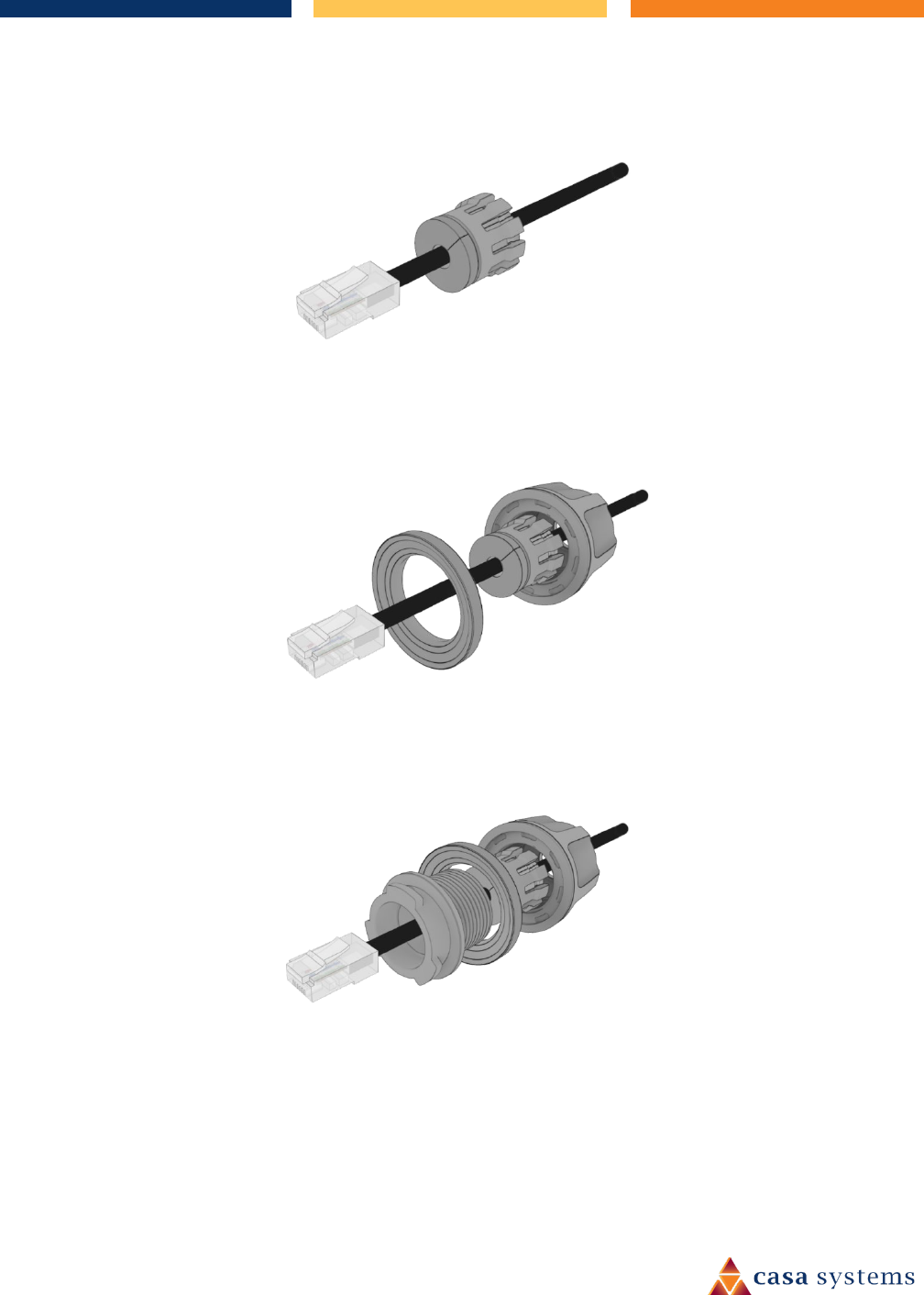

7 Push the ferrule over the rubber seal to prevent it from coming apart.
Figure 18 - Ferrule placed over rubber seal
8 Place the washer seal over the Ethernet cable as shown below. Ensure that the inside protruding lip is
on the opposite side of the Ethernet plug.
Figure 19 - Washer seal placed over Ethernet cable
9 Place the neck over the Ethernet cable as shown below.
Figure 20 - Neck placed over Ethernet cable
