Mounting bracket assembly instructions

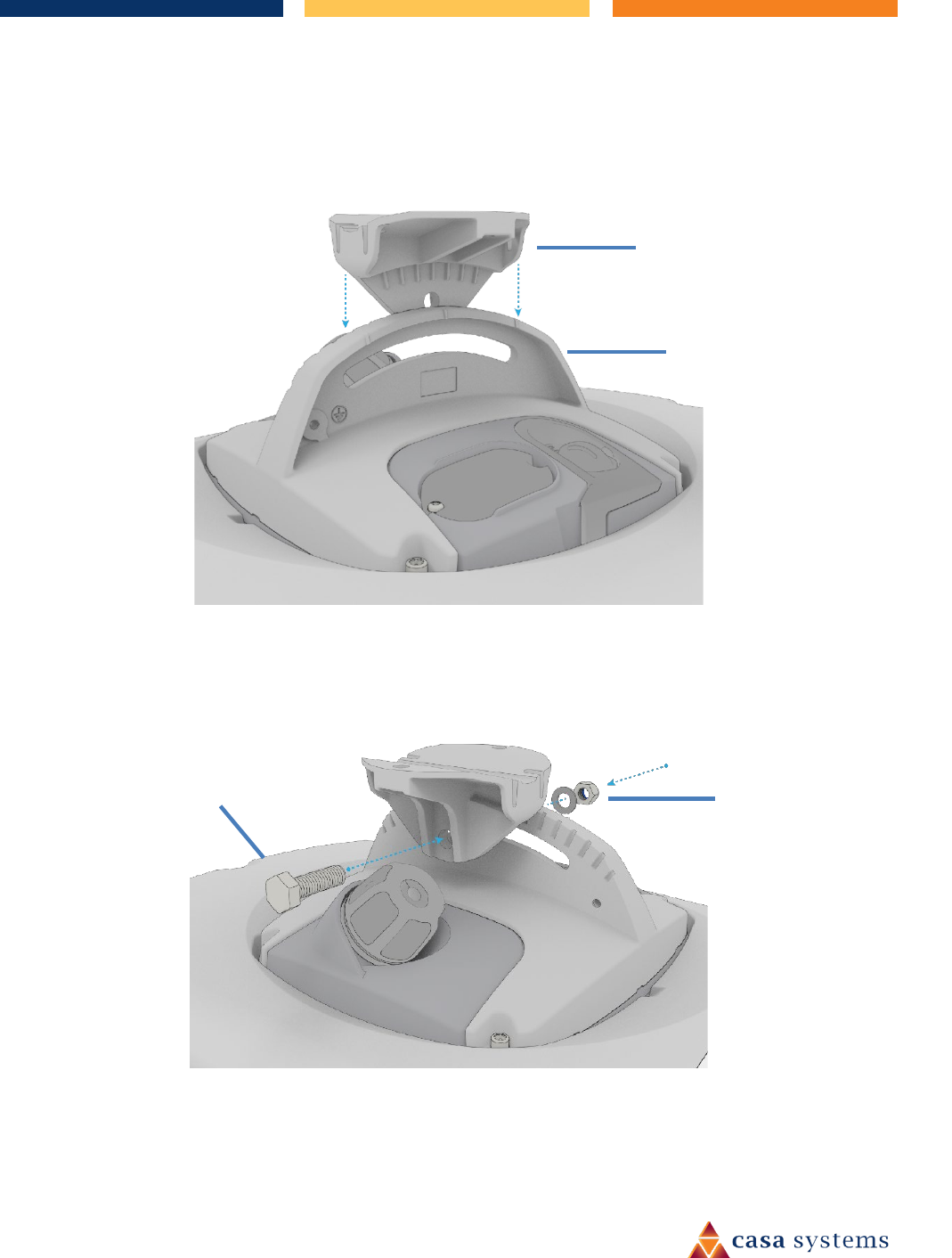

1 Place the pipe bracket onto the radome mount bracket as shown below.
Figure 9 – Elevation control components
2 Insert the pivot bolt into the pipe clamp, then place the washer and nut over the pivot bolt as shown
below.
Figure 10 - Attaching the mounting bracket to the CFW-2182 CBRS 4G Outdoor UE
Fixed elevation control
Adjustable elevation control
Elevation setting bolt
Elevation setting bolt
nut and washer
