The Setup Menu
The NB5 can be configured to maintain up to eight Connection Profiles. Different Connection
Profiles may be required if you connect to more than one ADSL service provider, or if you vary the
connection type you use, or if your NB5 is used in different locations. The NB5 Interface provides a
function under the WAN Setup Menu to enable the user to create, save and select Connection
Profiles as required. (Note than in many cases, only one connection profile will be required.)
WAN Setup
The Setup Menu is divided into two sections: LAN Setup and WAN Setup. WAN will be dealt with
first. Possible WAN configurations will be detailed sequentially commencing with PPPoE.

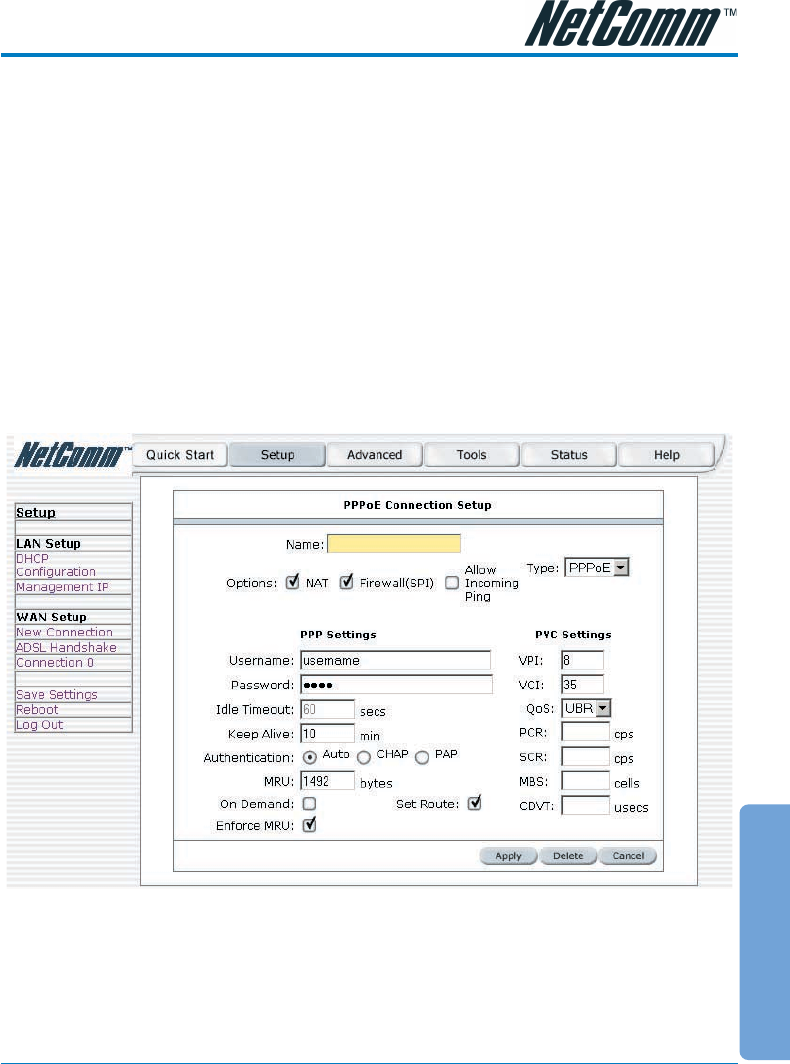

Click on Setup>WAN Setup>New Connection. This will reveal the Connection Setup Screen in the
default configuration of PPPoE.
