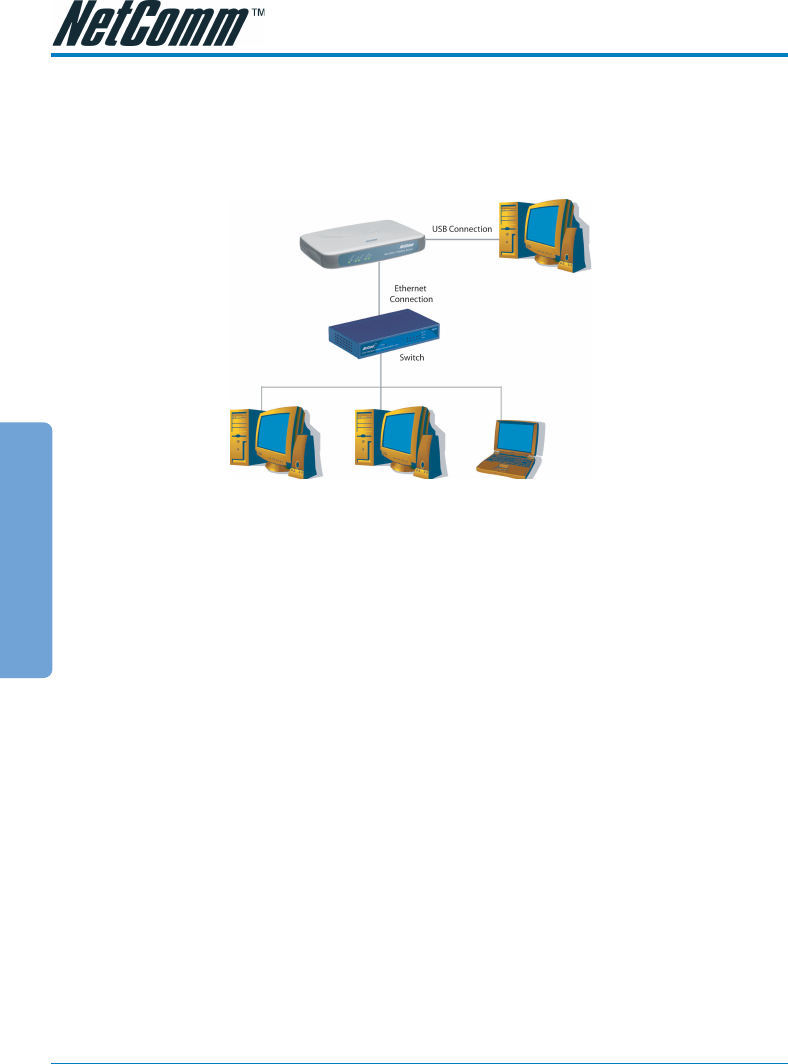

1.1.2 For Multiple User Connections
You may connect one computer/notebook to the Ethernet Port and another one to the USB
Port on the ADSL Router at the same time. Refer to both section 1.1.2(a) Connecting to the
Ethernet and section 1.1.2(b) Connecting to the USB for the connections.
For more than 2 Computers/Notebooks connections, you may also expand the Ethernet
connection by connecting the ADSL Router to an Ethernet Switch/Hub.
For details on the connection and types of Ethernet Network cable to use with the Ethernet
Switch/Hub, please refer to the documentation that comes with your Ethernet Switch/Hub.
Proceed to Step 1.2.
