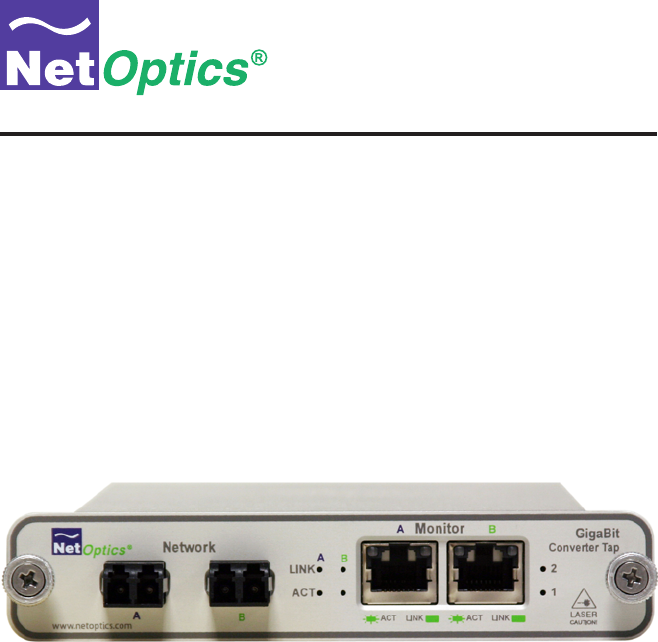

Installation Guide for GigaBit SX/LX to TX Tap Doc. PUBCVTSXLXGCUU Rev.
GigaBit SX/LX to TX Tap Contents Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Key Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GigaBit SX/LX to TX Tap PLEASE READ THESE LEGAL NOTICES CAREFULLY. By using a Net Optics Tap you agree to the terms and conditions of usage set forth by Net Optics, Inc. No licenses, express or implied, are granted with respect to any of the technology described in this manual. Net Optics retains all intellectual property rights associated with the technology described in this manual. This manual is intended to assist with installing Net Optics products into your network.
GigaBit SX/LX to TX Tap Introduction Net Optics GigaBit SX/LX to TX Tap simplifies connecting GigaBit copper monitoring and security devices to SX or LX fiber network links. Convert SX or LX to TX and tap into the link with one device, reducing cost and complexity at the same time. GigaBit SX/LX to TX Taps support passive monitoring of GigaBit links at 1000 Mbps.
GigaBit SX/LX to TX Tap Key Features Passive, Secure Technology • Provides passive access at 1000 Mbps without data stream interference or introducing a point of failure • Access SX or LX links with GigaBit copper devices without a separate converter • Permanent in-line installation without affecting network performance • Passes all full-duplex traffic (including errors) from all layers for comprehensive troubleshooting • No IP address is needed for the Tap or monitoring device, enhancing monitoring sec
GigaBit SX/LX to TX Tap About This Guide Please read the guide before attempting to install GigaBit Tap. This guide covers the following models: Part Number Description CVT-SXn*/GCU GigaBit SX to TX Tap CVT-LXn*/GCU GigaBit LX to TX Tap * “n” is the split ratio where 5 is 50/50, 4 is 60/40, and 3 is 70/30. Unpacking and Inspection Carefully unpack the GigaBit Tap and check for damaged or missing parts.
GigaBit SX/LX to TX Tap Product Diagrams LED Monitor A and B Ports Indicators TX Network A and B Ports SX A Network LINK A Monitor B 2 ACT www.netoptics.com A GigaBit Converter Tap B 1 B ACT LINK ACT LASER LINK CAUTION! Figure 1: CVT-SX/GCU Front Panel LED Monitor A and B Ports Indicators TX Network A and B Ports LX A Network LINK A Monitor B 2 ACT www.netoptics.
GigaBit SX/LX to TX Tap LED Indicators • PWR 1/ PWR 2: Main and Redundant Power. If the Tap is deployed with both power supplies, both LEDs illuminate when the Tap is plugged in. If an LED is off, this indicates that the corresponding power supply is not functioning. • Link/Activity Indicators: If a good link is established, the LED illuminates a steady green. If there is current activity on this link, the LED flashes.
GigaBit SX/LX to TX Tap Connecting to the Network 1. Connect Network Port A to the appropriate network device using a Duplex LC cable. 2. Connect Network Port B to the appropriate network device using a Duplex LC cable. 3. Verify that the Tap Network Ports are cabled in-line between two devices. Note:_________________________________________________________________ The use of Singlemode (8.5µm) or Multimode (50µm or 62.5µm) cabling is determined by the model purchased.
GigaBit SX/LX to TX Tap Connecting to the Monitoring Device 1. Supply power to the Tap using the two redundant power supplies included with the unit. Verify that the Power LED illuminates. 2. Connect Monitor Port A to the appropriate port on the monitoring device using a CAT5e straight-through cable. 3. Connect Monitor Port B to the appropriate port on the monitoring device using a CAT5e straight-through cable.
GigaBit SX/LX to TX Tap Specifications Environment Operating Temperature: 0˚C to 40˚C Operating Temperature: -10˚C to 70˚C Relative Humidity: 10% min, 95% max, non-condensing Power Power Supply Input: 100-240VAC, 0.5A, 47-63Hz Output: 12V 1.5A -48V Power Supply Input: -48V DC typical, -36V DC min, -75V DC max Mechanical Dimensions: 1.125” high x 6.5” deep x 4.
GigaBit SX/LX to TX Tap Connectors CVT-SXn/GCU model: (2) RJ45, 8-pin connectors (monitor ports) (2) Duplex LC Multimode connectors (network ports) CVT-LXn/GCU model: (2) RJ45, 8-pin connectors (monitor ports) (2) Duplex LC Singlemode connectors (network ports) Certifications Fully RoHS compliant 9
GigaBit SX/LX to TX Tap Limitations on Warranty and Liability Net Optics offers a limited warranty for all its products. IN NO EVENT SHALL NET OPTICS, INC. BE LIABLE FOR ANY DAMAGES INCURRED BY THE USE OF THE PRODUCTS (INCLUDING BOTH HARDWARE AND SOFTWARE) DESCRIBED IN THIS MANUAL, OR BY ANY DEFECT OR INACCURACY IN THIS MANUAL ITSELF.
www.netoptics.com © 2009 by Net Optics, Inc. All Rights Reserved.
