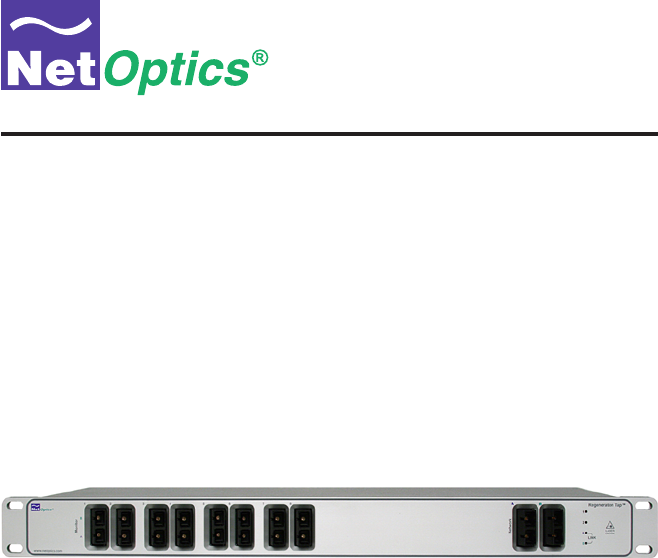

Installation Guide for 10 GigaBit In-Line Regeneration TapTM 800-0098-001 Doc. PUBRGNSRILU Rev.
10 GigaBit In-Line Regeneration Tap Contents Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Key Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10 GigaBit In-Line Regeneration Tap PLEASE READ THESE LEGAL NOTICES CAREFULLY. By using a Net Optics 10 GigaBit Regeneration Tap you agree to the terms and conditions of usage set forth by Net Optics, Inc. No licenses, express or implied, are granted with respect to any of the technology described in this manual. Net Optics retains all intellectual property rights associated with the technology described in this manual.
10 GigaBit In-Line Regeneration Tap Introduction Net Optics 10 GigaBit Regeneration Taps solve the key physical layer challenges of multi-device monitoring for 10 GigaBit fiber networks. For a complete picture of network health, these Taps connect multiple network management and security devices at any single 10 GigaBit network location.
10 GigaBit In-Line Regeneration Tap Key Features Passive Secure Technology • Optimized and tested for 10 GigaBit fiber networks with 50µm fiber • Enables real-time, simultaneous monitoring of a single 10 GigaBit link with multiple monitoring devices • Provides complete full-duplex visibility at 10 Gbps without data stream interference or introducing a point of failure • Passes all traffic (including errors) from all layers for comprehensive troubleshooting • No IP address is needed for the Tap or monitorin
10 GigaBit In-Line Regeneration Tap About This Guide Please read the guide before attempting to install 10 GigaBit Regeneration Tap.
10 GigaBit In-Line Regeneration Tap Product Diagrams 1 2 3 4 A B Regeneration Tap™ Network Monitor 1 B 2 LASER A A CAUTION! LINK B www.netoptics.com Figure 1: Front Panel 1 2 3 4 5 6 7 8 A B Regeneration Tap™ Network Monitor 1 B 2 LASER A A CAUTION! LINK B www.netoptics.
10 GigaBit In-Line Regeneration Tap Installing the 10 GigaBit Regeneration Tap The Regeneration has two network connectors are labeled A and B. Depending on your Tap model, there are either four or eight connectors for monitor devices. Warning: The intended use of this product is in systems that contain lasers. Use caution when handling unconnected fiber. DANGER: Invisible Laser Radiation when open or when operating with fiber disconnected. AVOID DIRECT EXPOSURE TO THE BEAM.
GigaBit In-Line Regeneration Tap Connecting to the Network 1. Obtain the correct singlemode (LR) or multimode (SR) cables according to the model of your Regeneration Tap. 2. Connect Network Port A to the appropriate switch, server or router device using a duplex SC fiber cable. 3. Connect Network Port B to the appropriate switch, server or router device using a duplex SC fiber cable. 4.
10 GigaBit In-Line Regeneration Tap Connecting to Monitoring Devices Using Net Optics Custom Monitoring Cable The Monitor Ports of the Regeneration Tap are transmit only. Connect the Monitor Ports to the receive side of two NICs on the monitoring device. Net Optics offers a custom “Y” cable with the correct connections for quick installation. The SC connectors on the Custom Monitor Cable contain Rx connections only. The Tx connectors do not have fiber and provide a safe cover for laser light.
10 GigaBit In-Line Regeneration Tap Connecting to Monitoring Devices Using Standard SC Fiber Cables If you did not purchase a Net Optics Custom Monitoring Cable, you can easily modify a standard fiber cable by splitting apart the connector on one side of the cable (see Figure 6). Warning: Uncovered connectors can emit dangerous laser light. Do not operate devices with uncovered connectors. To connect a standard monitoring cable: 1.
10 GigaBit In-Line Regeneration Tap 1 2 3 4 5 6 7 8 A B Regeneration Tap™ Network Monitor 1 B 2 LINK B www.netoptics.
10 GigaBit In-Line Regeneration Tap Troubleshooting Before contacting Net Optics Technical Support, perform the following checks. Problem Solution Power LEDs do not illuminate Check both power cord connections. Check both power sources for power. Link Status LEDs do not illuminate Check that you have connected the network devices correctly (see Figure 4, page 5). Verify that the TX and RX are not crossed on the network ports. Check that the connectors are clean and firmly seated.
10 GigaBit In-Line Regeneration Tap Specifications Environment Operating Temperature: 0˚C to 40˚C Storage Temperature: -10˚C to 70˚C Relative Humidity: 10% min, 95% max, non-condensing Power Power Supply Input: 100-240 VAC, 0.5A, 47-63Hz Mechanical Dimensions: 1.75” high x 10.5” deep x 19” wide Certifications Fully RoHS compliant Optical Interface Transceivers: Class I, eye-safe, laser emitter type.
10 GigaBit In-Line Regeneration Tap Connectors RGN-SR-IL-4 and RGN-50SR-IL-4 model: (4) Duplex SC Multimode connectors (monitor ports) (2) Duplex SC Multimode connectors (network ports) RGN-SR-IL-8 model: (8) Duplex SC Multimode connectors (monitor ports) (2) Duplex SC Multimode connectors (network ports) RGN-LR-IL-4 model: (4) Duplex SC Singlemode connectors (monitor ports) (2) Duplex SC Singlemode connectors (network ports) RGN-LR-IL-8 model: (8) Duplex SC Singlemode connectors (monitor ports) (2) Duplex
10 GigaBit In-Line Regeneration Tap 10 GigaBit Ethernet Connection Distances 10GB-SR (850 nm laser) Fiber Core Diameter Type Fiber Bandwidth Mhz/km Distance 62.5 µm Multimode 160 Mhz/km 26 m 62.5 µm Multimode 200 Mhz/km 33 m 50.0 µm Multimode 400 Mhz/km 66 m 50.0 µm Multimode 500 Mhz/km 83 m 50.0 µm Multimode 2007 Mhz/km 300 m 10GB-LR (1310 nm laser) Fiber Core Diameter Type Fiber Bandwidth Mhz/km Distance 8.
10 GigaBit In-Line Regeneration Tap Limitations on Warranty and Liability Net Optics offers a limited warranty for all its products. IN NO EVENT SHALL NET OPTICS, INC. BE LIABLE FOR ANY DAMAGES INCURRED BY THE USE OF THE PRODUCTS (INCLUDING BOTH HARDWARE AND SOFTWARE) DESCRIBED IN THIS MANUAL, OR BY ANY DEFECT OR INACCURACY IN THIS MANUAL ITSELF.
10 GigaBit In-Line Regeneration Tap 15
