R900 Wall and Pit MIU Installation and Maintenance Guide 27
Activating and Completing the Installation
1 Slide the tongue on the top of the MIU into the groove on the
top of the mounting adapter.
2 Secure the MIU to the mounting adapter using the set screw.
See
Figure 36.

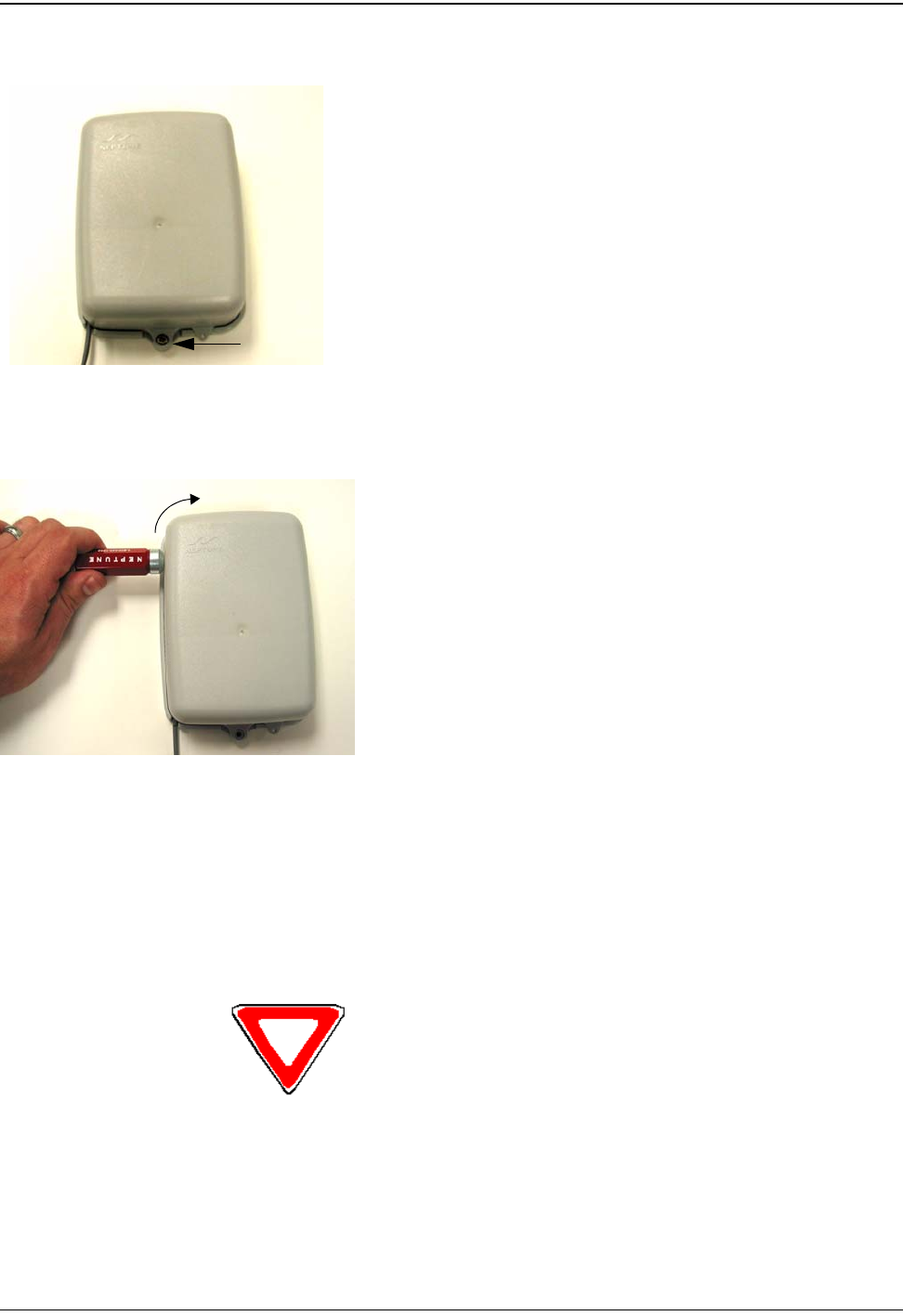

Figure 36 Securing Mounting Adapter
3 Position the magnet against the left side of the MIU directly in
line with the Neptune logo, as shown, and swipe it bringing it
from the side and around the corner to the top to activate the
MIU.
Figure 37 Activating the MIU
Testing the Installation
To test the installation, complete the following steps.
1 Power up the handheld unit (HH) test device and start the
testing programs provided.
2 When the MIU is installed correctly, its ID number(s) and a
meter reading(s) appear on the display of the HH. Verify the
correct meter reading(s) by comparing it to the meter’s dial. If
the readings are the same, proceed to the next section.
set screw
End swipe
here
To avoid RF signal saturation of the HH, do one of the following:
• Position yourself at least two to three feet from the MIU.
• Remove the antenna from the HH.
