Wall Installation
R900 Wall and Pit MIU Installation and Maintenance Guide 25
2Study Figure 32 and the location requirements, then decide
how to install the MIU and mount adapter with set screw posi-
tioned at bottom.

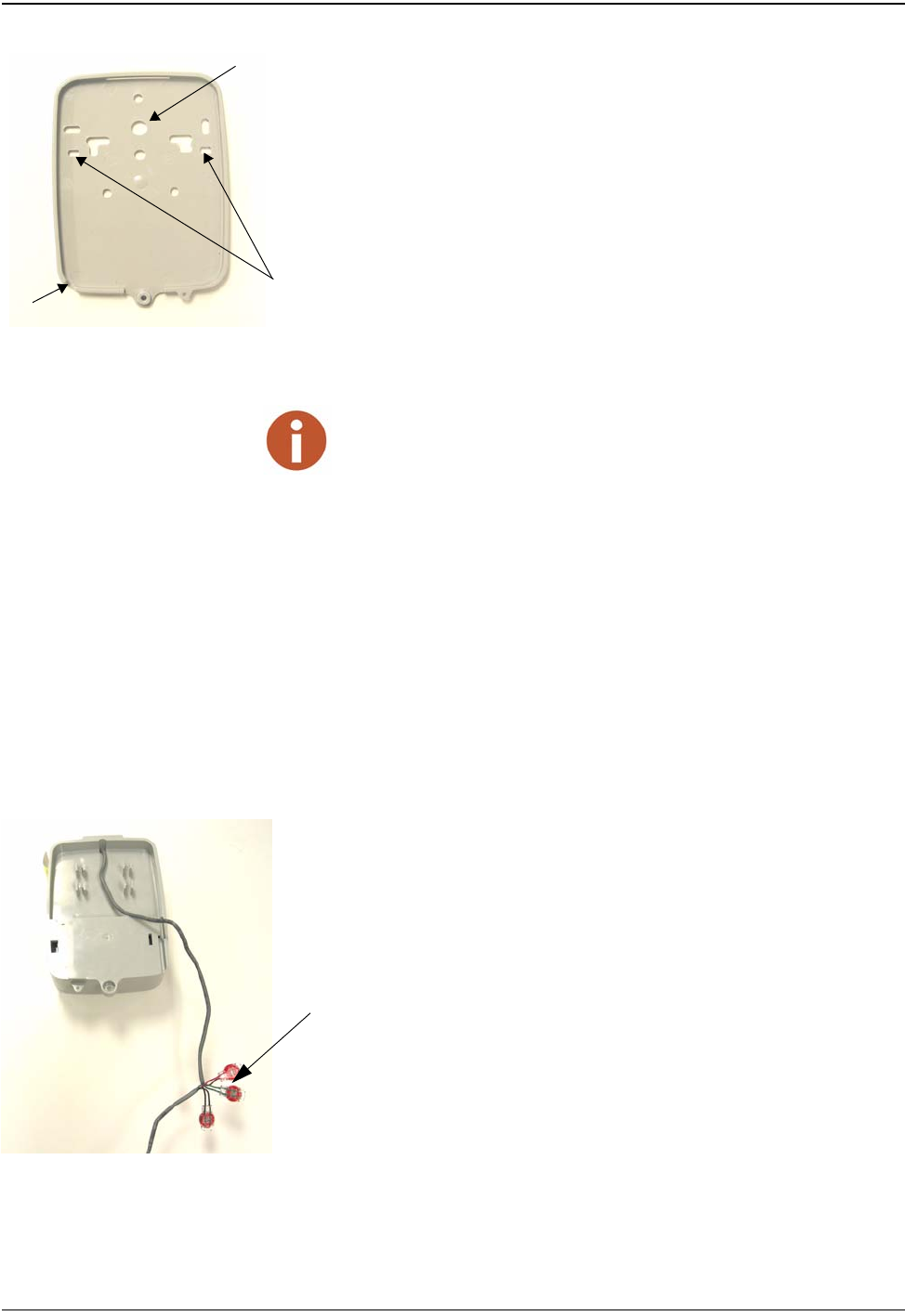

Figure 32 Mounting Adapter
• The cable enters through the bottom or rear cable
entry of the mounting adaptor.
• When the MIU replaces a receptacle, use the appro-
priate holes to allow reuse of the receptacle’s original
mounting holes. (See mounting hole configuration in
Figure 32.)
• When mounting the MIU to a pipe, use the bolt hole
for pipe mounting to bolt the mounting adapter to a
pipe clamp.
Applying the Scotchloks
1 Using Scotchlok Gel Caps, connect the register wires to the
pigtail from the MIU. (See
Figure 35.)
2 Pair the wires according to the color chart in Table 7.
Figure 33 Gel Cap Connections
cable exit notch
cable entry hole
pipe clamp
holes
A variety of holes in the mounting adapter allows for a quick and easy instal-
lation:
gel caps
