Connecting the Splice Tube
To complete the installation of the Scotchloks, complete the fol-
lowing steps to install the Connector King Splice Tube.
1 Take all 3 connected Scotchlok’s and push into the splice tube
until fully encapsulated by the silicone grease. (See Figure
Figure 26.)

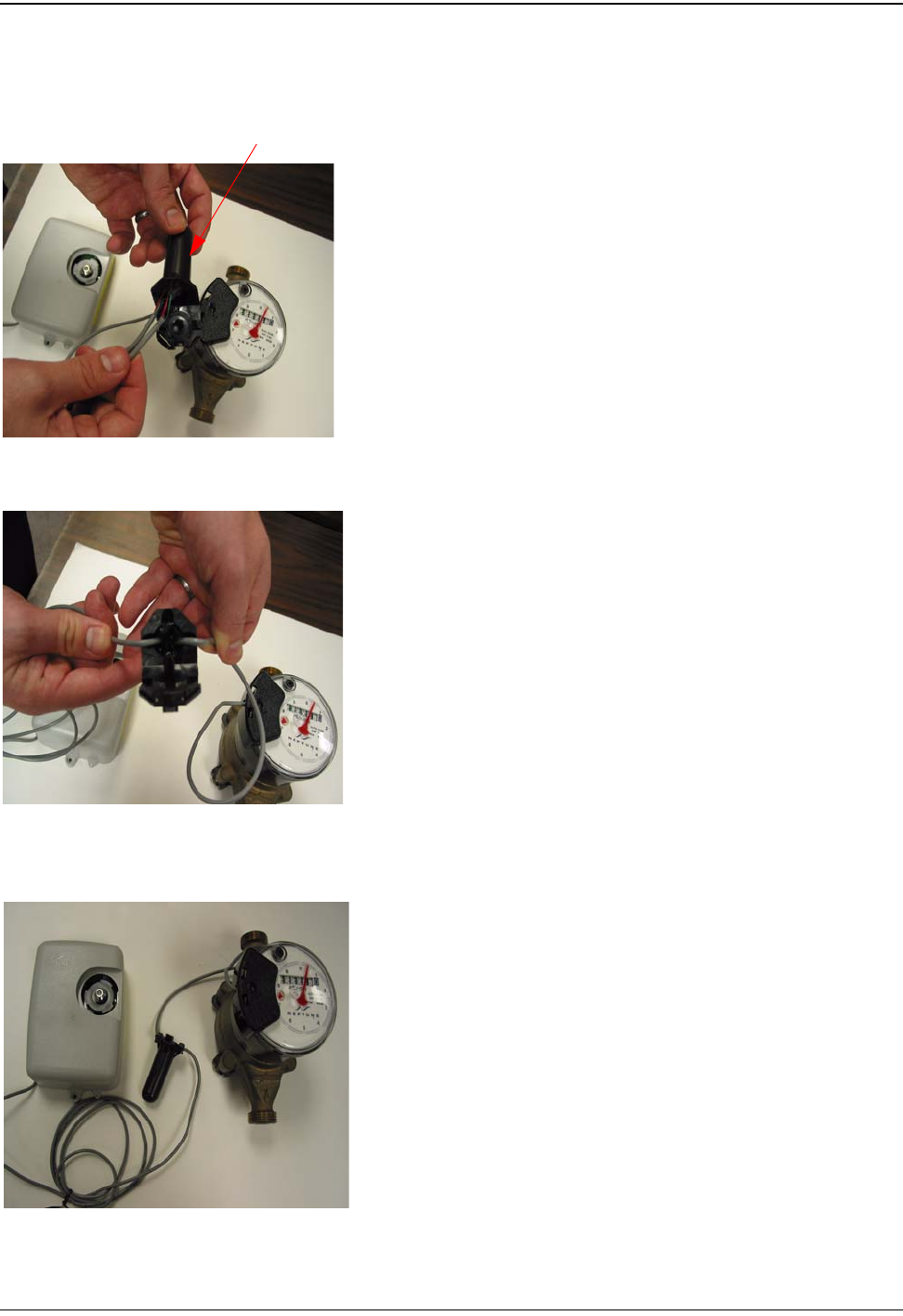

Figure 26 Splice Tube
2 Separate each gray wire and place in the slots on each side as
shown in
Figure 27.
Figure 27 Gray Wires in Slots
.
3 Snap cover closed to finish the installation as shown in
Figure 28.
Figure 28 Cover in Place
Splice Tube
