User's Manual

Pit Installation
16 R900 Wall and Pit MIU Installation and Maintenance Guide
4 Slide black plastic female threaded connector down the coax
cable.
5 Seat on top of cone-shaped rubber gasket and thread onto 3-
lobed plastic latch plate as shown in
Figure 18.
6 Finger tighten the connector to depress cone-shaped rubber
gasket. This seals the coax cable from moisture intrusion.

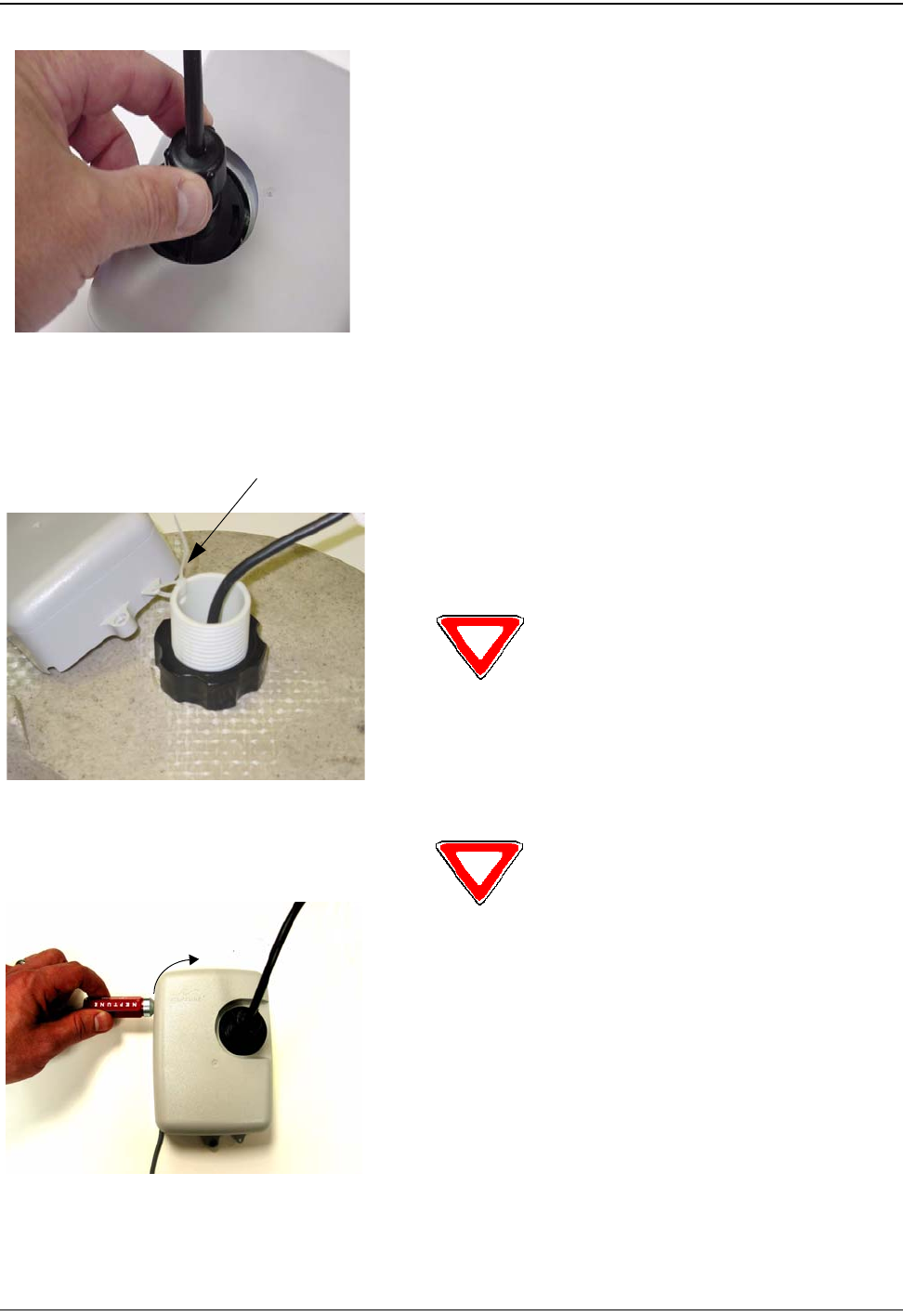

Figure 18 Black Cone-Shaped Gasket and Connector
Tying the Cable and Activiating the MIU
1 Place the MIU in place in the pit location, using the following
suggestions:
• In shallow pit application, you can place the MIU beside
the meter.
• In deep pit applications, use a cable tie to suspend the
MIU from the antenna shaft, as show in
Figure 19.
Figure 19 Attaching MIU to Antenna Shaft
2 Position the magnet against the left side of the MIU directly in
line with the Neptune logo, as shown, and swipe it bringing it
from the side and around the corner to the top to activate the
MIU. (See
Figure 20.)
3 Remove the “twisty tie” (wire tie) from the coiled ProRead
(ARB VI) encoder cable.
Figure 20 Activating the MIU
Be careful not to lodge the MIU
between the meter box and any
components inside the box.
-
cable tie
Make sure the MIU is placed in
such a way that it does not lodge
itself when the pit lit is removed.
End swipe
here
