Pit Installation
R900 Wall and Pit MIU Installation and Maintenance Guide 15
5 Place the flat black rubber washer around the male “F” con-
nector on the MIU as shown in Figure 15.

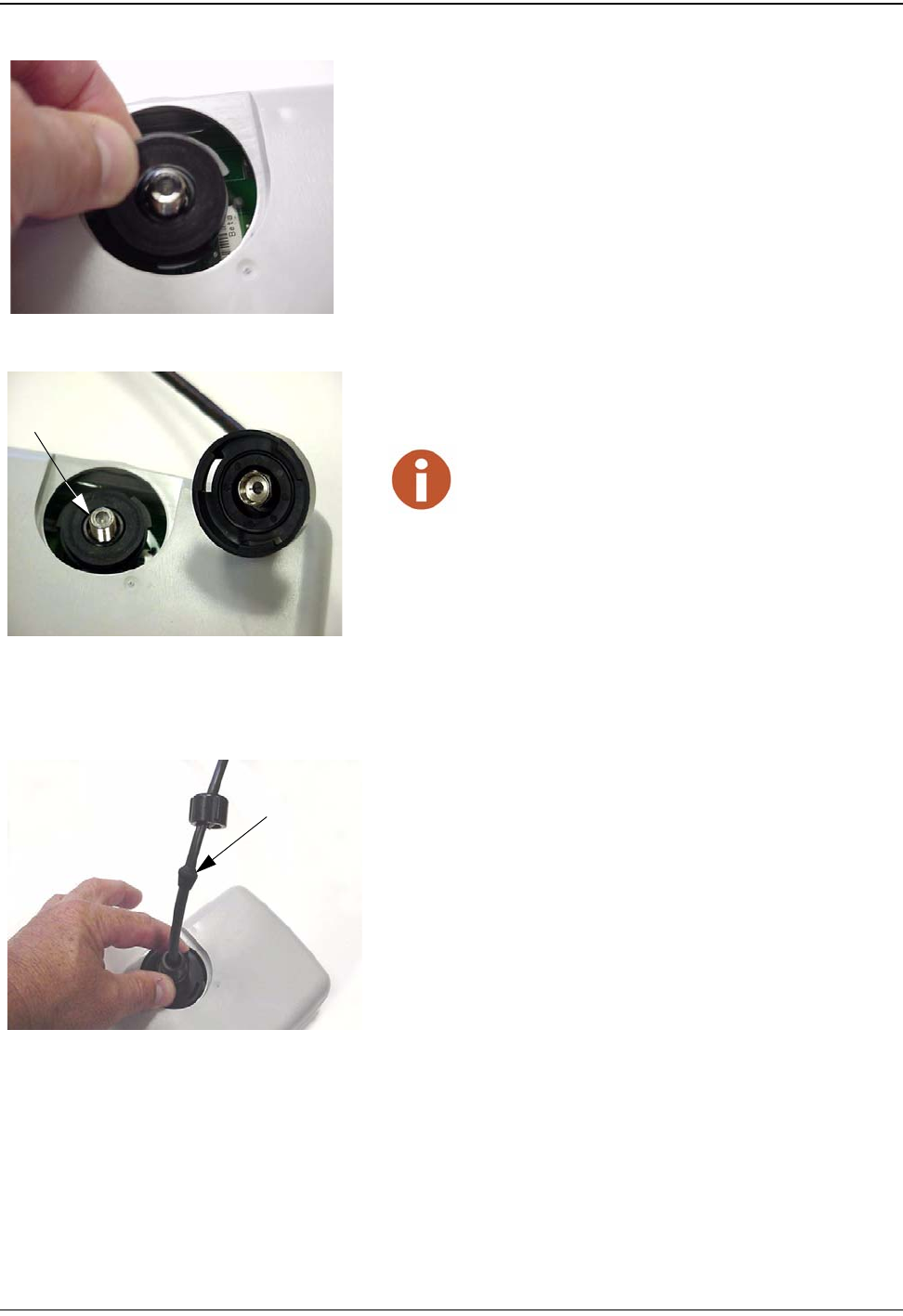

Figure 15 Seating Washer
6 Apply a coating of Novaguard around the base of the
“F” connector and on the flat rubber washer.
7 Thread the male “F” connector from the antenna cable onto
the female “F” connector on the MIU as shown in Figure 16.
The “F” connector should be hand-tightened. The torque
should not exceed 20 in./lb.
Figure 16 Connector Cables
Threading the F Connector
1 Making sure that the flat washer is properly seated, connect
the black plastic cable connector housing to the 3-lobed plas
-
tic latch plate.
2 Tighten the connector by making a 1/4 turn to the right as
shown in
Figure 18.
3 Slide the black cone-shaped gasket down the cable until it
seats against the connector housing.
Figure 17 Tightening Connector and Latchplate
Antenna connection should have Novagard applied inside
the connector.
Apply
Novagard
cone-shaped
gasket
