General Installation Guidelines
10 R900 Wall and Pit MIU Installation and Maintenance Guide
9 Snap the cover onto the encoder register (Figure 8).

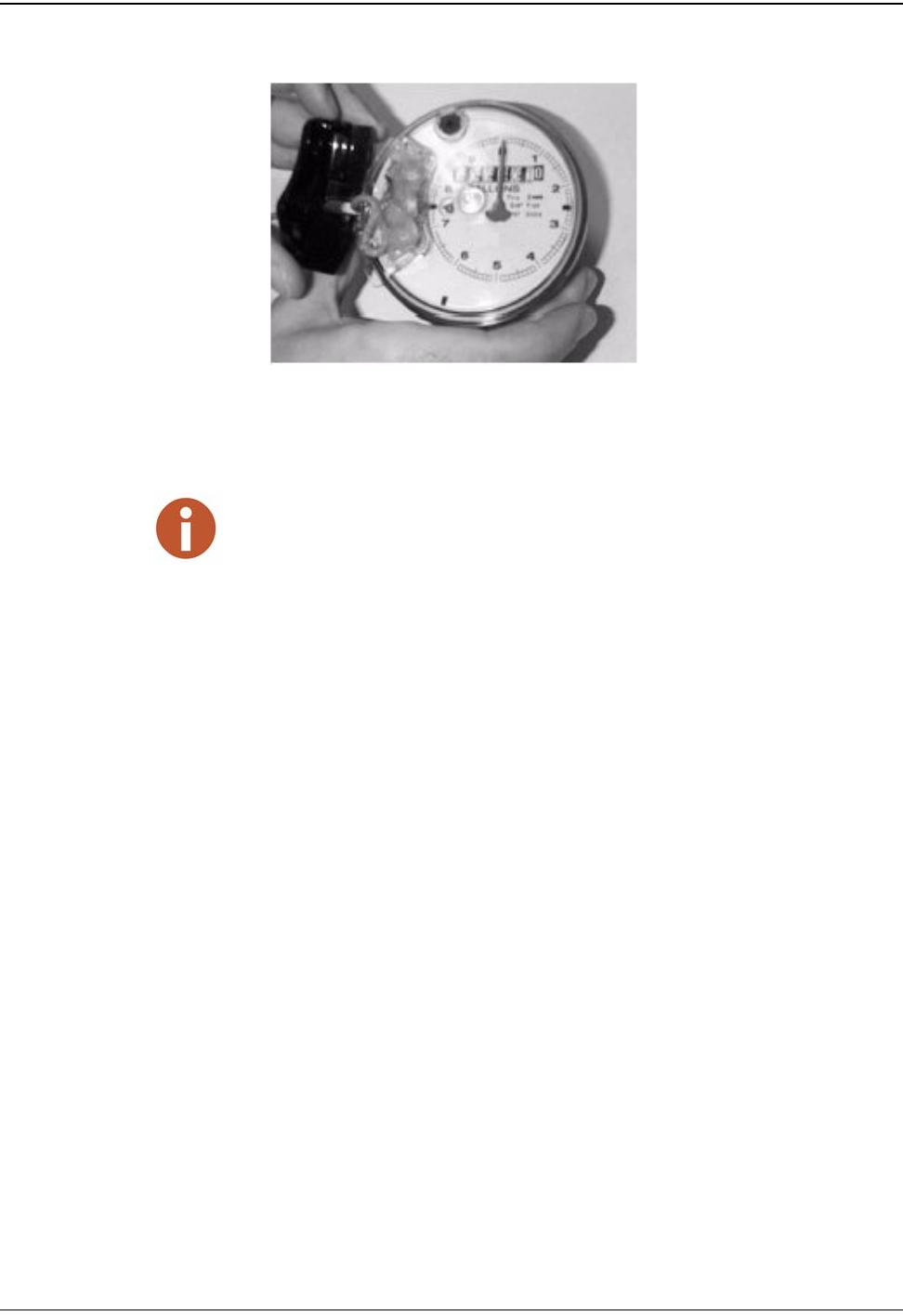

Figure 8 Covering the Terminal Screws
10 Run the cable to the MIU, fastening it securely as necessary.
11 If encoder register is pre-wired and potted, use Scotchloks for connecting
register to MIU as illustrated in
Figure 35 on page 26.
12 Proceed to the section specified for either Pit or Wall installation.
Do not exceed maximum cable lengths as defined in Table 4.
