LINESCAPES SYSTEM

NEMO STUDIO

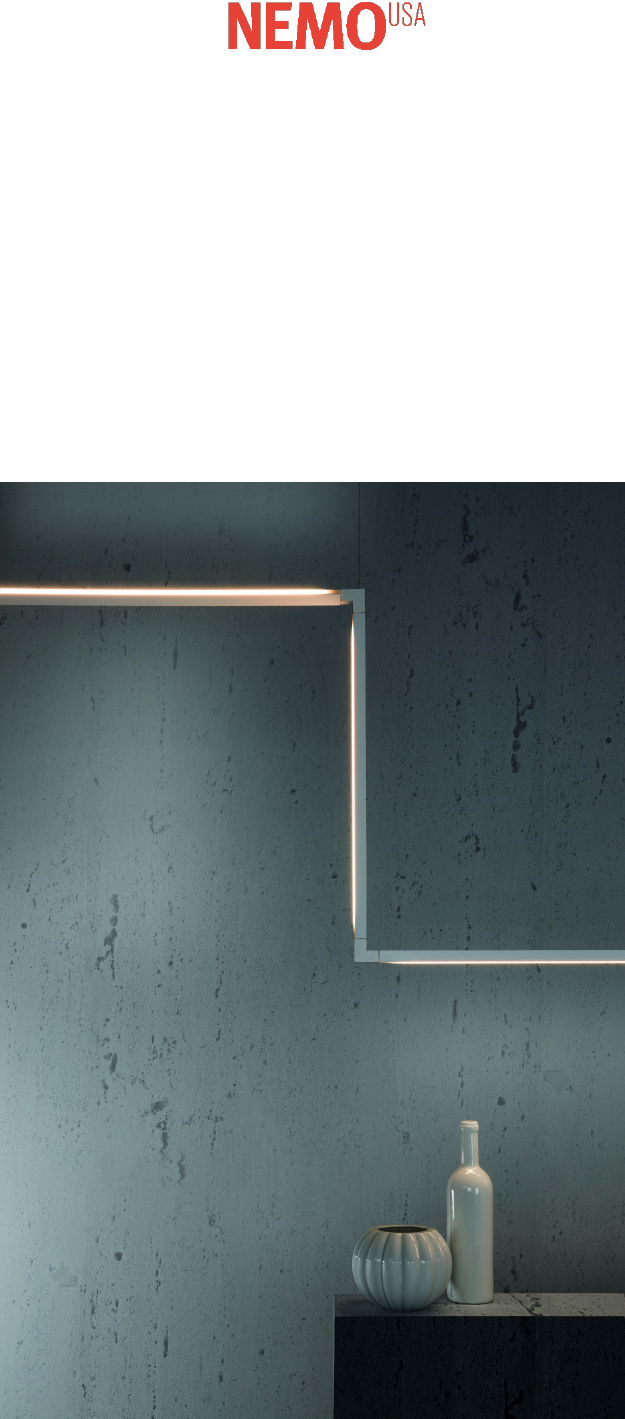

Linescapes is a modular system that is completely changing the approach to high performance diffused direct and

indirect lighting. The singular modules are connected by quick molded ABS connectors, which enable rapid jack

installation and a 360 degree rotation. The different elements allow the composition of continuous lines and edges, with

luminous efficiency and an excellent diffusion degree, through an opaline polycarbonate diffuser. The system has been

studied to provide user friendly maintenance. Nemo has efficiently solved the problem of replacing LED built-in sources,

whereby the singular lighting elements can be easily changed.

www.nemolighting.com Page 1

Summary of content (18 pages)

PAGE 1
LINESCAPES SYSTEM NEMO STUDIO Linescapes is a modular system that is completely changing the approach to high performance diffused direct and indirect lighting. The singular modules are connected by quick molded ABS connectors, which enable rapid jack installation and a 360 degree rotation. The different elements allow the composition of continuous lines and edges, with luminous efficiency and an excellent diffusion degree, through an opaline polycarbonate diffuser.
PAGE 2
LINESCAPES SYSTEM NEMO STUDIO L.14 LED LIGHTING BAR Lamping Source LINEAR LED Total power 7W Emission DIFFUSED, ORIENTABLE Tension 120V Color temperature 3000K Luminous flux 700lm Typ cri 83 Energy class A+ Ip class 20 Dimensions 0.8 X 0.8 X 14.2 Materials aluminum + PC + ABS Notes Cable length max 9.8’, square section 0.8”x0.8” Codes Structure LSS LW4 51 white Diffuser white LSS LN4 51 black white Net lamp weight 2 lbs Package 1 Dimensions 15.7 X 2 X 2 Gross weight 1.
PAGE 3
LINESCAPES SYSTEM NEMO STUDIO L.22 LED LIGHTING BAR Lamping Source LINEAR LED Total power 12W Emission DIFFUSED, ORIENTABLE Tension 120V Color temperature 3000K Luminous flux 1200lm Typ cri 83 Energy class A+ Ip class 20 Dimensions 0.8 X 0.8 X 22 Materials aluminum + PC + ABS Notes Cable length max 9.8’, square section 0.8”x0.8” Codes Structure LSS LW3 51 white Diffuser white LSS LN3 51 black white Net lamp weight 2.2 lbs Package 1 Dimensions 23.6 X 2 X 2 Gross weight 1.
PAGE 4
LINESCAPES SYSTEM NEMO STUDIO L.42 LED LIGHTING BAR Lamping Source LINEAR LED Total power 24W Emission DIFFUSED, ORIENTABLE Tension 120V Color temperature 3000K Luminous flux 2400lm Typ cri 83 Energy class A+ Ip class 20 Dimensions 0.8 X 0.8 X 41.7 Materials aluminum + PC + ABS Notes Cable length max 9.8’, square section 0.8”x0.8” Codes Structure LSS LW2 51 white Diffuser white LSS LN2 51 black white Net lamp weight 2.4 lbs Package 1 Dimensions 43.
PAGE 5
LINESCAPES SYSTEM NEMO STUDIO L.67 LIGHTING BAR Lamping Source LINEAR LED Total power 40W Emission DIFFUSED, ORIENTABLE Tension 120V Color temperature 3000K Luminous flux 3970lm Typ cri 83 Energy class A+ Ip class 20 Dimensions 0.8 X 0.8 X 66.9 Materials aluminum + PC + ABS Notes Cable length max 9.8’, square section 0.8”x0.8” Codes Structure LSS LW1 51 white Diffuser white LSS LN1 51 black white Net lamp weight 2.6 lbs Package 1 Dimensions 68.9 X 2 X 2 Gross weight 2.
PAGE 6
LINESCAPES SYSTEM NEMO STUDIO CEILING PLATE FOR RECESSED MOUNTING Lamping Tension 120V Ip class 20 Dimensions 3.9 X 3.9 Materials aluminum Notes driver not included, recessed hole min Ø3” max Ø3.5” x H min 1.6” Codes Structure LSS PWR 51 white LSS PNR 51 black Net lamp weight 1 lbs Diffuser Package 1 Dimensions 3.9 X 3.9 X 0.8 Gross weight 1.1 lbs www.nemolighting.
PAGE 7
LINESCAPES SYSTEM NEMO STUDIO CENTRAL Lamping Tension 120V Ip class 20 Dimensions 0.8 X 0.8 X 4.7 Materials PC + ABS Notes cable length max 9.8’, square section 0.8”x0.8” Codes Structure LSS CW5 51 white LSS CN5 51 black Net lamp weight 1 lbs Diffuser Package 1 Dimensions 3.9 X 3.9 X 0.8 Gross weight 1.1 lbs www.nemolighting.
PAGE 8
LINESCAPES SYSTEM NEMO STUDIO CENTRAL ONE WAY Lamping Tension 120V Ip class 20 Dimensions 0.8 X 0.8 X 4.7 Materials PC + ABS Notes cable length max 9.8’, square section 0.8”x0.8” Codes Structure LSS CW7 51 white LSS CN7 51 black Net lamp weight 1 lbs Diffuser Package 1 Dimensions 3.9 X 3.9 X 0.8 Gross weight 1.1 lbs www.nemolighting.
PAGE 9
LINESCAPES SYSTEM NEMO STUDIO CENTRAL SUPPLY Lamping Tension 120V Ip class 20 Dimensions 4.7 Materials PC + ABS Notes cable length max 9.8’, square section 0.8”x0.8” Codes Structure LSS CW4 51 white LSS CN4 51 black Net lamp weight 0.2 lbs Diffuser Package 1 Gross weight www.nemolighting.com 0.
PAGE 10
LINESCAPES SYSTEM NEMO STUDIO DOWN VERTICAL ANGLE Lamping Tension 120V Ip class 20 Dimensions 1.6 X 1.6 X 0.8 Materials PC + ABS Notes cable length max 9.8’, square section 0.8”x0.8” Codes Structure LSS AW2 51 white LSS AN2 51 black Net lamp weight 1 lbs Diffuser Package 1 Dimensions 3.9 X 3.9 X 0.8 Gross weight 1.1 lbs www.nemolighting.
PAGE 11
LINESCAPES SYSTEM NEMO STUDIO HORIZONTAL ANGLE Lamping Tension 120V Ip class 20 Dimensions 1.6 X 1.6 X 0.8 Materials PC + ABS Notes cable length max 9.8’, square section 0.8”x0.8” Codes Structure LSS AW3 51 white LSS AN3 51 black Net lamp weight 1 lbs Diffuser Package 1 Dimensions 3.9 X 3.9 X 0.8 Gross weight 1.1 lbs www.nemolighting.
PAGE 12
LINESCAPES SYSTEM NEMO STUDIO HORIZONTAL END Lamping Tension 120V Ip class 20 Dimensions 0.8 X 0.8 X 4.7 Materials PC + ABS Notes cable length max 9.8’, square section 0.8”x0.8” Codes Structure LSS CW3 51 white LSS CN3 51 black Net lamp weight 1 lbs Diffuser Package 1 Dimensions 3.9 X 3.9 X 0.8 Gross weight 1.1 lbs www.nemolighting.
PAGE 13
LINESCAPES SYSTEM NEMO STUDIO HORIZONTAL START Lamping Tension 120V Ip class 20 Dimensions 0.8 x 0.8 X 4.7 Materials PC + ABS Notes cable length max 9.8’, square section 0.8”x0.8” Codes Structure LSS CW2 51 white LSS CN2 51 black Net lamp weight 1 lbs Diffuser Package 1 Dimensions 3.9 X 3.9 X 0.8 Gross weight 1.1 lbs www.nemolighting.
PAGE 14
LINESCAPES SYSTEM NEMO STUDIO POWER SUPPLIES 60W 1-10V Lamping Total power 60W Switching dimmable, 1-10V Tension 120V Ip class 20 Dimensions 2 X 2 X 11.4 Materials aluminum Notes additional drivers available on the basis of a specific project Codes Structure LSS PW6 51 white LSS PN6 51 black Net lamp weight 1.1 lbs Diffuser Package 1 Dimensions 17.6 X 26.5 X 77 Gross weight 3.3 lbs www.nemolighting.
PAGE 15
LINESCAPES SYSTEM NEMO STUDIO POWER SUPPLIES 90W 1-10V Lamping Total power 90W Switching dimmable, 1-10V Tension 120V Ip class 20 Dimensions 2.5 X 2.4 X 9.8 Materials aluminum Notes additional drivers available on the basis of a specific project Codes Structure LSS PW9 51 white LSS PN9 51 black Net lamp weight 1.1 lbs Diffuser Package 1 Dimensions 17.6 X 26.5 X 77 Gross weight 3.3 lbs www.nemolighting.
PAGE 16
LINESCAPES SYSTEM NEMO STUDIO UP VERTICAL ANGLE Lamping Tension 120V Ip class 20 Dimensions 0.8 X 0.8 X 1.6 Materials PC + ABS Notes cable length max 9.8’, square section 0.8”x0.8” Codes Structure LSS AW1 51 white LSS AN1 51 black Net lamp weight 1 lbs Diffuser Package 1 Dimensions 3.9 X 3.9 X 0.8 Gross weight 1.1 lbs www.nemolighting.
PAGE 17
LINESCAPES SYSTEM NEMO STUDIO VERTICAL END Lamping Tension 120V Ip class 20 Dimensions 0.8 X 0.8 X 4.7 Materials PC + ABS Notes cable length max 9.8’, square section 0.8”x0.8” Codes Structure LSS CW6 51 white LSS CN6 51 black Net lamp weight 1 lbs Diffuser Package 1 Dimensions 3.9 X 3.9 X 0.8 Gross weight 1.1 lbs www.nemolighting.
PAGE 18
LINESCAPES SYSTEM NEMO STUDIO VERTICAL START Lamping Tension 120V Ip class 20 Dimensions 0.8 X 0.8 X 4.7 Materials PC + ABS Notes cable length max 9.8’, square section 0.8”x0.8” Codes Structure LSS CW1 51 white LSS CN1 51 black Net lamp weight 1 lbs Diffuser Package 1 Dimensions 3.9 X 3.9 X 0.8 Gross weight 1.1 lbs www.nemolighting.
