Instruction Manual

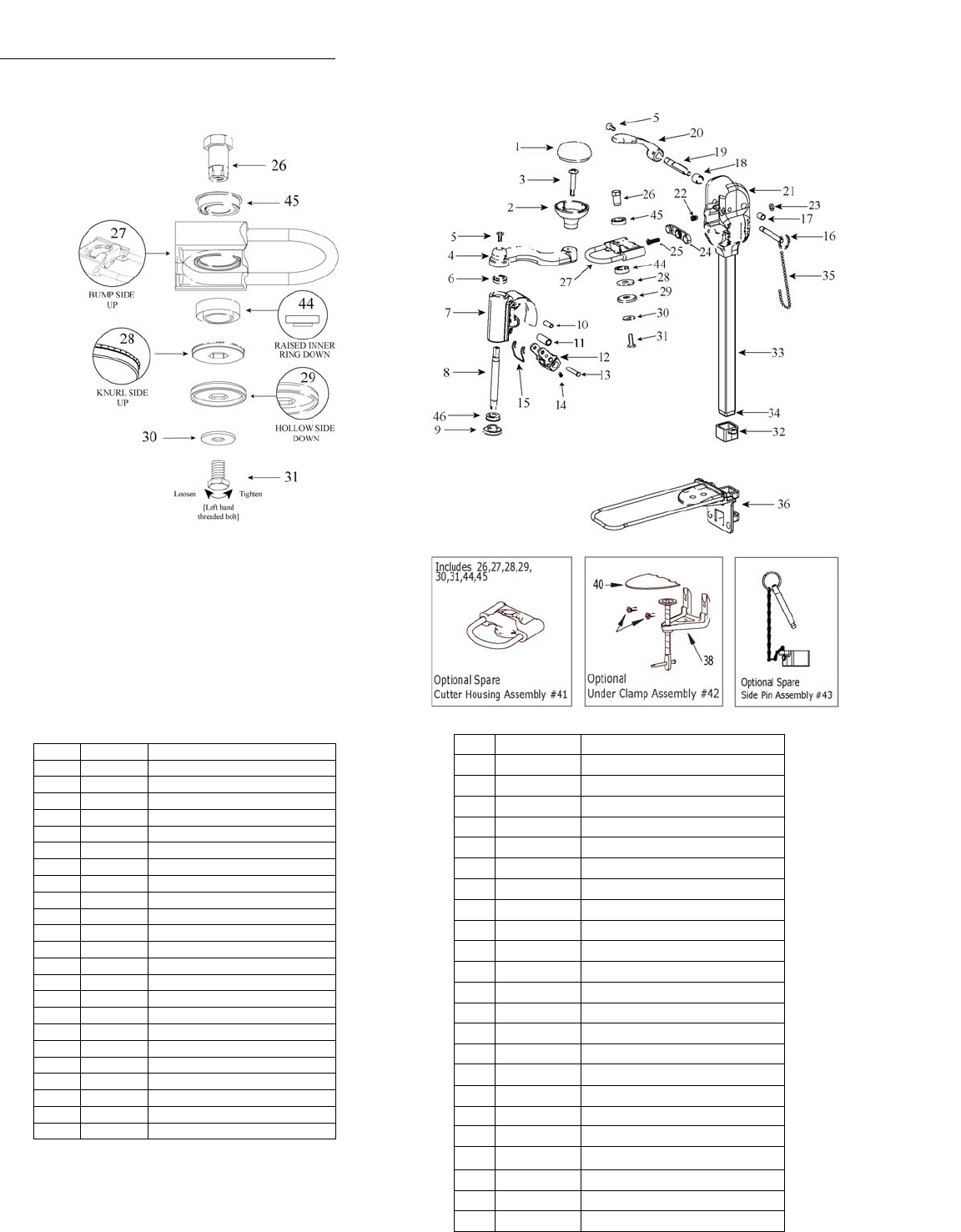

Replacing Cutter from Cutter Housing Assembly
1. Hold Cutter Shaft #26 with wrench and loosen Cutter Locking Bolt #31 (left hand thread) with another wrench by turning clockwise.
2. Remove Cutter Washer #30 and Cutter Spacer #29 and Cutter #28.
3. Replace with new Cutter.
4. Reverse steps 2 and 1 to re-assemble.
No. Part # Description
24 56052 Rubber Depth Control
25 56053 Adjusting Screw
26 56054 Cutter Shaft
27 56055 Cutter Housing
28 56029 Cutte
r
29 56024 Cutter Space
r
30 56056 Cutter Washe
r
31 56057 Cutter Locking Bolt
32 56058 Rubber Pipe Bumpe
r
33 56059 Square Pipe
34 56060 Plastic Pipe End
35 56043 Pin & Chain Assembl
y
36 56070
T
able Base Assembl
y
38 56063 Under Clamp
39 56064
T
able Base Screw
40 56065 Anti-Slip Rubber Pad
41 56022A Cutter Housing Assembl
y
42 56023 Under Clamp Assembl
y
43 56068 Side Pin Assembly
44 56027
A
-B Bottom Cutter Bearin
g
45 56027
A
-
T
T
op Cutter Bearin
g
46 56215 Gripper Bearin
g
No. Part # Description
1 56030
T
op Handle Knob Cove
r
2 56031
T
op Handle Knob
3 56032
T
op Handle Knob Screw
4 56033
T
op Handle
5 56034 Handle Screw
6 56027
T
op Handle Bearin
g
7 56035 Gripper Housin
g
8 56036 Gripper Shaft
9 56028 Grippe
r
10 56037 Bushing
11 56038 Bushing
12 56039 Locking Mechanism
13 56040 Locking Pin
14 56041 Allen Set Screw
15 56334 Gripper Housing Sprin
g
16 56026 Side Locking Pin
17 56044 Bushing
18 56045 Bushing
19 56046 Side Handle Shaft
20 56216 RH Side Handle
21 56048 Mechanism Housing
22 56049 Ball End Set Screw
23 56051 Adjusting Nut
CanPro Replacement Parts
Model Numbers : 56050- ( )
