Instruction Manual

There are several important general soldering considerations

• Recommended soldering profiles are designed to insure that the temperature of the internal construction of the

capacitors does not exceed +220°C.

• Positioning capacitors near components radiating heat such as power transistors should be avoided.

• Allow for an increase to ESR ratings of 1.25 x catalog limit post PCB assembly.

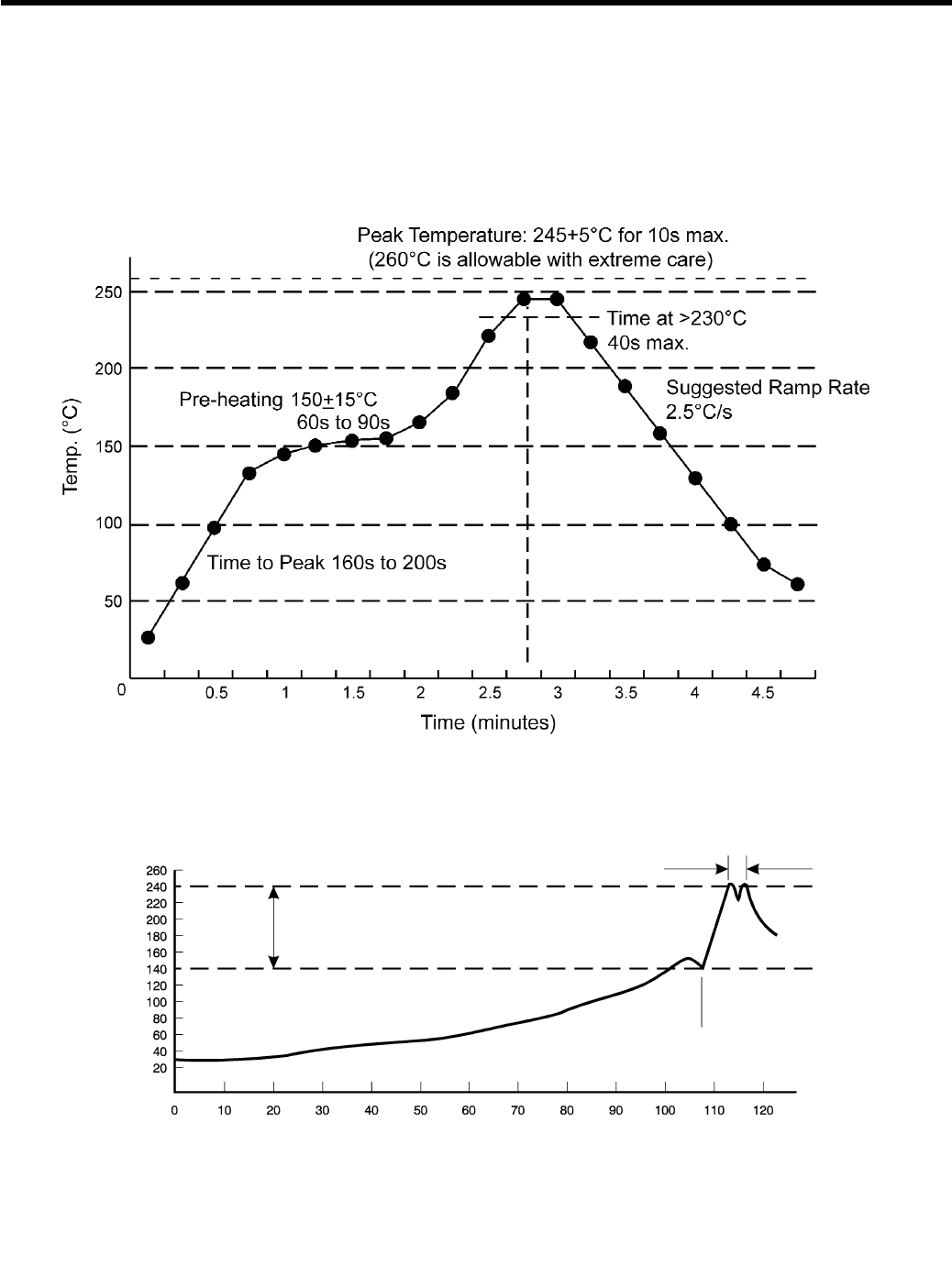

Recommended Reflow Profile for Pb Free Surface Mount Devices

Recommended Wave Soldering Profile for Leaded Dipped Tantalums

Low Profile

Soldering

nemco.

100°C - 150°C Max

3 - 5 seconds

Time (seconds)

Natural

Cooling

Enter Wave

Temperature °C

PAGE 1
nemco Low Profile Soldering . There are several important general soldering considerations • Recommended soldering profiles are designed to insure that the temperature of the internal construction of the capacitors does not exceed +220°C. • Positioning capacitors near components radiating heat such as power transistors should be avoided. • Allow for an increase to ESR ratings of 1.25 x catalog limit post PCB assembly.
PAGE 2
nemco Low Profile . Soldering Surface Mount Tantalum Soldering Tantalum capacitors are lead-free system compatible system components, meeting the requirements of J-STD-020 standard. Maximum peak temperature 260°C for 10 seconds maximum, 3 reflow cycles. See further details below. There are several important general soldering considerations for tantalum capacitors. • Soldering temperature and time should be the minimum for a good connection.
PAGE 3
nemco Low Profile Recommended Reflow Pad Design . PW PL PS PSL Nemco Series MCT CGT PCT LSR Pad Dimensions mm (inches) Case Size EIA IECQ Pad Layout PSL PL PS PW P (0402) 1005-07 2.2 (0.087) 0.9 (0.039) 0.4 (0.016) 0.7 (0.028) R (0603) 1608-10 2.8 (0.110) 1.1 (0.043) 0.6 (0.024) 1.0 (0.039) XL (0805) 2012-12 2.7 (0.106) 1.0 (0.039) 0.8 (0.031) 1.6 (0.063) A (1206) 3216-18 3.8 (0.150) 1.4 (0.055) 1.0 (0.039) 1.8 (0.071) AL (1206) 3216-12 3.8 (0.150) 1.4 (0.055) 1.
