7. Appendix

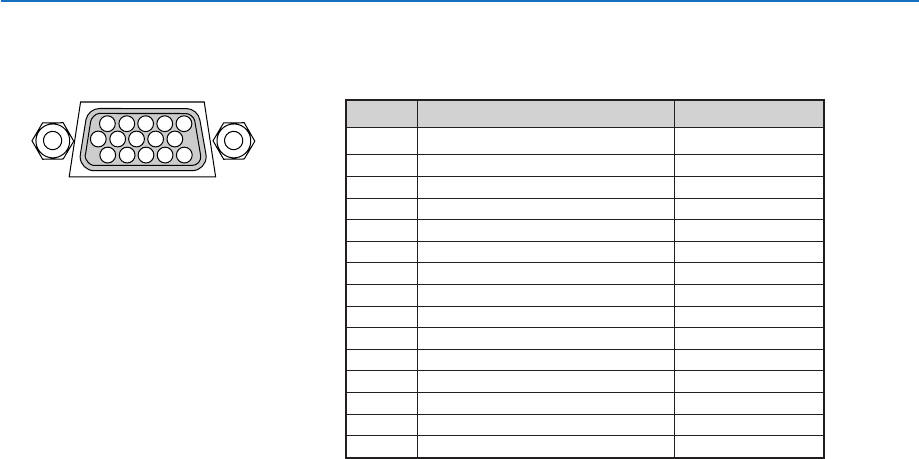

Mini D-Sub 15 Pin Connector
Pin Assignments of D-Sub COMPUTER Input Connector
Signal Level
Video signal : 0.7Vp-p (Analog)
Sync signal : TTL level
51423
10
11 12 13 14 15
6978
PinNo. RGBSignal(Analog) YCbCrSignal
1 Red Cr
2 Green or Sync on Green Y
3 Blue Cb
4 Ground
5 Ground
6 RedGround CrGround
7 Green Ground Y Ground
8 Blue Ground Cb Ground
9 No Connection
10 Sync Signal Ground
11 No Connection
12 Bi-directional DATA (SDA)
13
HorizontalSyncorCompositeSync
14 Vertical Sync
15 Data Clock
