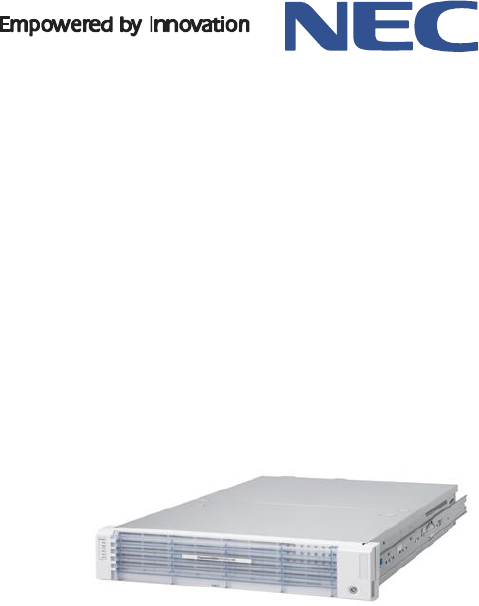

NEC Express5800/R120d-2M Configuration Guide Introduction This document contains product and configuration information that will enable you to configure your system. The guide will ensure fast and proper configuration of your NEC EXPRESS5800 server. March 2012 Revision 1.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M Contents TECHNICAL SPECIFICATION ........................................................................................ 3 Key Features .......................................................................................................................................... 3 Specification .......................................................................................................................................... 3 EXTERNAL VIEWS ...............
CONFIGURATION GUIDE – NEC Express5800/R120d-2M Technical Specification Key Features High performance with the latest Intel® Xeon® processor E5-2600 product family Up to 768 GB of high speed DDR3-1333 memory High energy efficiency with power capping feature and 80 PLUS® Platinum power supply Full manageability by integrated EXPRESSSCOPE Engine 3 Specification (1 / 2) Model Part Number Processor R120d-2M Type Clock speed Number of Processors Cache Cores and Threads Chipset Memory Type Standard
CONFIGURATION GUIDE – NEC Express5800/R120d-2M Model Expansion Slots [free] (Cont.) R120d-2M Optional Riser Card (N8115-25) Optional Riser Card (N8116-26) Optional Riser Card (PCI) Video Controller (VRAM) Resolution / Color Interfaces Server Management Redundant Fan Redundant Power Supply Power Supply Power Consumption (Max. Config, Idling) (Max. Config, Operating) Acoustical Noise Max. Config, Idling (Sound Pressure Max.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 1 2 3 4 5 6 7 An optional drive cage is required to install more than 8 hard drives. Available only when the second processor is configured. Maximum resolution available via EXPRESSSCOPE Engine 3 remote console is 1280 x 1024 / 65K colors. Noise emission was measured in accordance with ISO 7779. The actual value may vary by the operating environment. When mounting 1000 Watt power supply, the depth is 770 mm (30.31 in).
CONFIGURATION GUIDE – NEC Express5800/R120d-2M Model Expansion Slots [free] (Cont.) R120d-2M Optional Riser Card (N8116-26) Optional Riser Card (PCI) Video Controller (VRAM) Resolution / Color Interfaces Server Management Redundant Fan Redundant Power Supply Power Supply Power Consumption (Max. Config, Idling) (Max. Config, Operating) Acoustical Noise Max. Config, Idling (Sound Pressure Max.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 6 7 Operable up to 35°C (95°F) when Xeon processor E5-2690 is configured with an added optional drive cage. For Linux support, contact our sales representative or go to the NEC website at: http://www.nec.com/global/prod/express/linux/index.html NEC Corporation Revision 1.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M External Views Front and Rear Views Front View C A D F H JK L M N O B EG I P Q R Legend A. B. C. D. E. F. G. H. I. 2.5-inch Drive Bays 2.5-inch Drive Cage Bay USB Connectors Data LAN 1 Activity LED Data LAN 2 Activity LED Data LAN 3 Activity LED Data LAN 4 Activity LED Hard Drive Activity LED System Status LED NEC Corporation J. K. L. M. N. O. P. Q. R.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M Rear View A C D E F G H I B J K LM N O Legend A. B. C. D. E. F. G. H. PCI Slots (Full-Height) PCI Slots (Low-Profile) Power Supply AC Inlet AC Power LED USB Connectors Data LAN Connectors Management LAN Connector NEC Corporation I. J. K. L. M. N. O. Serial Port Connector VGA Connector Dump (NMI) Switch UID Button/LED DC Power LED PCI Slot (LAN Riser) Additional Power Supply Slot Revision 1.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M Dimensions (mm) 450 Watt or 800 Watt Power Supply Configuration 869.9 735.8 87.2 482.0 448.0 35.0 88.0 482.0 87.4 831.9 * 1000 Watt Power Supply Configuration 869.9 735.8 87.2 NEC Corporation Revision 1.0, March 2012 482.0 88.0 482.0 87.4 831.9 * 770.0 448.0 35.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M Configuration Diagram CHASSIS REAR Processor #2 6 DIMM Slots Minimum required components Revision 1.0, March 2012 4 RAID BBU Slots NEC Corporation 2 DIMM Slots 6 DIMM Slots 6 DIMM Slots Cooling Fan Legend: Cooling Fan Optical Drive Bay Media Bay Optical Drive Bay / Media Bay Redundant Cooling Fan 8 2.5-inch Drives 2.5-inch Drive Cage LAN Slot LAN Processor #1 PCIe 3.0 PCI Riser PCIe 3.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M Server Configuration 1 Base Models Product Name / Description Part Number NEC Express5800/R120d-2M Server no processor, no RAM, no HDD, no ODD, no PSU, no front bezel Including: 2.5-inch HDD Cage, EXPRESSBUILDER DVD N8100-1793F NOTE: The base model must be ordered with a processor kit.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 3 Memory 3.1 Memory Configuration Refer to the section in accordance with your memory configuration: Independent Channel: Refer to 3.1.1 Memory Sparing Configuration: Refer to 3.1.2 Memory Mirroring / Memory Lockstep Configuration: Refer to 3.1.3 3.1.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 3.1.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M Memory Configuration Feature Comparison See the table below for feature comparisons of memory configurations supported.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M Maximum Available Memory See the table below for the maximum memory size that you can actually use on your system. The maximum available memory is less than the maximum physical memory supported by your system because some chipsets require PCI resource space of about 750MB. PCI resource requirements vary depending on the type and the number of PCI cards you are using.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 4 Internal Hard Disk Drives 4.1 RAID Configuration Refer to the section in accordance with your disk form factor and RAID configuration. Up to eight 2.5-inch Drives Available Interface Non-RAID Refer to 4.2.1 SATA RAID 0/1/10 512MB Cache Refer to 4.2.2 SAS, SATA RAID 5/6/50/60 512MB Cache Refer to 4.2.3 SAS, SATA 1GB Cache Refer to 4.2.4 SAS, SATA Up to sixteen 2.5-inch Drives Available Interface RAID 0/1/10 512MB Cache Refer to 4.2.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 4.2 Internal Drive Configuration 4.2.1 Up to four Drives with Embedded SATA Controller Category Product Name / Description Part Number Storage Controller Embedded SATA Controller 4 x SATA ports Internal SATA Cable 1 x mini-SAS to 1 x mini-SAS 2.5-inch HDD Cage 8 x 2.5-inch Hot-plug hard drive bays 250GB 7.2K Hot Plug 2.5-inch SATA HDD 1 x 250 GB SATA HDD, 2.5-inch, 6Gb/s, 7,200 rpm 500GB 7.2K Hot Plug 2.5-inch SATA HDD 1 x 500 GB SATA HDD, 2.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 4.2.2 Up to eight Drives with RAID 0/1 Controller with 512 MB Cache Category Product Name / Description Part Number Storage Controller Required RAID Controller (512MB, RAID 0/1) LSI MegaRAID SAS 9267-8i RAID 0/1/10, 512 MB, Int. 8, PCIe 2.0 x8, SAS 6Gb/s, SATA 6Gb/s RAID Battery Backup Unit for LSI MegaRAID SAS 9267-8i Internal SAS/SATA Cable 1 x mini-SAS to 1 x mini-SAS, 2 sets 2.5-inch HDD Cage 8 x 2.5-inch hot plug drive bays 300GB 10K Hot Plug 2.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 4.2.3 Up to eight Drives with RAID 5/6 Controller with 512 MB Cache Category Product Name / Description Part Number Storage Controller Required RAID Controller (512MB, RAID 0/1) LSI MegaRAID SAS 9267-8i RAID0/1/5/6/10/50/60, 512 MB, Int. 8, PCIe 2.0 x8, SAS 6Gb/s, SATA 6Gb/s RAID Battery Backup Unit for LSI MegaRAID SAS 9267-8i Internal SAS/SATA Cable 1 x mini-SAS to 1 x mini-SAS, 2 sets 2.5-inch HDD Cage 8 x 2.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 4.2.4 Up to eight Drives with RAID 5/6 Controller with 1 GB Cache Category Product Name / Description Part Number Storage Controller Required RAID Controller (1GB, RAID 0/1/5/6) LSI MegaRAID SAS 9267-8i RAID0/1/5/6/10/50/60, 1 GB, Int. 8, PCIe 2.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 4.2.5 Up to sixteen Drives with RAID 0/1 Controller with 512 MB Cache Category Product Name / Description Part Number Storage Controller Required RAID Controller (512MB, RAID 0/1) LSI MegaRAID SAS 9267-8i RAID 0/1/10, 512MB, Int. 8, PCIe 2.0 x8, SAS 6Gb/s, SATA 6Gb/s RAID Battery Backup Unit for LSI MegaRAID SAS 9267-8i Internal SAS/SATA Cable 1 x mini-SAS to 1 x mini-SAS, 6 sets 2.5-inch HDD Cage 8 x 2.5-inch hot plug drive bays 2.5-Inch HDD Cage 8 x 2.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 4.2.6 Up to sixteen Drives with RAID 5/6 Controller with 512 MB Cache Category Product Name / Description Part Number Storage Controller Required RAID Controller (512MB, RAID 0/1/5/6) LSI MegaRAID SAS 9267-8i RAID0/1/5/6/10/50/60, 512MB, Int. 8, PCIe 2.0 x8, SAS 6Gb/s, SATA 6Gb/s RAID Battery Backup Unit for LSI MegaRAID SAS 9267-8i Internal SAS/SATA Cable 1 x mini-SAS to 1 x mini-SAS, 6 sets 2.5-inch HDD Cage 8 x 2.5-inch hot plug drive bays 2.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 4.2.7 Up to sixteen Drives with RAID 5/6 Controller with 1 GB Cache Category Product Name / Description Part Number Storage Controller Required RAID Controller (512MB, RAID0/1/5/6) LSI MegaRAID SAS 9267-8i RAID 0/1/5/6/10/50/60, 1 GB, Int. 8, PCIe 2.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M It is recommended to set RAID array configuration drives less than eight in order to minimize the risk of becoming multiple hard drives failure. Please download RAID controller driver from the web to install Windows Server 2003 R2 in the configuration. http://www.nec.com/en/global/prod/express/download/index.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 7 PCI Riser Card / PCI Card Please refer to Supporting PCI Cards and Installable Slots with regard to the position of PCI slot which can mount PCI card supported. 7.1 PCI Riser Card Product Name / Description Part Number PCIe Riser Card Kit 2 x PCIe 3.0 x8 PCIe x16 Riser Card Kit 1 x PCIe 3.0 x16 PCI-X Riser Card Kit 1 x 64-bit/133 MHz PCI-X, 1x PCIe 3.0 x8 PCI Riser Card Kit 2x 64-bit/33 MHz PCI (5V) NOTE: The riser card is make-to-order product.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 7.4 LAN Controller Category Riser GbE 10GbE Adapter GbE 10GbE SPF+ Module NEC Corporation Product Name / Description Part Number Dual Port 1000BASE-T Riser Card Broadcom® BCM5718 Gigabit Ethernet Controller PCIe 2.0 x8 Dual Port 10GBASE SFP+ Riser Card Broadcom® BCM57810 Converged Controller PCIe 3.0 x8 NOTE: - N8104-129 SFP+ Module is required to connect with an optical cable. - Up to two SFP+ Modules can be installed.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M Teaming feature - Teaming and bonding features See the table below for supported network interfaces and OS combinations. Windows supports BASP (Broadcom Advanced Server Program) teaming while Linux supports teaming with bonding function supported by OS.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 7.5 External Storage Controller 7.5.1 RAID Controller Category Product Name / Description Part Number Controller RAID Controller (512MB, RAID0/1/5/6) LSI MegaRAID SAS 9285-8e RAID0/1/5/6/10/50/60, 1GB, Ext. 8, PCIe 2.0 x8, SAS 6Gb/s, SATA 6Gb/s, LP / FH, Max.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 8 Other Add-in Components 8.1 Power Supply Module Product Name / Description Part Number 450W Hot Plug Power Supply 1 x 450 Watt 80 PLUS® Platinum 800W Hot Plug Power Supply 1 x 800 Watt 80 PLUS® Platinum 1000W Hot Plug Power Supply 1 x 800 Watt 80 PLUS® Platinum N8181-86F N8181-87F N8181-88F NOTE: The power units must be the same to configure redundancy. Use the NEC Power Supply Selector to select appropriate size for power units.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 8.5 Flash FDD Choose the Flash FDD if you need to prepare an alternative device for a floppy drive. Product Name / Description Part Number Flash FDD USB flash emulating USB floppy disk, Native capacity 1.44 MB N8160-86 8.6 Front Bezel Product Name / Description Part Number Front Bezel Front bezel for R120d-2M N8146-26F 9 Add-on Components 9.1 17-inch LCD Console Drawer Category Drawer Drawer w/ KVM Cable Drawer Drawer w/o KVM 9.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M 9.2 Server Management License The server integrates the EXPRESSSCOPE Engine 3 as standard. Refer to Server Management for the standard management features. For more extensive remote KVM and remote media features, choose the following kit. Product Name / Description Part Number Remote KVM and Media License Kit N8115-04 License for one server. Remote KVM and remote media are enabled regardless of OS status.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M References Server Management The EXPRESSSCOPE Engine 3, integrated into the server, provides superior remote control and system management features listed in the table below.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M OS Support Matrix for PCI Cards ESXi 5.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M Supporting PCI Cards and Installable Slots Standard Riser Card Part Number N8103-149 N8103-150 N8103-151 N8103-160 N8103-104A N8103-142 N8190-153 N8190-154 N8104-135 N8104-138 N8104-132 N8104-133 N8104-137 N8104-128 N8104-131 N8117-01A 1 2 3 Product Name Slots Slot # : PCI Slot: Card height: Slot type: Installable card length (mm) : RAID Controller (512 MB, RAID 0/1) [PCIe 2.0 x8] RAID Controller (512 MB, RAID 0/1/5/6) [PCIe 2.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M N8116-25 PCIe x16 Riser Card Kit Part Number N8103-149 N8103-150 N8103-151 N8103-160 N8103-104A N8103-142 N8190-153 N8190-154 N8104-135 N8104-138 N8104-132 N8104-133 N8104-137 N8104-128 N8104-131 N8117-01A 1 2 3 Product Name Slots #1B x16 FH x16 312 2 - #1C x4 LP x8 220 - #2C x4 LP x8 220 - #3C 1 x8 FH x16 220 - #1D x8 x8 - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
CONFIGURATION GUIDE – NEC Express5800/R120d-2M N8116-26 PCI-X Riser Card Kit Part Number N8103-149 N8103-150 N8103-151 N8103-160 N8103-104A N8103-142 N8190-153 N8190-154 N8104-135 N8104-138 N8104-132 N8104-133 N8104-137 N8104-128 N8104-131 N8117-01A 1 2 3 Product Name Slots #1B #2B x8 64-bit FH FH x16 3.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M N8116-27 64-bit PCI Riser Card Kit Part Number N8103-149 N8103-150 N8103-151 N8103-160 N8103-104A N8103-142 N8190-153 N8190-154 N8104-135 N8104-138 N8104-132 N8104-133 N8104-137 N8104-128 N8104-131 N8117-01A 1 2 3 Product Name Slots #1B #2B 64-bit 64-bit FH FH 5V 5V 312 2 312 - #1C x8 LP x8 167 - #2C x4 LP x8 167 - #3C 1 x4 LP x8 167 - #1D x8 x8 - - - - - - - - - - - - - - - - - - - - - - - - -
CONFIGURATION GUIDE – NEC Express5800/R120d-2M Copyright Notice and Liability Disclaimer The information contained herein is subject to change without notice. Microsoft and Windows Server are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries Intel and Xeon are registered trademarks or trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Linux is a trademark of Linus Torvalds.
CONFIGURATION GUIDE – NEC Express5800/R120d-2M Revision History Revision Date Description 1.0 March 30, 2012 Initial release NEC Corporation Revision 1.
