CONFIGURATION GUIDE – NEC EXPRESS5800/R120b-2
NEC Corporation Revision 5.2, September 2011 11

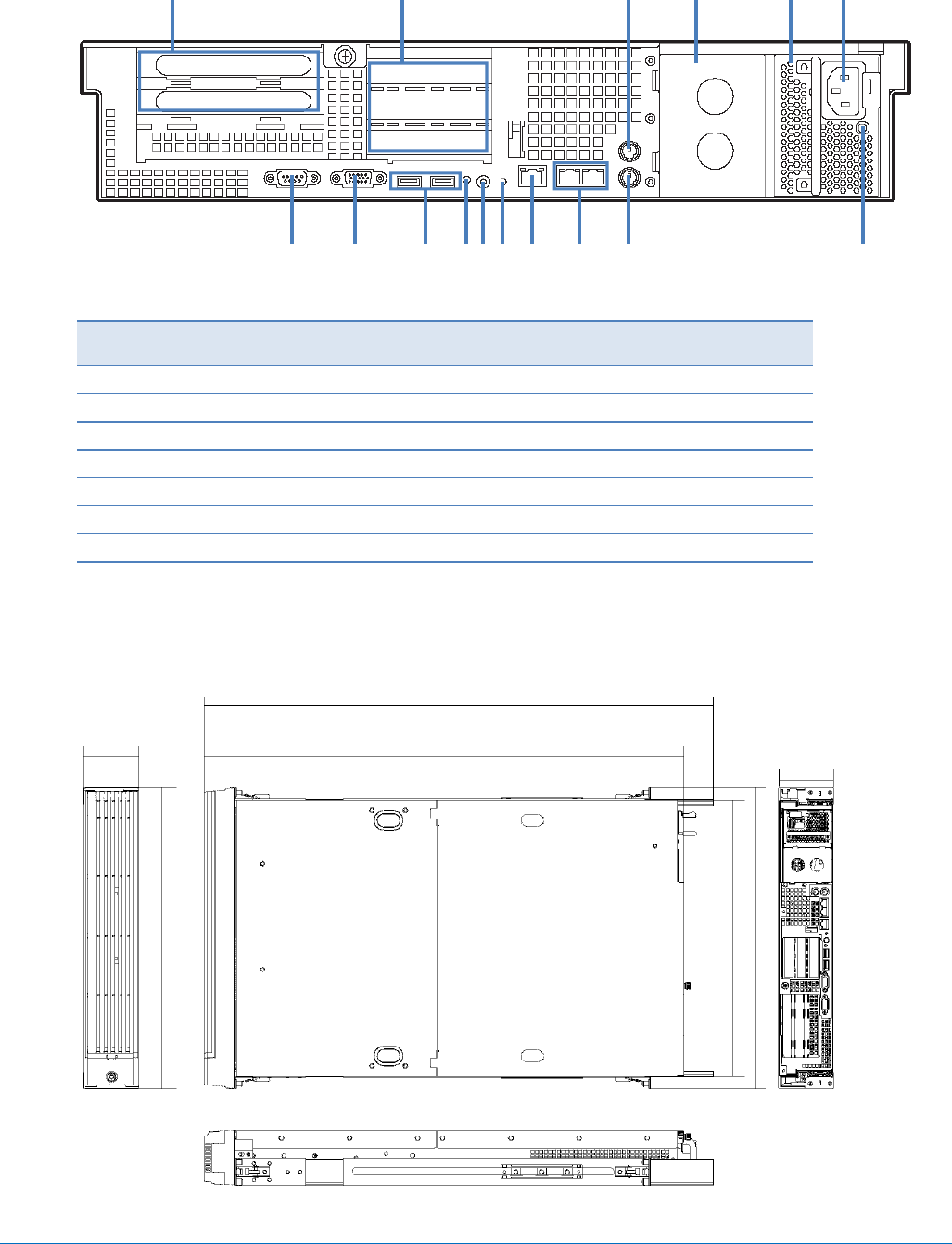

Rear View
Legend
A.
PCI Slots (Full-Height)
I.
USB Connectors
B.
PCI Slots (Low-Profile)
J.
UID Button
C.
Mouse Connector
K.
UID LED
D.
Additional PS Slot
L.
Dump (NMI) Switch
E.
Power Supply
M.
Management LAN Connector
F.
AC Inlet
N.
Data LAN Connectors
G.
Serial Port Connector
O.
Keyboard Connector
H.
VGA Connector
P.
AC Power LED
Dimensions (mm)
A
B C
D
E
F
G H
I
MJ K L ON P
486.5
486.5
445.2
821.9
769.9
52.0 721.288.6
86.7
