Installation Manual

VHF Antenna
Link8 VHF
5
External Speaker
Hailer Speaker
VHF Antenna

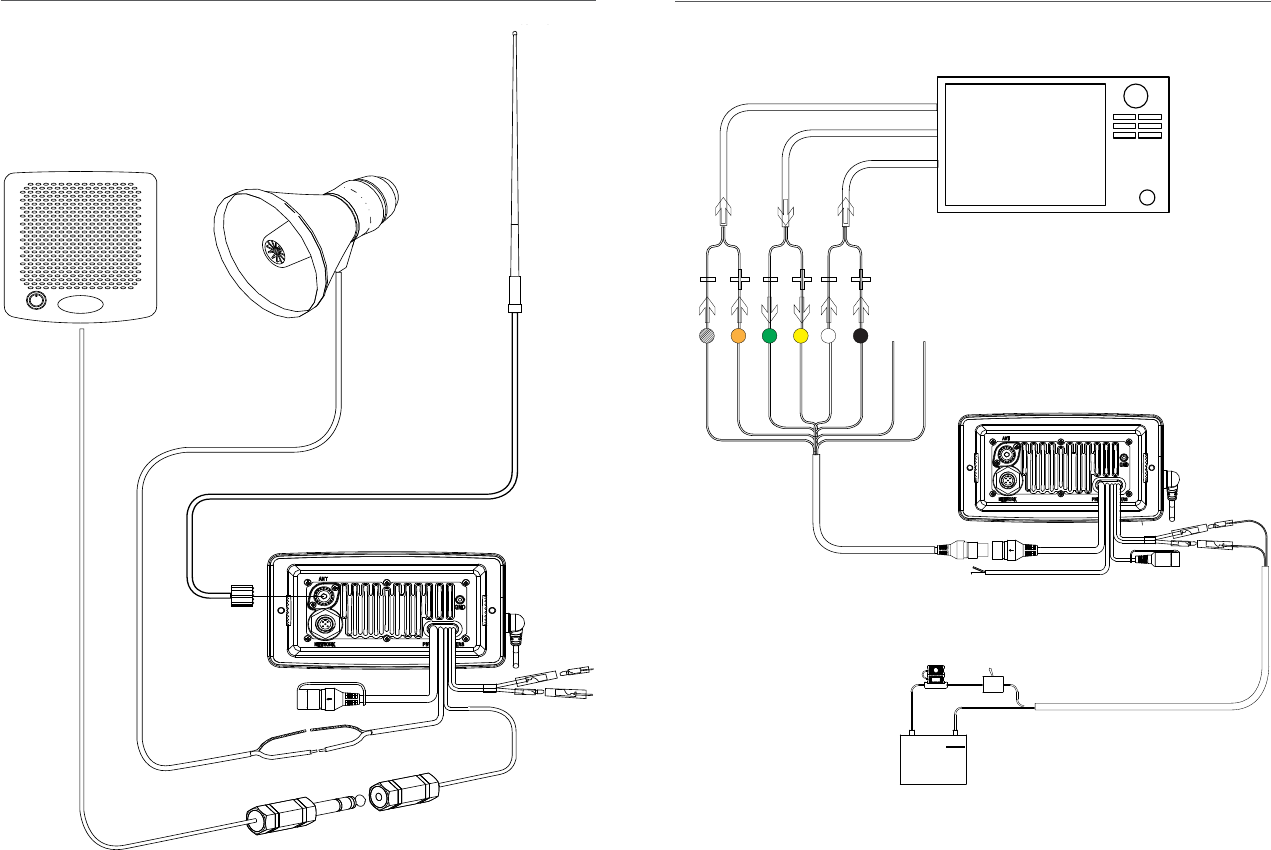

3.3 Wiring diagram - External speaker and hailer
3.4 Wiring diagram - NMEA 0183 connections
RS35 VHF
GPS Plotter
+
12 VDC
Fuse Switch
Power 12 VDC only


1. Shield
NMEA0183 In 4800
DSC Information
NMEA0183 Out
GPS Position
RS422 38,400
AIS Information
2. Orange
3. White
4. Green 5.Yellow 6.Black 7. Blue N/C 8.Grey N/C


+
-
+
-
+
-
Red
Black
White
Shield
Simrad - RS35 Installation Instructions16 Simrad - RS35 Installation Instructions 17
