Installation Manual

Note: A VHF antenna is not provided by Simrad. Consult your Simrad dealer for advice if
necessary.
1.2 Tools needed for installation
You will need the following tools:
• Power drill (or hand drill) and drill bits
• Philips screwdriver
• Spanner
• Jig saw (for a recessed installation).
• RS35 base station, with microphone
attached
• Dust cover
• GPS connector cable
• Speaker connector cable
• Power supply cable
(with 7 A fuseholder incorporated)
• Spare 7 A fuse
• Mounting bracket, with:
- 4 self-tapping screws
- 4 flat screws
- 4 plain washers
- 4 spring washers
- 4 nuts
- 2 mounting knobs
• Handset mic wall hanger, with:
- 2 self-tapping screws
- 2 flat screws
- 2 plain washers
- 2 spring washers
- 2 nuts
• 2 M5 x 32 screws with 2 plain washers
and 2 nuts (for a recessed installation)
• Operation Manual
• Installation Manual
• Warranty Card
• DSC Warning Label
• Template for flush mounting option
• Declaration of Conformity document
(where applicable)
1 Installation preparation
1.1 Checklist
Check that you have all the following items before starting the installation. Contact your
dealer if an item is missing:
2 VHF installation
2.1 Location requirements
Please check these before doing any cutting or drilling.
Whichever installation method you choose, ensure that the chosen location:
• Is at least 3’ (1 m) from the antenna
• Allows easy connection to (at least) a 10 Amp fused 13.6 V DC electrical source and the
antenna
• Is at least 1.5’ (45 cm) from the compass to avoid creating magnetic deviation of the
compass during radio operation
• Has a suitable space close by for installing the microphone bulkhead mount
• Provides easy access to the controls on the front panel
• Provides reasonable access to the wiring at the back of the radio
• Provides enough room to fix the DSC warning label.

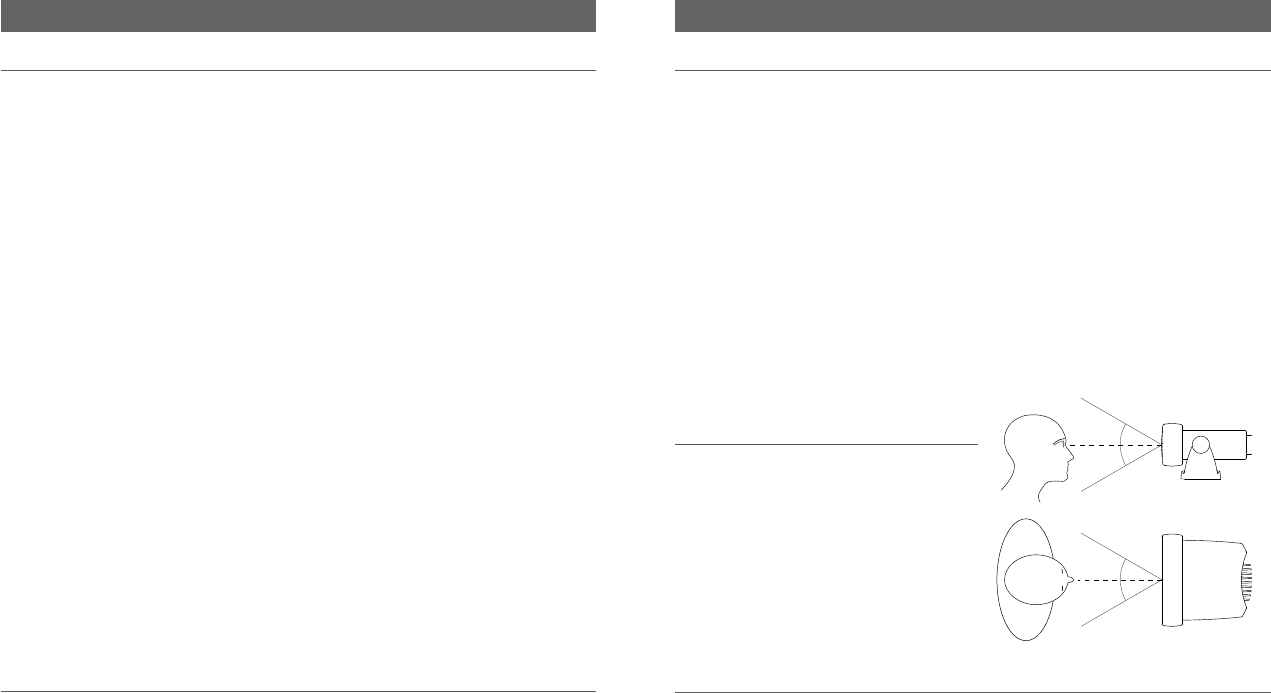

2.2 LCD viewing angle
The VHF has a large LCD screen with an
optimum viewing angle of approx. +/-20 deg.
Ensure the chosen location provides a suitable
view of the display. Ideally, the user should be
directly in front of the display or no more than
+/-20 deg from the front of the display.
Note: If unsure, temporarily power up the
radio and check for a suitable location.
2.3 Choose an installation type
There are two ways to install the radio. You can choose:
• Deckoroverheadmountingbracketinstallation.The reversible mounting gimbal is fixed
to a suitable site and the radio is placed into it. The radio can be removed for storage and
the viewing angle can be adjusted.
• Indashorrecessedinstallation.The radio is recessed into a cavity cut into a bulkhead.
The radio fixture is permanent and the viewing angle cannot be adjusted.
20˚
20˚
20˚
20˚
Side
Top
