Chapter 3 Theory of Operation

Digital Control Circuitry

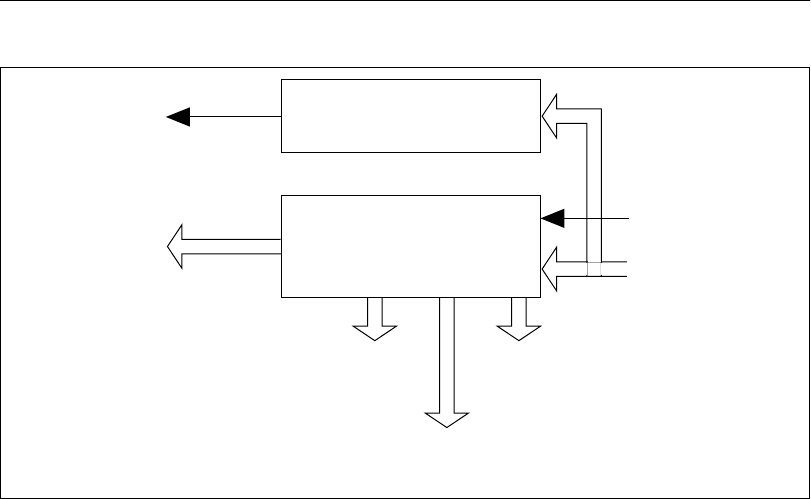

Figure 3-4 diagrams the SCXI-1121 digital control.

Figure 3-4.

SCXI-1121 Digital Control

The digital control section consists of the Configuration Register and the

Module ID Register.

The Configuration Register is a two-byte, serial-in parallel-out shift

acquisition board when SS* is enabled and D*/A indicates data transfer

(D*/A low). The Configuration Register provides temperature channel

selection and channel selection, and configures the SCXI-1121 for

scanning options. All the control bits are fed into a latch before being

routed to the rest of the module. The channel-select bits are taken directly

from the shift register. Complete descriptions of the register bits are given

in Chapter 4, Register Descriptions. Writes to the Configuration Register

require the following steps:

1. SS* goes low, enabling communication with the board.

2. D*/A goes low, indicating that the information sent on the MOSI line

is data.

Module ID Register

Configuration

Serial Data Out

Input Channel

Select

Output

Stage

Control

Hardware

Scan

Control

SCANCLK

Path

Control

Buffered

Serial Data In

Buffered Digital

Control Signals
