Chapter 2 Configuration and Installation

SCXI-1121 User Manual 2-36 www.natinst.com

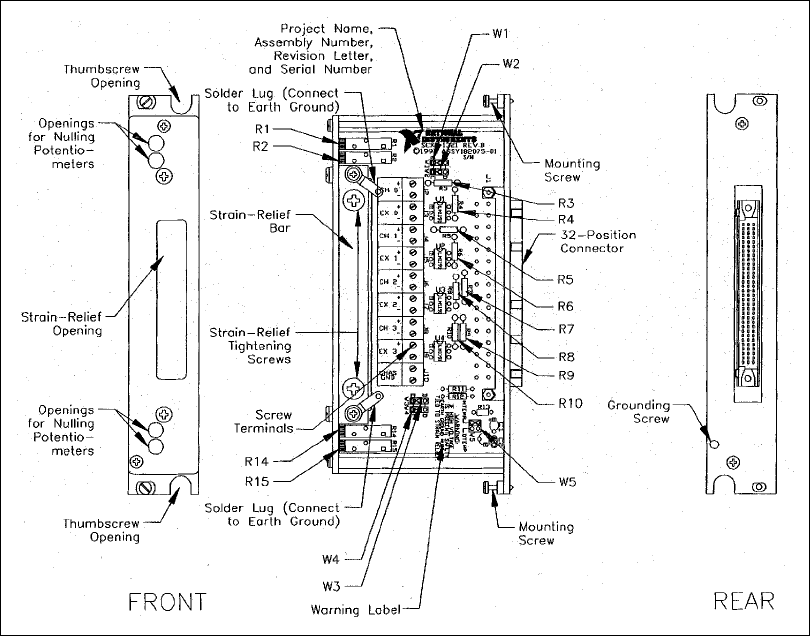

Figure 2-13. SCXI-1321 Parts Locator Diagram

Terminal Block Installation

To connect the terminal block to the SCXI-1121 front connector, perform

the following steps:

1. Connect the SCXI-1121 front connector to its mating connector on the

terminal block.

2. Make sure that the SCXI-1121 top and bottom thumbscrews do not

obstruct the rear panel of the terminal block.

3. Tighten the top and bottom screws on the back of the terminal block to

hold it securely in place.
