Chapter 2 Configuration and Installation
SCXI-1121 User Manual 2-10 www.natinst.com
Excitation Level
Each excitation channel of your SCXI-1121 has two different current or
voltage levels. You can set a given channel to one of the following level
modes:
• In the Current mode 0.150 or 0.450 mA
• In the Voltage mode 3.333 or 10 V
It is important to notice that you should select the level of excitation
according to the load you are using. Table 2-7 lists the maximum load that
can be driven per channel at each level of excitation for both volt and
current excitation.

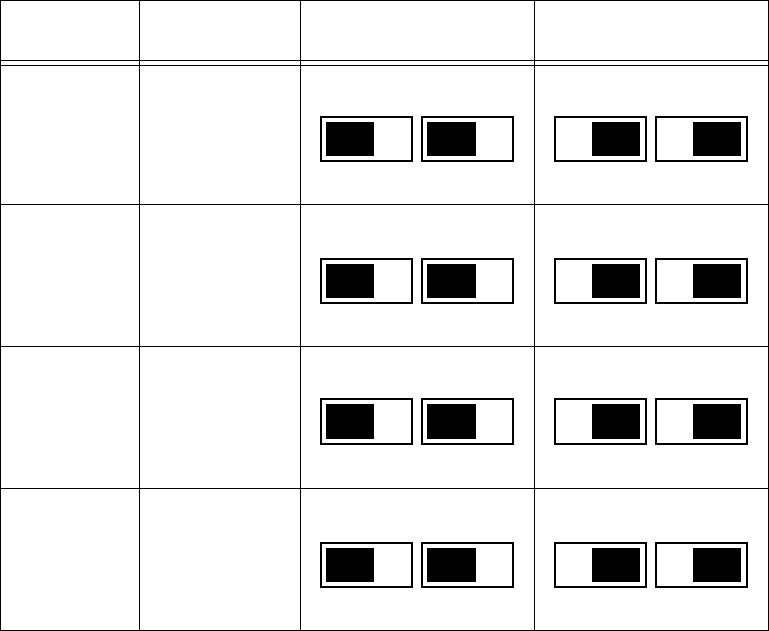

Table 2-6.
Voltage and Current Mode Excitation Jumper Setup
Excitation
Channel
Jumpers
Voltage Mode
(Factory Setting)
Current Mode
0 W14 and W15
1 W22 and W23
2 W34 and W35
3 W46 and W47
•
•
•
W14
1 2 3
•
•
•
W15
1 2 3
•
•
•
W14
1 2 3
•
•
•
W15
1 2 3
•
•
•
W22
1 2 3
•
•
•
W23
1 2 3
•
•
•
W22
1 2 3
•
•
•
W23
1 2 3
•
•
•
W34
1 2 3
•
•
•
W35
1 2 3
•
•
•
W34
1 2 3
•
•
•
W35
1 2 3
•
•
•
W46
1 2 3
•
•
•
W47
1 2 3
•
•
•
W46
1 2 3
•
•
•
W47
1 2 3
