Appendix B Cabling
© National Instruments Corporation B-3 IMAQ PCI/PXI-1428 User Manual

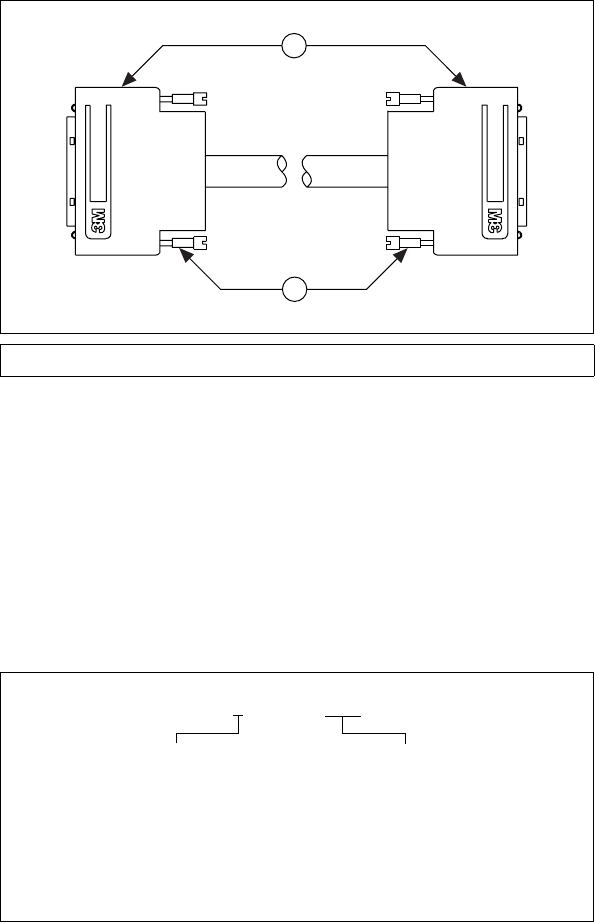

Figure B-3 illustrates the Camera Link cable.
Figure B-3. Camera Link Cable
Ordering Information
Camera Link cables are manufactured by 3M corporation and are available
from both National Instruments and 3M.
Two-meter Camera Link cables (part number 187676-02) are available
from the National Instruments Web site at
ni.com/catalog. Camera
Link cables are available in 1 to 10 m lengths from the 3M Web site at
www.3m.com. Refer to Figure B-4 for 3M part number information.
Figure B-4. 3M Part Number Ordering Information
1 MDR 26-Pin Male Plug 2 2X Thumbscrews
2
1
14X26-SZLB-XXX-0LC
Length:
100 = 1 meter
200 = 2 meters
300 = 3 meters
450 = 4.5 meters
500 = 5 meters
700 = 7 meters
A00 = 10 meters
Shell Retention Options:
B = Thumbscrew shell kit
T = Thumbscrew overmold shell
