Appendix A Uninstalling the Hardware and Software
PXI-8461 or PXI-8460 and NI-CAN for Windows NT A-2 www.natinst.com
Complete the following steps to remove the NI-CAN software from
Windows NT 4.0:
1. Select the Add/Remove Programs icon under Start»Settings»
Control Panel
.
A dialog box similar to the one in Figure A-1 appears.
This dialog box lists the software available for removal.

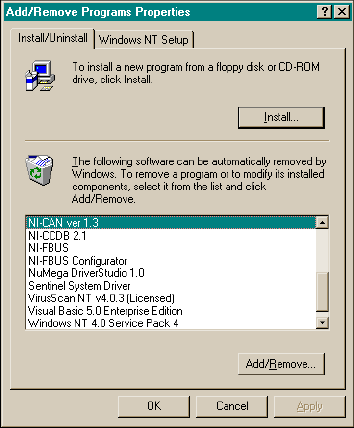

Figure A-1. Add/Remove Programs Properties Dialog Box
2. Select the NI-CAN software you want to remove and click on the
Add/Remove button. The uninstall program runs and removes all
folders, utilities, device drivers, DLLs, and registry entries associated
with the NI-CAN software.
The uninstall program removes only items that the installation program
installed. If you add anything to a directory that was created by the
installation program, the uninstall program does not delete that directory
because the directory is not empty after the uninstallation. You need to
remove any remaining components yourself.
If you want to reinstall the hardware and software, refer to Chapter 2,
Installation and Configuration.
