Chapter 2 Installation and Configuration
PXI-8461 or PXI-8460 and NI-CAN for Windows NT 2-2 www.natinst.com
3. Double-click on the Add/Remove Programs icon in the Control Panel
to launch the Add/Remove Programs applet. A dialog box similar to
the one in Figure 2-1 appears.

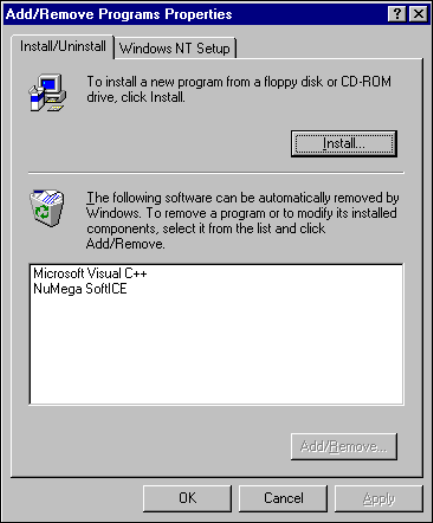

Figure 2-1. Add/Remove Programs Properties Dialog Box
You can use this same applet to uninstall the NI-CAN software
at a later time. Refer to Appendix A, Uninstalling the Hardware
and Software, for more information.
4. Click on the Install button.
5. When prompted, insert the NI-CAN Software for Windows 95/98/NT
(Disk 1 of 3), and click on the Next button to proceed.
6. The setup wizard guides you through the necessary steps to install
the NI-CAN software. You may go back and change values where
appropriate by clicking on the Back button. If at any time you want to
exit the setup, click on the Cancel button.
7. Shut down Windows NT and turn off your computer when the setup is
complete.
