© National Instruments Corporation 29 NI PXI/PCI-5124 Specifications

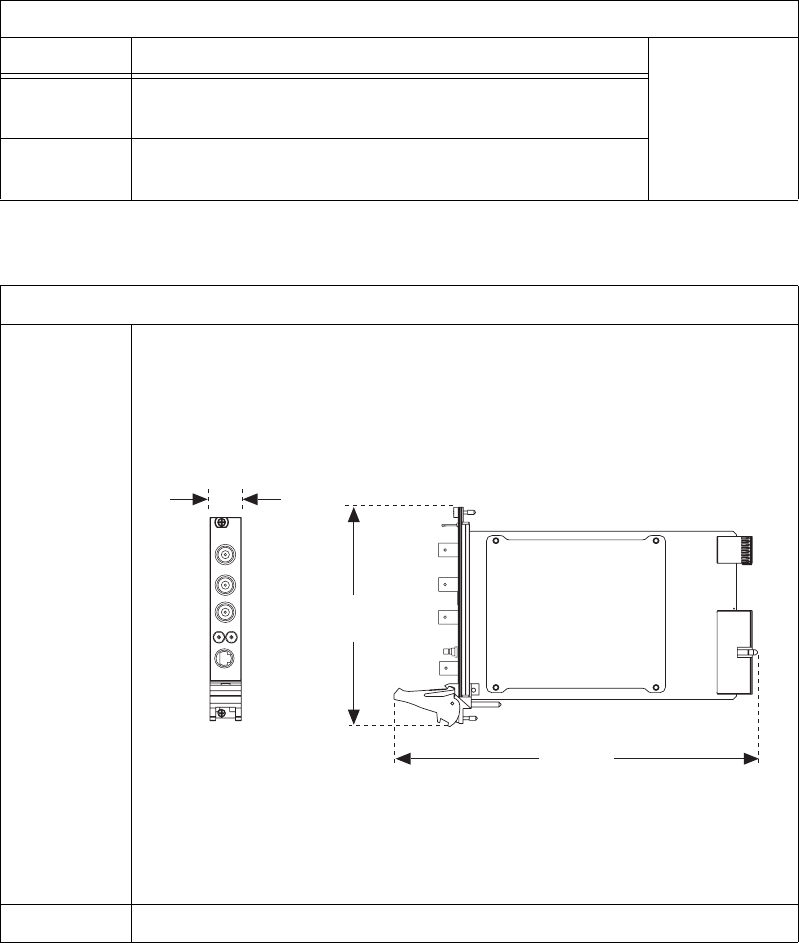

Dimensions and Weight
NI PXI-5124 Front Panel Indicators
Label Function For more
information,
refer to the
NI High-Speed
Digitizers
Help.
ACCESS The ACCESS LED indicates the status of the PCI bus and the
interface from the NI PXI-5124 to the controller.
ACTIVE The ACTIVE LED indicates the status of the onboard
acquisition hardware of the NI PXI-5124.
NI PXI-5124
Dimensions 3U, One slot, PXI/cPCI Module
21.6 × 2.0 × 13.0 cm
(8.5 × 0.8 × 5.1 in.)
Weight 383 g (13.5 oz)
13.0 cm
(5.1 in.)
21.6 cm
(8.5 in.)
2.0 cm
(0.8 in.)
