Dimensions Guide

ManualsBrandsNational Hardware ManualsGate HardwareN109-032

1

DO NOT SCALE

Dimensions are nominal

and subject to change.

©2015 Spectrum Brands, Inc.

Revision

Family No. SKU

September 2015

Date Description

SPB859

N109-032

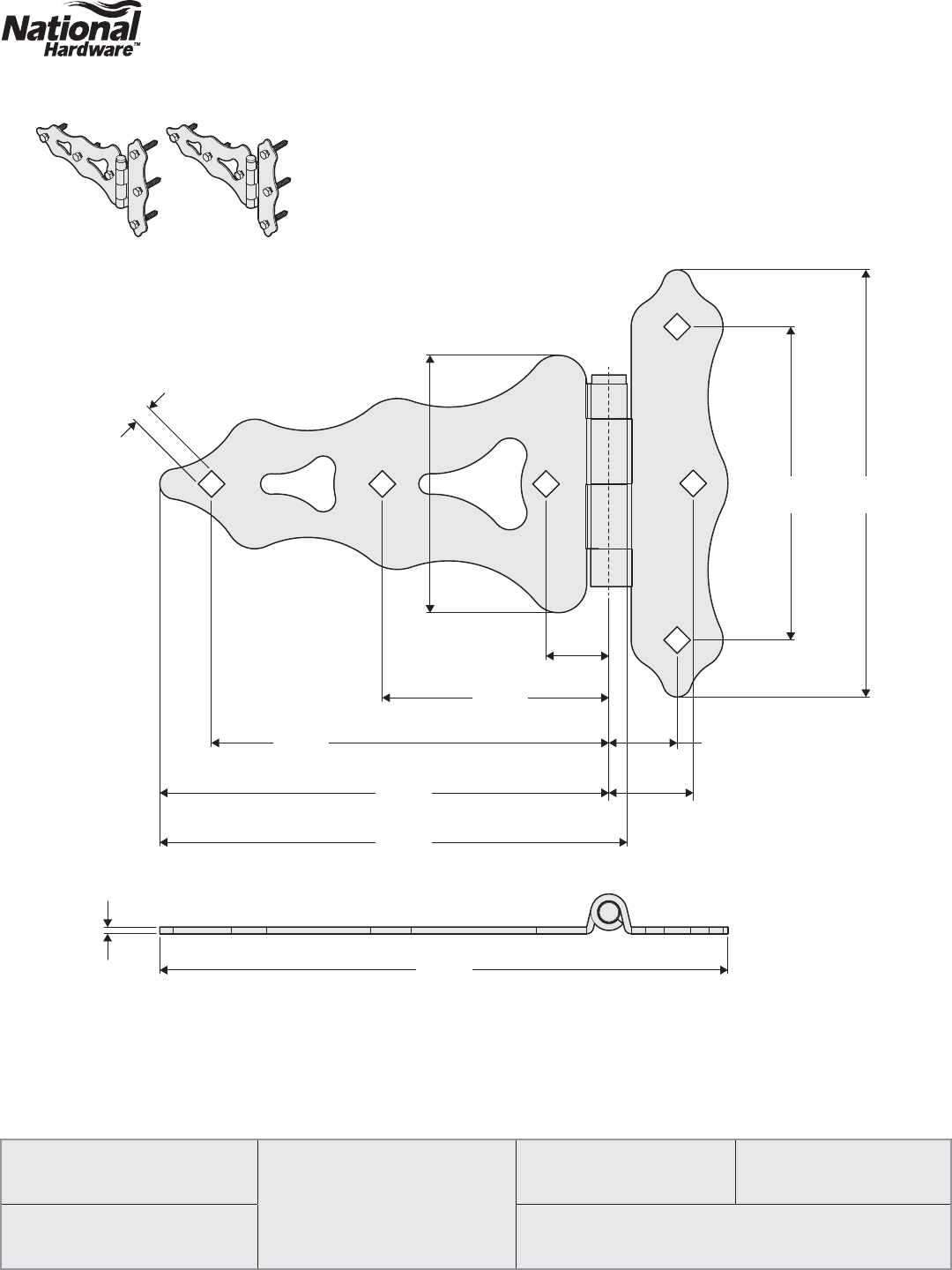

8" Gate T-Hinge

Material: Steel

Finish: Black

Fasteners: (12) Lag Screw, Hex Head, 5/16" x 2"

11/32"

8,4 mm

4-17/32"

114,8 mm

1-3/32"

28,1 mm

3-31/32"

101,1 mm

6-31/32"

177,3 mm

7-7/8"

200,4 mm

8-7/32"

208,5 mm

1/8"

3 mm

9-31/32"

253,5 mm

1-15/32"

37,6 mm

1-3/16"

30,4 mm

5-1/2"

139,7 mm

7-1/2"

190,5 mm
