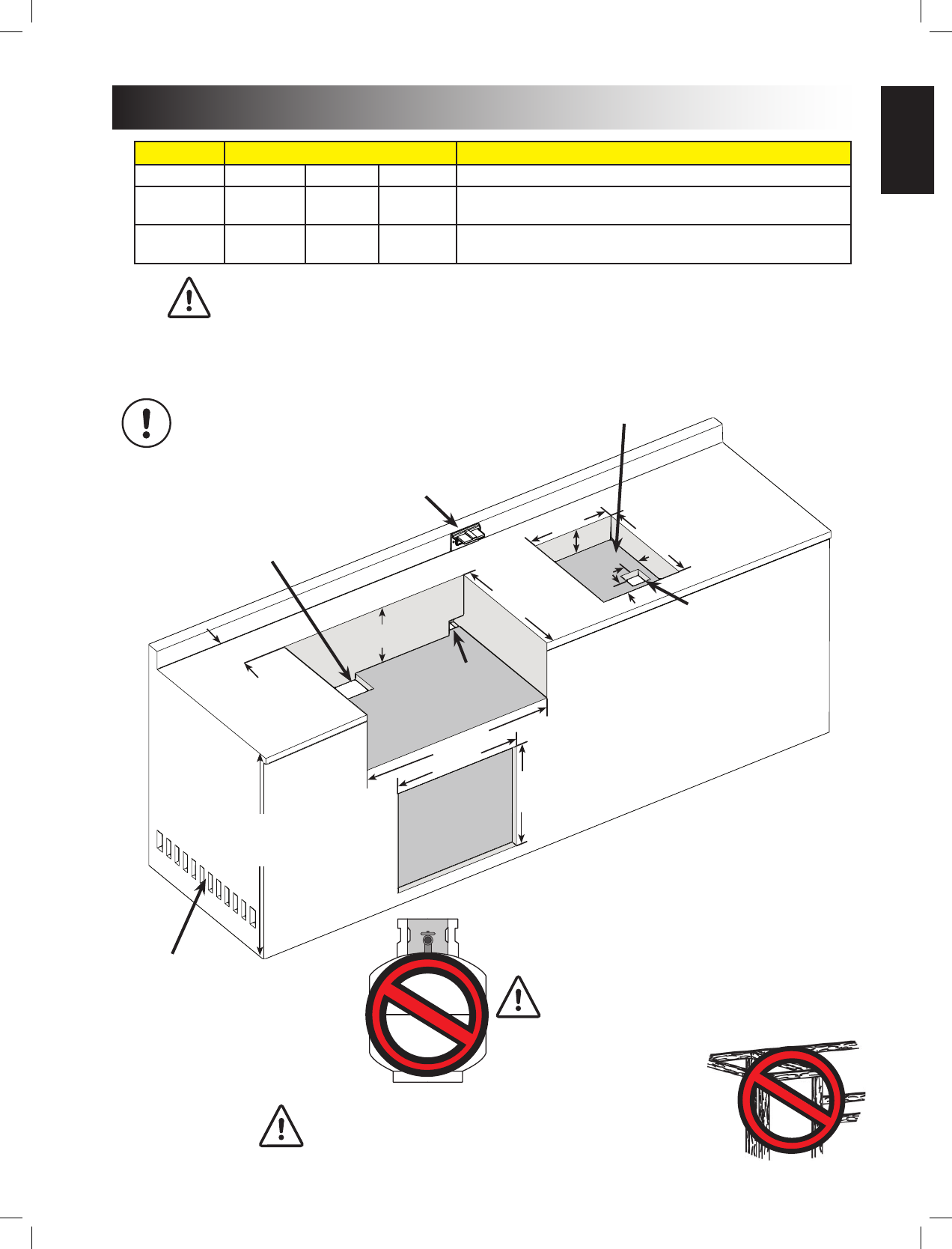

BUILT-IN UNIT OPENING DIMENSIONS
MODEL OPENING DIMENSIONS NOTES
W D 
 
781mm

524mm

225mm
 
324mm



114mm
 

WARNING! CABINET FRAME, CABINET AND COUNTER TOP
MUST BE MADE FROM NON-COMBUSTIBLE MATERIAL.
WARNING! This grill is designed for Non-combusble enclosures only, and must be installed and
serviced by a qualied installer to local codes.
WARNING! Use only non-combusble materials (cered to ASTM E-136) such as steel studs,
cement board, ceramic le, marble, paint etc. When adding nishing materials to the appliance. Do
not use wood or drywall.
W
W
H
H
W
H
D
1¾”
(44mm)
BUILT-IN SIDEBURNER
GAS INLET OPENING
NON-COMBUSTIBLE MATERIAL
OUTDOOR GFI ELECTRICAL OUTLET
REC OMMENDED - LOCATE ON SAME SIDE
OF GRILL AS ROTISSERIE BRACKET.
GAS INLET
OPENING
Note: Accessory frames
overlap opening by 1 ¾”
on all 4 sides.
34” (864mm)
RECOMMENDED
5” (127mm)
1¾”
(44mm)
ELECTRICAL OPENING
MINIMUM 10 SQ IN OF
VENTILATION REQUIRED
ON EACH END OF CABINET
WARNING! A propane tank can not be stored
below the gas grill.
D
