Installation Guide

6
W415-0713 / A / 11.09.10

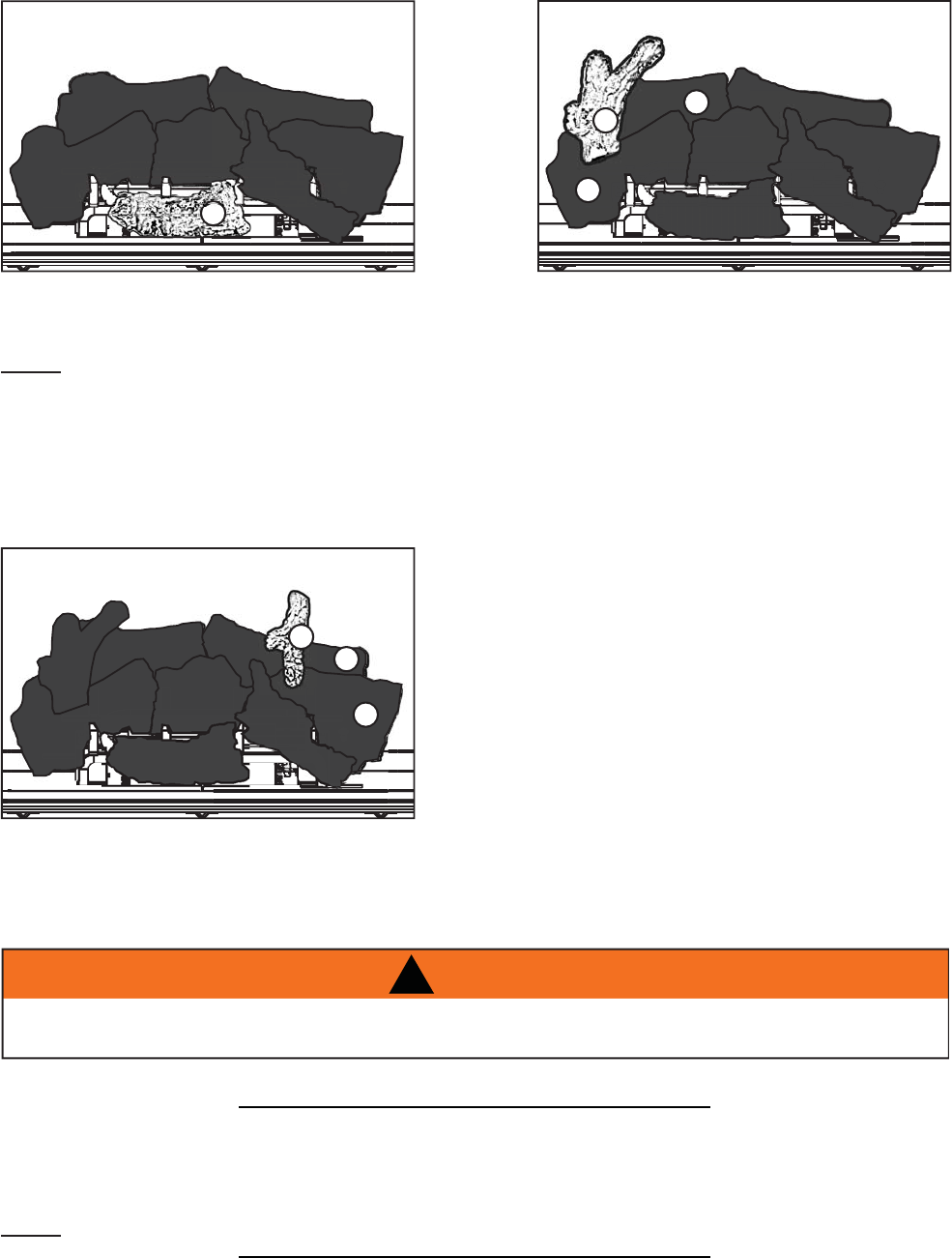

G. Slide the fl at portion of log #7 under the
second grate post.
NOTE: Logs 3, 4, 5, 6 and 7 are included
twice. Install these logs on the opposite
side. Logs 8 and 9 are only included once,
to give a different appearance to each side.
Install logs 8 and 9 on the side that you
prefer. If desired a 2nd set of 8 and 9 logs are
available in an upgrade kit GL81L2 and can
be purchased to make both sides identical.
H. Place the pin in log #8 into the locating
hole on log #1 and rest the bottom of
the log on log #5.
I. Place the pin in log #9 into the locating
hole on log #2 and rest the bottom of
the log #3.
7
8
9
1
5
2
3
J. If GL81L2 (upgrade kit) is purchased repeat
“H” and “I” on other side.
2.7 CHARCOAL LUMPS
34.1
Place the lumps in front of the logs in a realistic manner taking care not to block any of the burner ports.
!
WARNING
CHARCOAL EMBERS, VERMICULITE AND CHARCOAL LUMPS ARE NOT TO BE PLACED ON THE
BURNER.
2.8 CHARCOAL EMBERS
32.1
Randomly place the charcoal embers along the
f
ront and sides o
f
the log support tray in a realistic manner.
Fine dust found in the bottom of the bag should not be used.
NOTE: Charcoal embers are not to be placed on the burner.
