Installation Guide

5
W415-0713 / A / 11.09.10
NOTCH

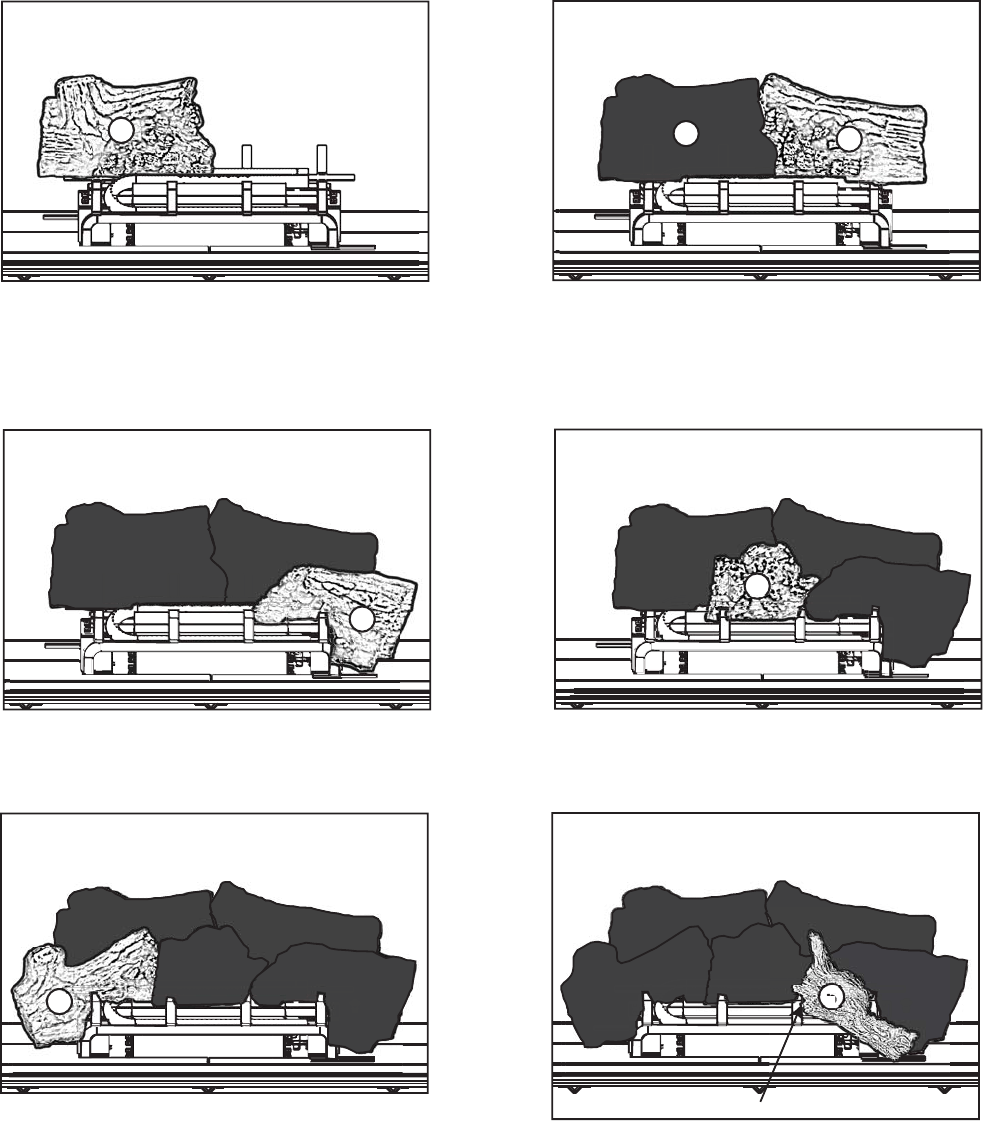

2.6 LOG PLACEMENT
A. Place the left middle log #1 onto the
locating stud on the middle log support.
Make sure the hollow on the underside
of the log is over the bend tab.
B. Slide log #2 from right to left on the
middle log support creating a tight fi t
between logs #1 and #2. Make sure the
hollow on the underside of the log is
over the bend tab.
C. Place log #3 onto the far right locating
stud located on the front defl ector.
D. Place log #4 onto the two center
locating studs on the front support.
E. Place log #5 onto the far left locating
stud located on the front defl ector.
F. Place the notch on log #6 onto the third
grate.
1
2
3
4
5
6
1
