Installation Guide

3
W415-0713 / A / 11.09.10
NOTE: Bulkhead covers need to be removed.

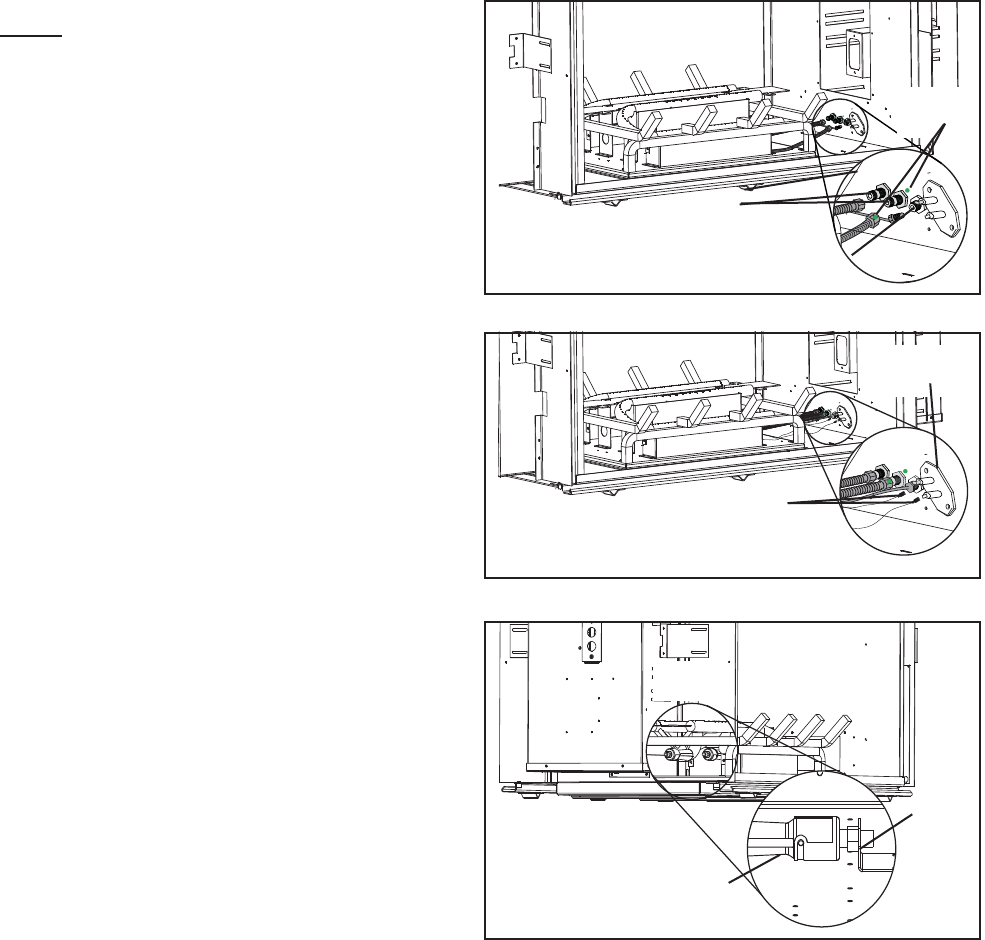

A. Connect the gas fl ex lines and the pilot line
to the gas bulkheads located under the valve
access opening. Be sure to match up the gas
manifold marked with a green dot with the
center bulkhead, also marked with a green
dot. Care must be taken to ensure the pilot
line isn’t damaged and ensuring gas tight
connections are made.
Gas
Bulkheads
Green
Dots
Pilot
Bulkhead
Pilot
Electrode
Leads
Pilot
Electrode
2.3 BULKHEADS
See Thru
Window
Orifi ce
Venturi
Tube
B. Connect the pilot electrode leads to the
bulkhead matching the 1/4” fl ag with the 1/4”
bulkhead spade and the 3/16” fl ag with the
3/16” spade.
C. Ensure the 2 venturi tubes are over the
orifi ces before lighting.
D. Check for gas leaks by brushing on a soap
and water solution. Do not use open fl ame.
E. After leak test has been performed re-install
access panel with gasket.
