Mytek Protools-HDX DIO Card – User's Manual
12. Use SOURCE TO DIGITAL OUT and SOURCE TO
ANALOG OUT buttons to set desired signal flow in the
system.
✔ Use SOURCE TO DIGITAL OUT button to select
which audio signals are sent from the 8X192 ADDA
converter to the Pro Tools system and converter’s
digital outputs.
✔ Choose the signal transmitted to converter’s analog
output by pressing SOURCE TO ANALOG OUT
button.

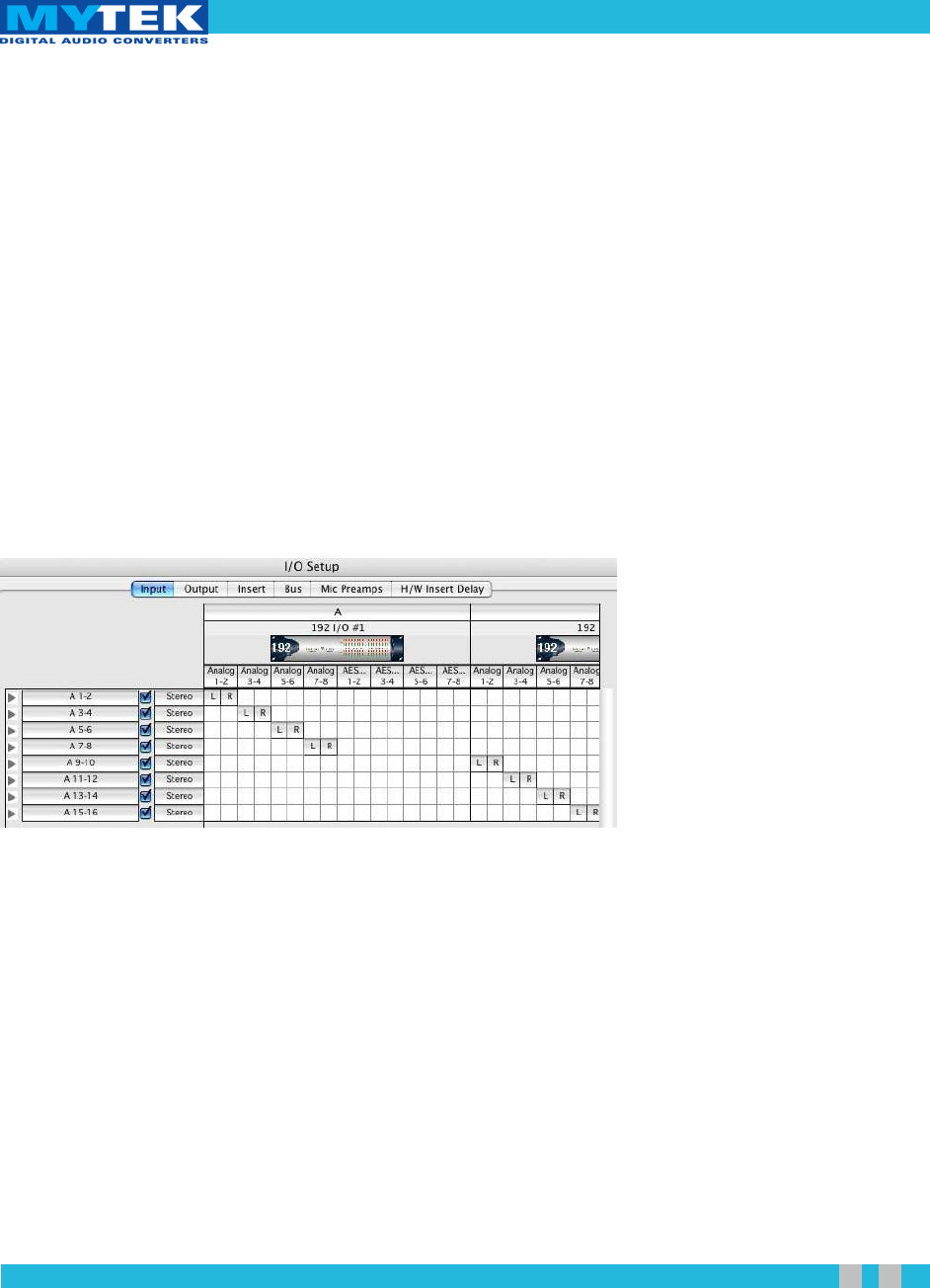

13. In Setup > I/O Setup configure the routing according to
your needs, keeping in mind that channels 9-16 are
routed to second DIO-HDX card.
Setup > I/O Setup
