Typical Configurations
Typical ConfigurationsTypical Configurations
Typical Configurations
Single 8x192 ADDA converter
1. Connect the 8X192 ADDA (through Primary Port) to the
Pro Tools interface card in a computer.
2. Turn on the computer and converter.
3. Set the converter to work with internal clock.
✔ EXT LED shouldn’t be lit.
✗ If LED is lit, press and hold EXT CLOCK SOURCE
button.
4. Launch the Pro Tools application.
5. Open Setup > Hardware Setup and check:
✔ Is the 8X192 ADDA Mytek Digital converter
properly detected as 192 I/O?
✔ Are input and output signals assigned in the Input
and Output tab?
✗ If not, close the Pro Tools application, turn off the
converter and check connection between the HDX-
DIO card and the computer.

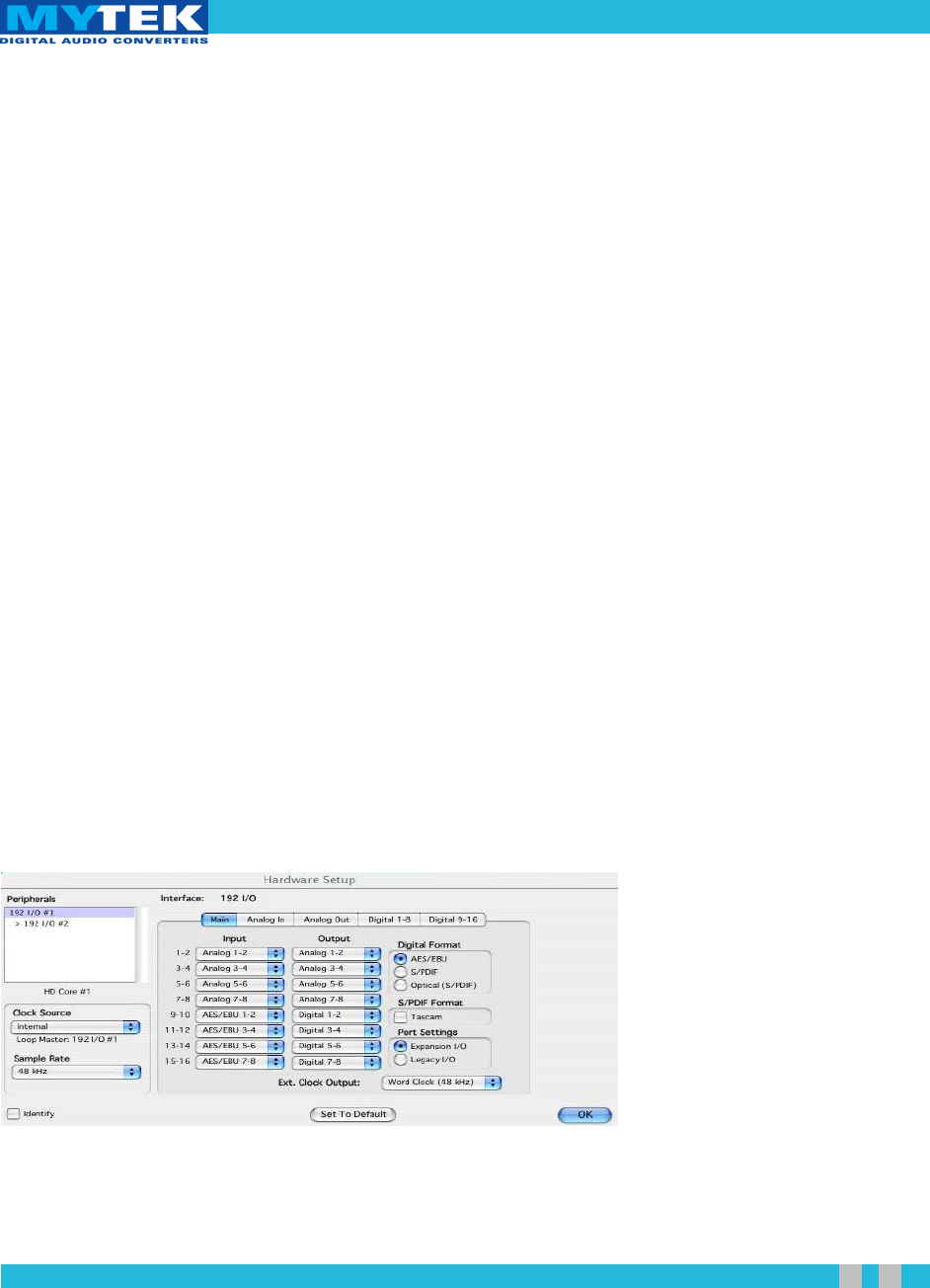

Setup > Hardware Setup
