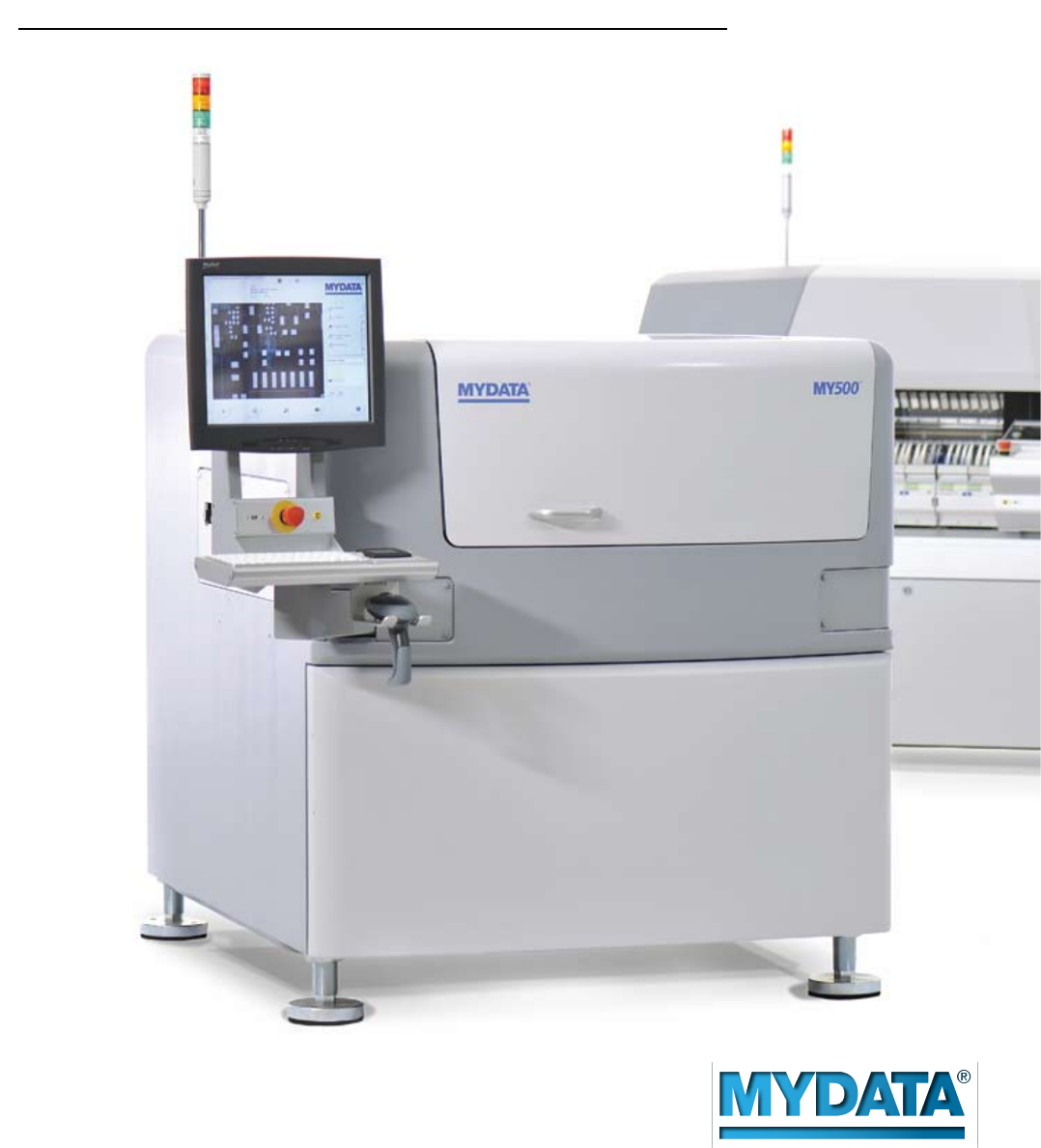

April 2010 MY500 Jet Printer Specification
Specification MY500 Jet Printer jet printing speed and accuracy jet printing speed and accuracy – solder paste Rated speed (cph equivalent) (1) 30 000 cph Reference board throughput (2) 28 000 cph Single dot repeatability 3s (X, Y) (3) 54 µm 80 µm Single dot accuracy @ Cpk=1.33 (X, Y) (3) Deposit accuracy @ Cpk=1.33 (X, Y) QFP100C (4) 33 µm Deposit accuracy @ Cpk=1.
Board handling MY500 Board handling Maximum board size 508 x 508 mm (20” x 20”) Minimum board size 70 x 50 mm (2.7” x 2”) Board thickness range 0.4 - 6.0 mm (0.016”- 0.24”) Board edge clearance, top 3 mm (0.12”) Board edge clearance, bottom 4 mm (0.16”) Bottom side clearance 20 mm (0.79”) Max board warp / bow/ twist (7) +/- 2 mm (0.08”) Max board weight 5 kg (11 lbs) Board transport height Conforms to SMEMA standard for conveyor height; height adjustable from 880-975 mm (34.6”- 38.
miscellaneous Installation Requirements Power Requirements Single phase AC 1 700 VA Power Consumption 1 200 W Voltage 200 -240V +/-10%, 50/60 Hz, (100 -120V +/-10%, 50/60 Hz) Air Supply 6 bar, 250 l/min Ambient Temperature +18°C to +30°C, 30-80% RH non condensing MACHINE WEIGHT Weight 2 000 kg (4 400 lbs) dimensions MY500 Jet Printer in mm. 1799 1300 1235 878 1218 1388 1489 1848 Network connection Air connection Power connection Reference Board Panel of six PCBs.
