Technische Beschreibung kurz
technical description (abbreviated version)
mySTM32-Board-F4D, Version 1.02
Das mySTM32-Board-F4D fungiert als Add-On und ist eine
ideale Ergänzung zu den Board „STM32F4-Discovery“. Sie
erweitern mit diesem Add-On in einfacher Art und Weise die
Möglichkeiten ihres STM32F4-Discovery. Zusätzliche digitale
und analoge Ein- und Ausgabegeräte sowie die Möglichkeit
einer optionalen USB-UART Bridge für die Kommunikation mit
dem PC komplettieren ihre Experimentier und Lernplattform.
Des Weiteren verfügt dieses Add-On über eine Schnittstelle für
myAVR Produkte. Somit bietet Ihnen das mySTM32-Board-F4D
die Chance, die neue 32bit Technologie in Kombination mit
vorhandenen myAVR Produkten einzusetzen.
The mySTM32-Board-F4D functioned as an Add-On and it is an
ideal addition to the “Board STM32F4-Discovery”. You may
extend the possibilities of your STM32F4-Discovery with this
Add-On in simply manner. Additional digital and analog input
and output devices, plus the possibility of an optional USB-
UART Bridge for the communication with the pc complete your
stage of experiment and study. In addition, this Add-On has an
interface for myAVR products. Therefore mySTM32-Board-F4D
offers you the chance to employ the new 32bit technology in
combination with the existing myAVR products.
Eigenschaften
• Schnittstelle für STM32F4-Discovery
• Schnittstelle für myAVR Produkte
• einfache Handhabung
• typische Ein- und Ausgabegeräte (Taster, LEDs, usw.)
• analoger Fotosensor zum Experimentieren mit
unterschiedlichen Helligkeitsgraden
• mit MircoSD-Kartenhalter
• Raster für flexible Anwendung (2.54mm)
• myUSBtoUART optional
• als Bausatz geeignet, alle SMD-Teile bereits bestückt
• Leiterplatte gebohrt, verzinnt, Industriefertigung, robust,
bedruckt
Properties
• Interface for STM32F4-Discovery
• Interface for myAVR products
• Easy handling
• Typical input and output devices (buttons, LEDs, etc.)
• Analog photo sensor to experiment with different degrees
of brightness
• With microSD-card slot
• Grid for flexible application (2.54mm)
• myUSBtoUART optional
• suitable as an assembly kit (no SMD)
• Printed circuit board pre-drilled, tin-plated, industrial
production, solid, printed

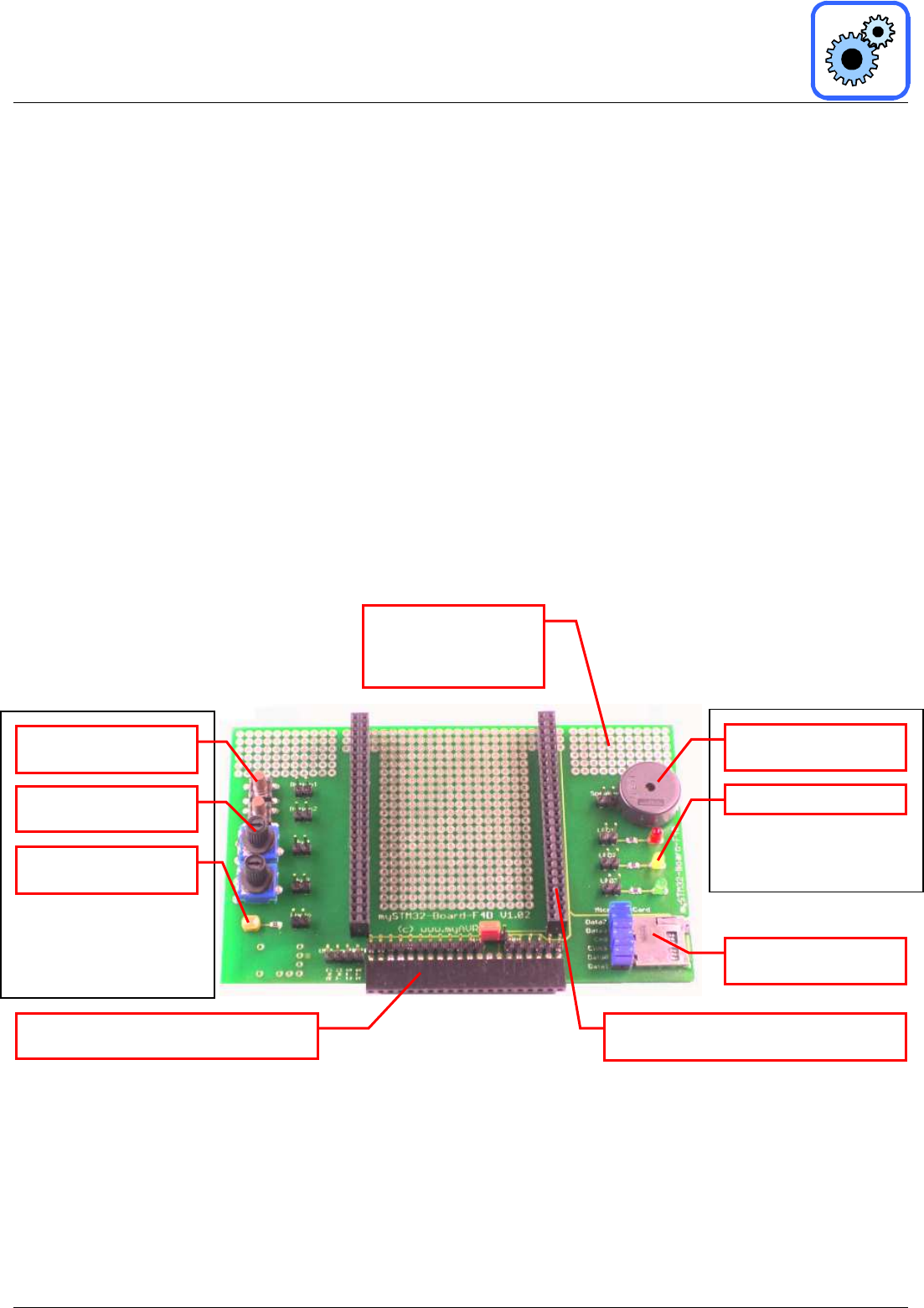

Eingabegeräte
Input devices
µTaster/Schalter (digital)
µ buttons/switch (digital)
Potentiometer (analog)
Potentiometer (analog)
Lichtsensor (analog)
Photo sensor (analog)
Erweiterungsbuchse für myAVR Produkte
a
dd
-
on
-
socket to myAVR products
Rasterfeld für
individuelle Zwecke
Grid field for individual
purposes
Ausgabegeräte
Output devices
Frequenzwandler
Frequency converter
LEDs (digital/analog)
MikroSD-Kartenhalter
microSD-card slot
Buchsenleiste für STM32F4-Discovery
Female connector for STM32F4-Discovery
