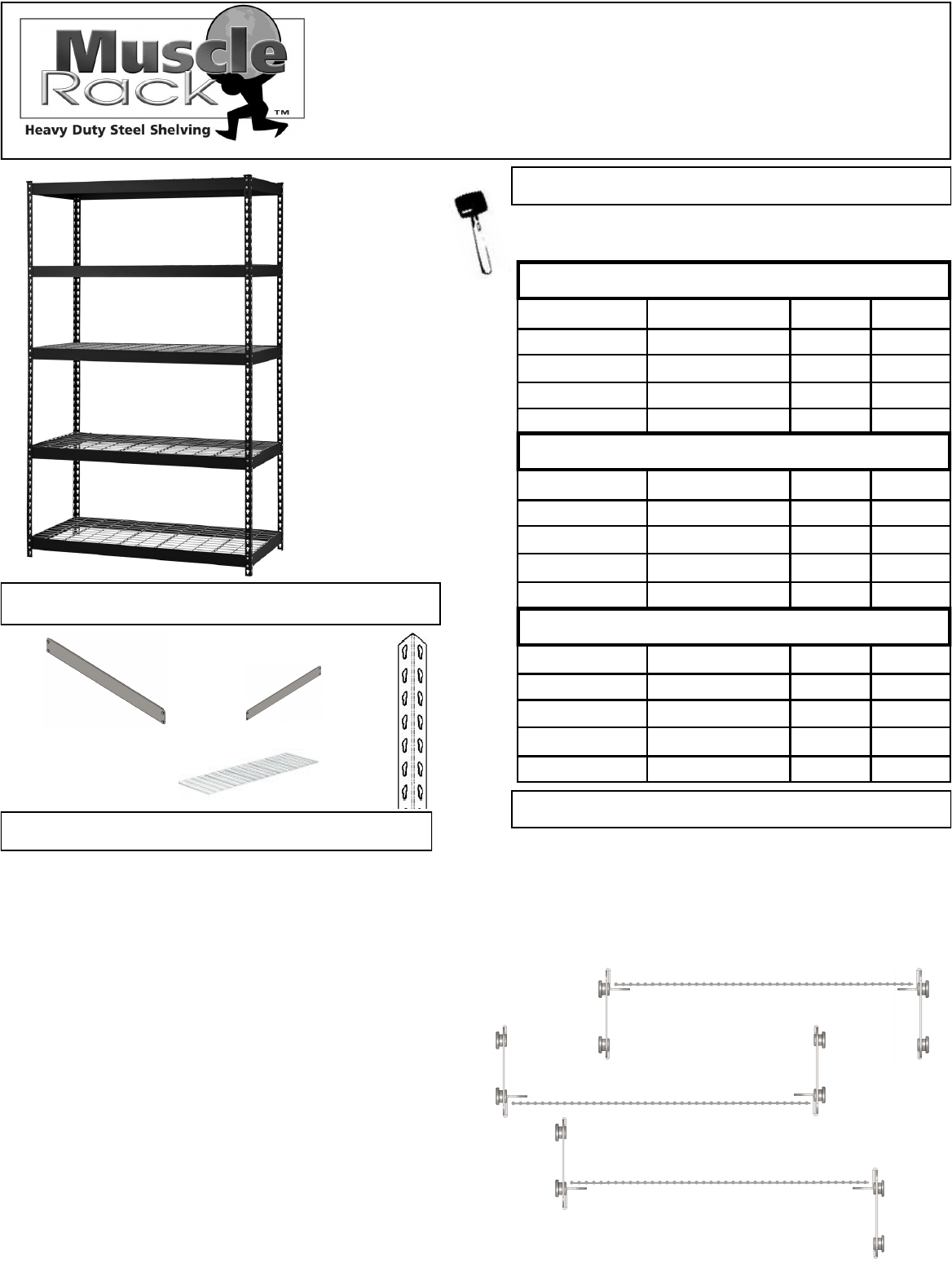

Assembly Instructions
MROP3618W5B (36”w x 18”d x 72”h x 5 levels)
MROP4824W5B (48”w x 24”d x 72”h x 5 levels)
MROP6018W5B (60”w x 18”d x 72”h x 5 levels)
General Instructions
Assembly of this unit is done by fitting the rivets of the
beams and braces into the slots of the posts. A rubber
mallet should be used on the ledge of the beams and
braces to properly seat the rivets.
The wire deck will rest on the ledge surface of the beam
or brace depending upon the orientation of the shelf level.
A rivet should engage and fit firmly into the tapered slot
of the post. This engagement is into a tapered slot and
will apply resistance as it engages. A visual inspection
should be made to show that the rivet is properly engaged
in the slot.
A rubber mallet is the recommended tool. If a hammer is
used, to avoid damage, use a protective cloth or block of
wood. Tap gently to assure that all rivets are straight and
engaged. After assembly re-check each beam and brace
for engagement.
Assembly Options
This unit can be assembled by positioning the beams and
braces in one of two different orientations and combinations:
beams and braces facing upwards or beams and braces fac-
ing downwards. Each shelf level can then be used as utilized
as a) standard flush shelf, b) recessed tray, or c) combina-
tion of shelf and tray.
a) STANDARD FLUSH SHELF
b) RECESSSED TRAY
c) COMBINATION SHELF & TRAY
… create a flush front with raised sides
… create a four-sided tray
Components
A: beam (long)
B: brace (short)
C: post
D: wire shelf
Description Component Size Quantity
A beams TBE36BLK 35-3/8” 10
B braces TBE18BLK 17-3/8” 10
C posts UPT36BLK 36” 8
D shelves RWD1836SF 18” x 36” 5
MROP3618W5B (parts)
Description Component Size Quantity
A beams TBE48BLK 47-3/8” 10
B braces TBE24BLK 23-3/8” 10
C posts UPT36BLK 36” 8
D shelves RWD2448SF 24” x 48” 5
MROP4824W5B (parts)
Rubber Mallet or Hammer (protect surface with cloth or
wood block)
Tools Required
Description Component Size Quantity
A beams TBE60BLK 59-3/8” 10
B braces TBE18BLK 17-3/8” 10
C posts UPT36BLK 36” 8
D shelves RWD1860SF 18” x 60” 5
MROP6018W5B (parts)
