User guide

Chapter 2 – Activation and Installation
10 Multi-Tech Systems, Inc. MultiModem GPRS USB Wireless Modem User Guide
Attach the Modem to a Flat Surface
This is an optional step.
To mount the Wireless MultiModem, do the following:
1. Obtain mounting screws (two are needed) that are appropriate for the surface on which you will mount
the MultiModem. For example, one might use two 6-32 self-tapping screws 5/8” in length to mount the
unit in a truck to the wall of the cab behind the passenger’s seat.

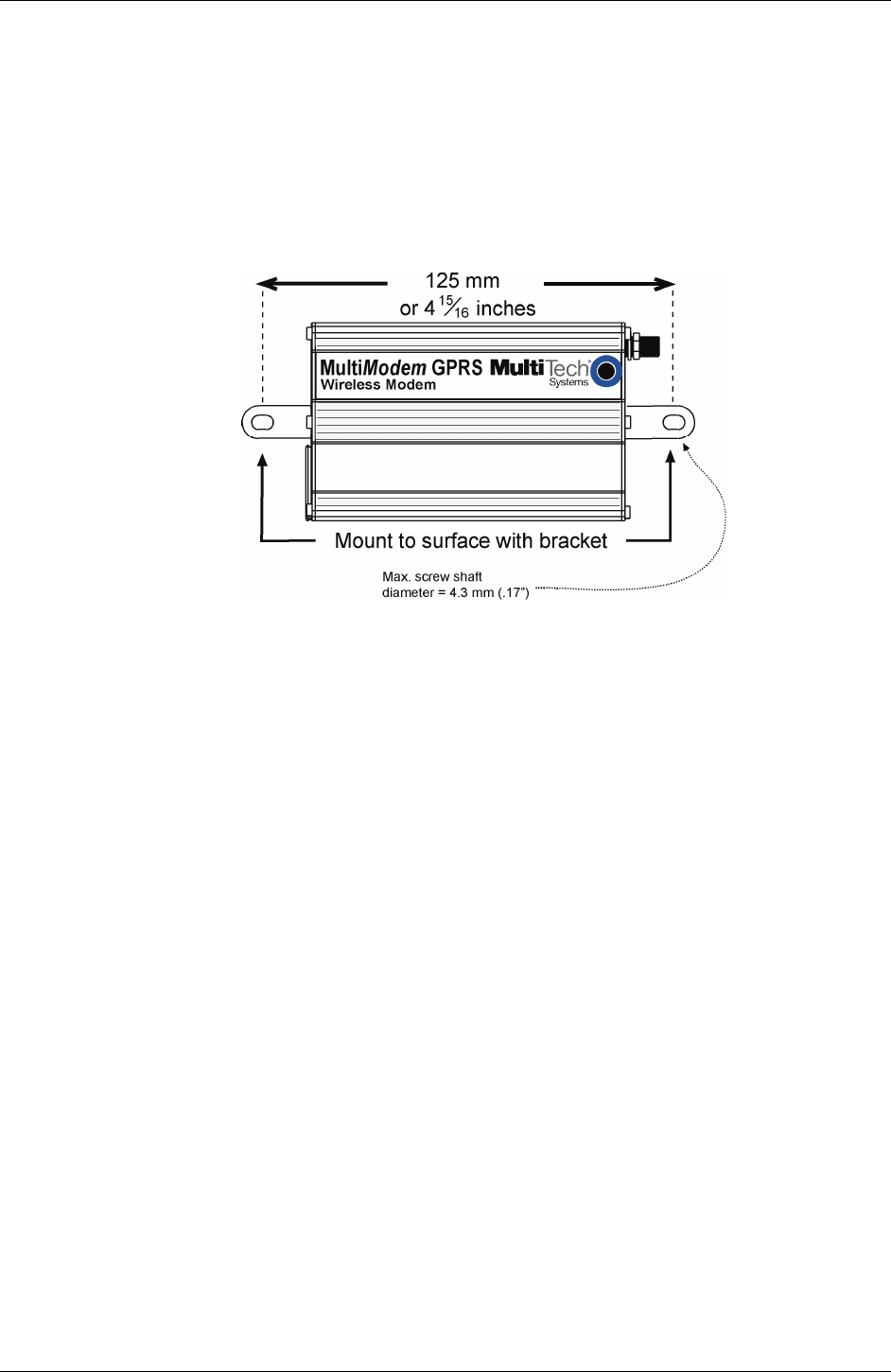

2. Typically, the unit is mounted against a flat surface into which holes can be drilled. The mounting holes
(center-to-center) must be separated by 125mm or 4 -15/16 inches.
Drill the mounting holes at the desired mounting location (if applicable).
3. Slide the mounting brackets into the corresponding slots on the backside of the MultiModem chassis.
4. Attach the MultiModem with two screws to the mounting surface at the desired location on the
equipment.
