DCA-600SSV — OPERATION AND PARTS MANUAL — REV. #0 (07/13/09) — PAGE 39
If applicable perform the following:
■ Apply commercial power to the internal battery charger
receptacle (to ensure good starting) via commercial power.
An external power cord will be required. This capability is an
option .
■ Apply commercial power to the jacket water heater
receptacle (not necessary for warm climates) via commercial
power. An external power cord will be required. This capability
is an
option .

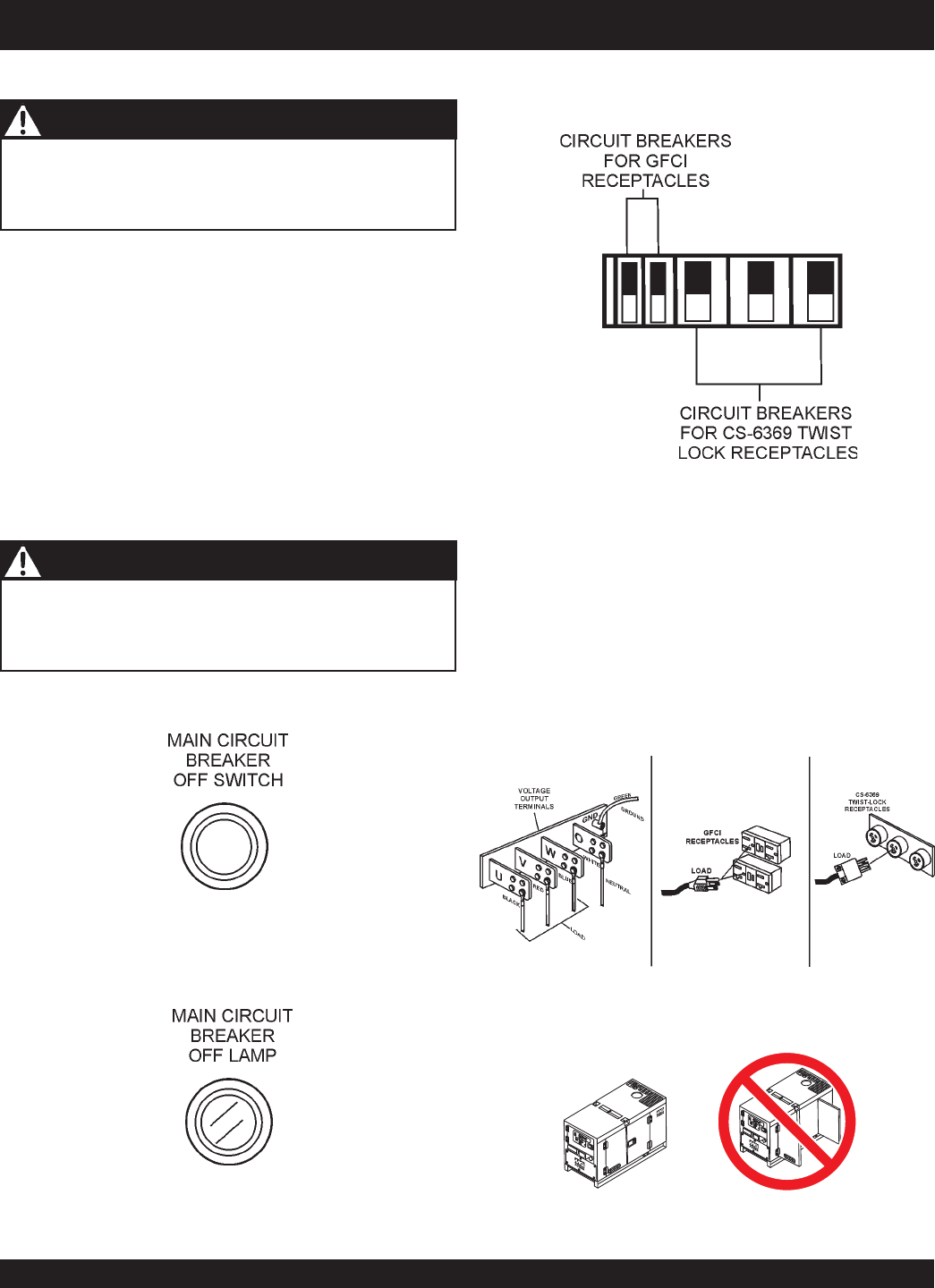

DCA-600SSV — GEN. START-UP PROCEDURE (MANUAL)
Figure 43. Load Connections
BEFORE STARTING
6. Close all engine enclosure doors (Figure 44).
Figure 44. Engine Enclosure Doors
3. Place the G.F.C.I. and aux. circuit breakers (Figure 42) in the
“OFF” position prior to starting the engine.
4. Connect the load to the UVWO terminals or auxiliary
receptacles as shown in Figure 43. These load
connection points can be found on the output terminal
panel. To gain access to the UVWO terminals or other
power receptacles, unlock the access cover and lift the
door.
5. Tighten the UVWO terminal nuts securely to prevent
load wires from slipping out.
Generator and Control Panel
The engine's exhaust contains harmful emissions.
ALWAYS have adequate ventilation when operating .
Direct exhaust away from nearby personnel.
CAUTION - LETHAL EXHAUST HAZARD
NEVER! manually start the engine with the main , GFCI
or auxiliary circuit breakers in the ON (closed) position.
WARNING - STARTING THE GENERATOR
INCORRECTCORRECT
1. Press the main circuit breaker “OFF” switch (Figure 40).
2. Verify that the main circuit breaker “OFF” lamp (Figure 41)
is lit (ON).
Figure 40. Main Circuit Breaker OFF Switch
Figure 42. GFCI and Auxiliary
Circuit Breakers (OFF)
Figure 41. Main Circuit Breaker OFF Lamp
