OUTPUT TERMINAL PANEL FAMILIARIZATION

Loads can be connected to the generator by various
methods, output terminal lugs, camlocks or the convenience
receptacles (Figure 11). Make sure to read the operation
manual before attempting to connect a load to the generator.
To protect the output terminals from overload, a 3-pole,
90A main circuit breaker is provided. Make sure to switch
 circuit breakers to the OFF position prior to starting
the engine.

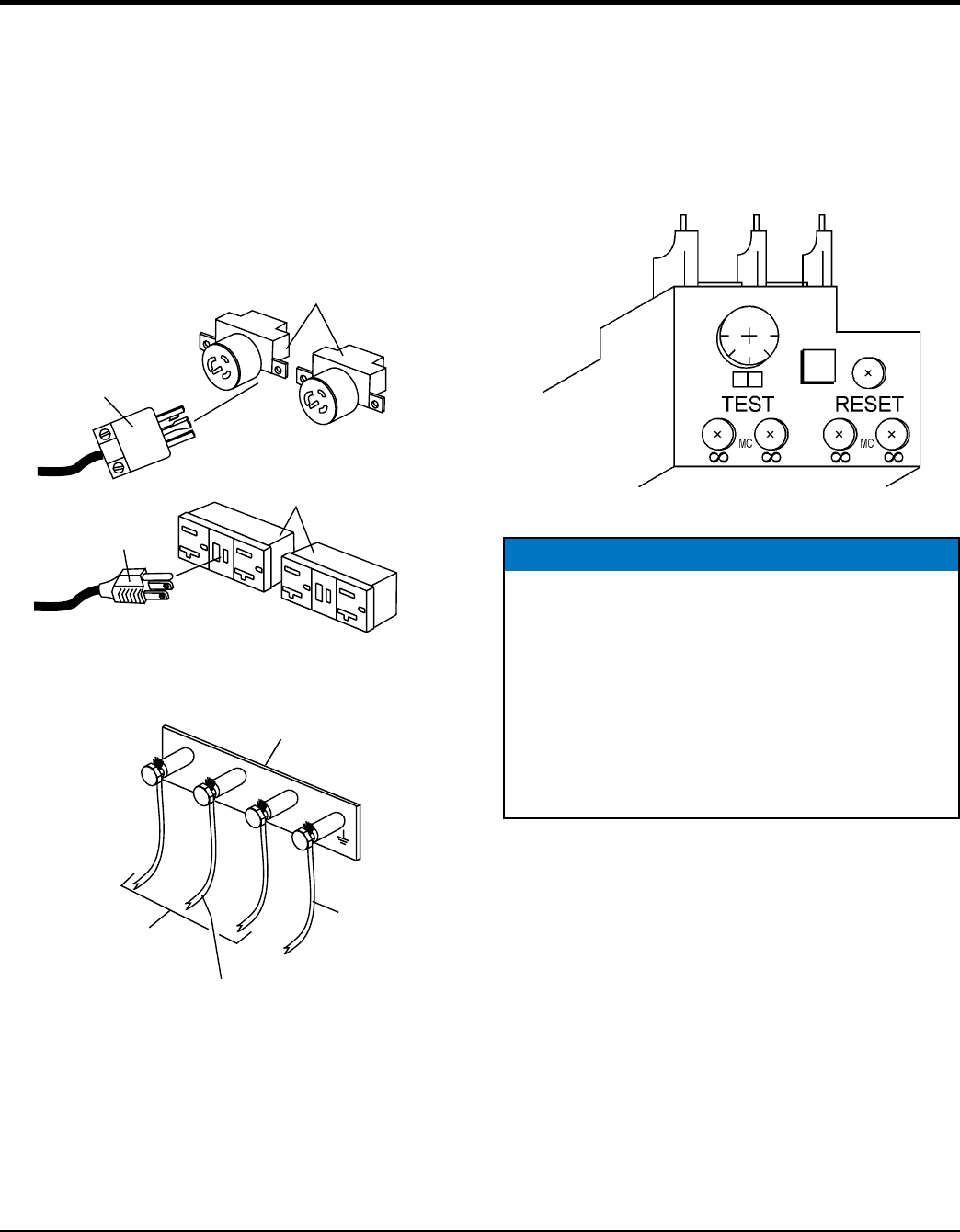

Figure 11. Connecting Loads
LOAD
NEUTRAL
GROUND
LOAD
GFCI
RECEPTACLES
LOAD
CS-6369
TWIST-LOCK
RECEPTACLES
U
O
V
AC OUTPUT
TERMINALS
Over Current Relay
An over current relay (Figure 12) is connected to the main
circuit breaker. In the event of an overload, both the circuit
breaker and the over current relay may trip. If the circuit
breaker can not be reset, the reset button on the over
current relay must be pressed. The over current relay is
located in the control box.
Figure 12. Over Current Relay
NOTICE
Remember the overcurrent relay monitors the current
flowing from the  to
the load.
In the event of a short circuit or over current condition,
it will automatically trip the 90 amp main breaker.
To restore power to the , press
the reset button on the overcurrent relay and place the
main circuit breaker in the closed position ().
