W8-Headstage
Pin Layout of the 8-Channel Headstage for the Wireless Recording System
multichannel
systems
*
Pin Layout of the single row precession socket (1.27 mm, round pin).
Please orientate the headstage as shown on the diagram.
GND Ground
REF Reference
E1 Electrode 1 Channel 1
E2 Electrode 2 Channel 2
E3 Electrode 3 Channel 3
E4 Electrode 4 Channel 4
E5 Electrode 5 Channel 5
E6 Electrode 6 Channel 6
E7 Electrode 7 Channel 7
E8 Electrode 8 Channel 8

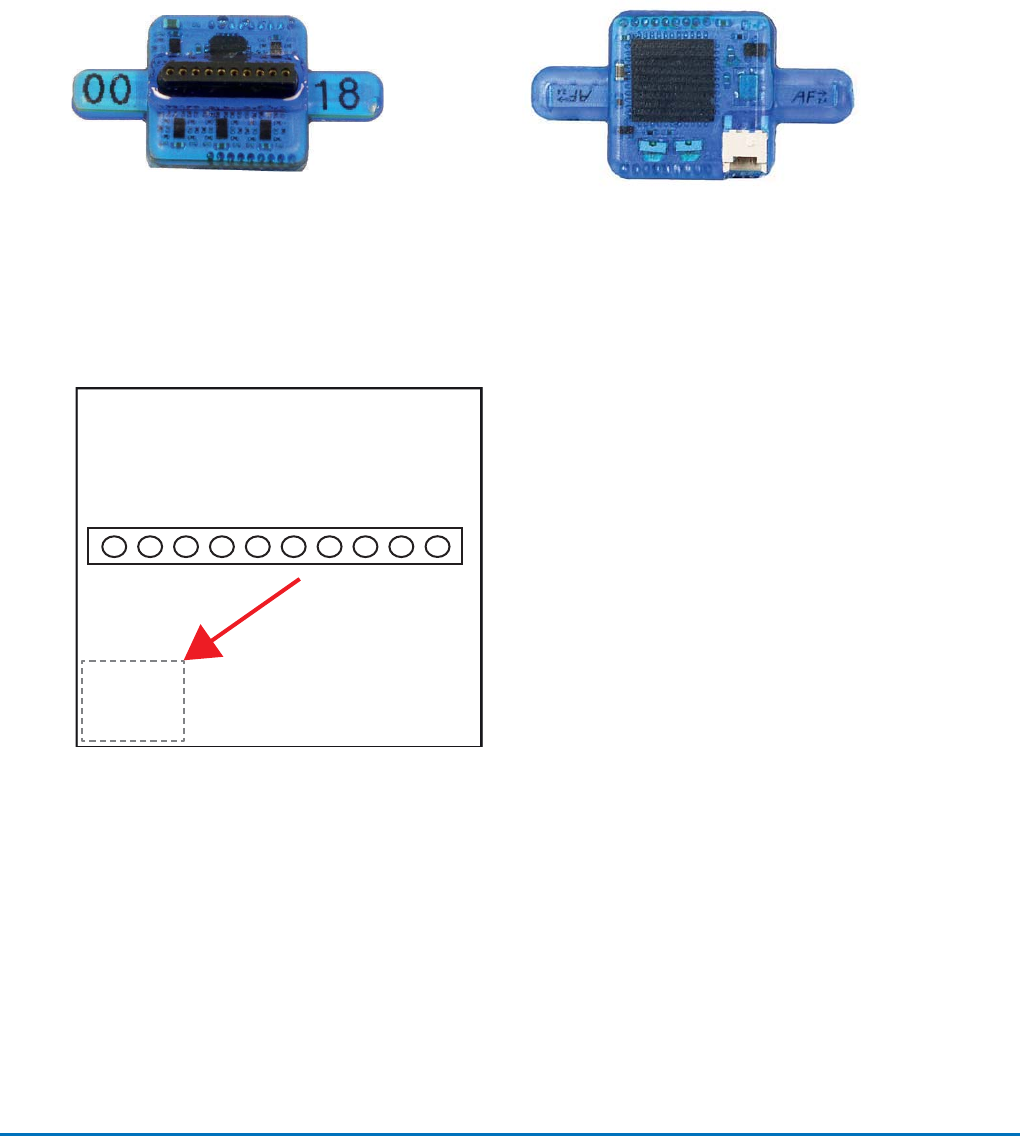

W8-Headstage top side:
The white connector is for the storage battery.
Please use this connector for the orientation
of the headstage.
W8-Headstage bottom side:
Connector for the electrode probe
or the ME/W-Signal generator.
W8-Headstage with single row socket
Diagram of the bottom side with pin layout.
Connector for W8-Headstage
with single row socket
The connector mates with a standard
single row 1.27 mm pin connector such as:
preci-dip
850-10-010-10-001101
MC_Rack
Storage battery connector
on the opposite side
for orientation.
GND REF E1 E2 E3 E4 E5 E6 E7 E8
Please orientate the headstage
as shown on the diagram.
