W32-Headstage
Pin Layout of the 32-Channel Headstage for the Wireless Recording System
multichannel
systems
*
Pin Layout of the Omnetics connector A79023-001 and corresponding MC_Rack Channels
Pin 1 GND (Ground) Pin 13 Channel 11 Pin 25 Channel 23
Pin 2 REF (Reference) Pin 14 Channel 12 Pin 26 Channel 24
Pin 3 Channel 1 Pin 15 Channel 13 Pin 27 Channel 25
Pin 4 Channel 2 Pin 16 Channel 14 Pin 28 Channel 26
Pin 5 Channel 3 Pin 17 Channel 15 Pin 29 Channel 27
Pin 6 Channel 4 Pin 18 Channel 16 Pin 30 Channel 28
Pin 7 Channel 5 Pin 19 Channel 17 Pin 31 Channel 29
Pin 8 Channel 6 Pin 20 Channel 18 Pin 32 Channel 30
Pin 9 Channel 7 Pin 21 Channel 19 Pin 33 Channel 31
Pin 10 Channel 8 Pin 22 Channel 20 Pin 34 Channel 32
Pin 11 Channel 9 Pin 23 Channel 21 Pin 35 GND (Ground)
Pin 12 Channel 10 Pin 24 Channel 22 Pin 36 GND (Ground)

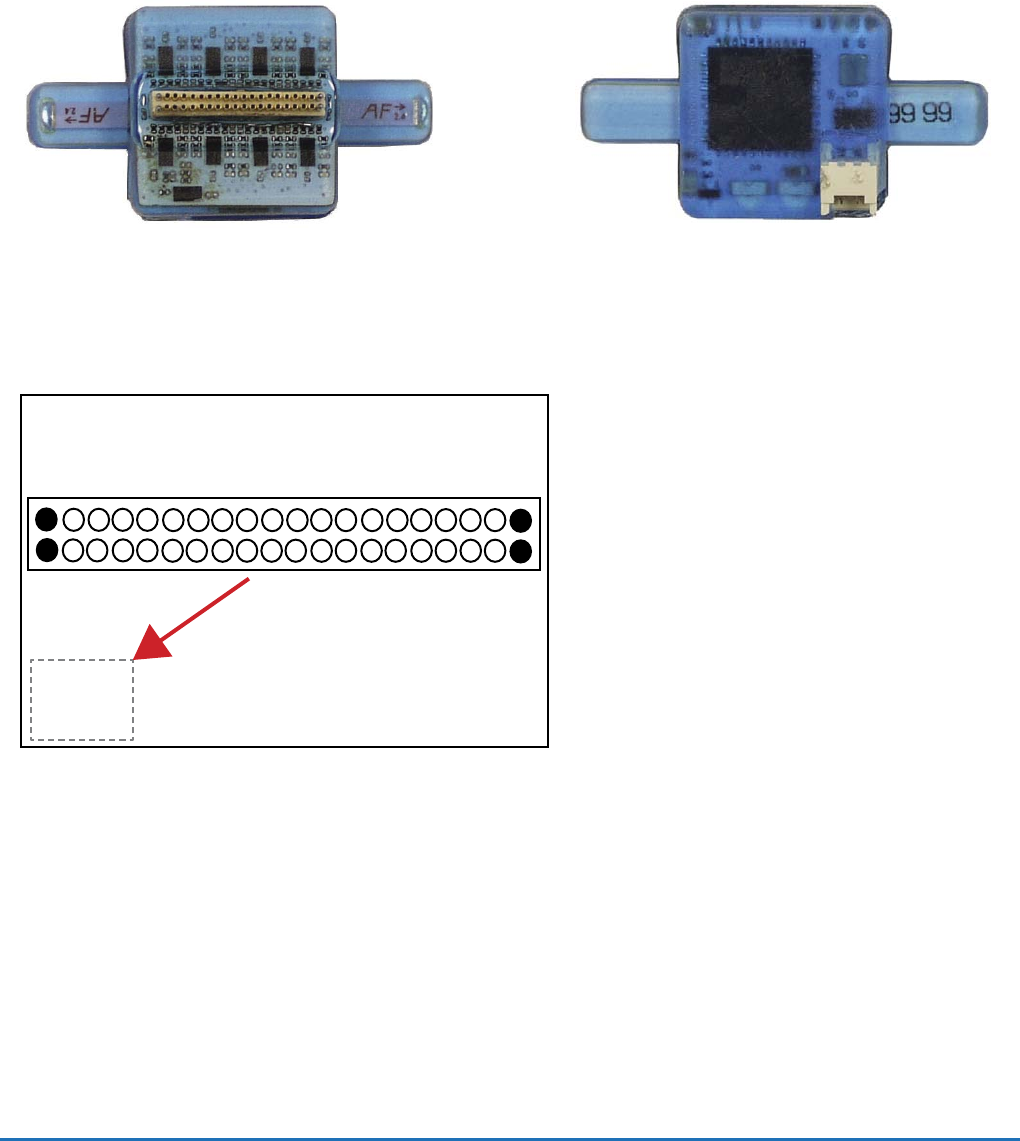

W32-Headstage top side:
Please use the white connector for the storage
battery for the orientation of the headstage.
W32-Headstage bottom side: Connector for the
electrode probe or the ME/W-Signal generator.
Connector for W32-Headstage
The Omnetics connector of the
W32-HS mates with Omnetics
standard pin connector with
4 guide posts, such as:
Straight Thru-Hole:
A79022-001
Horizontal Surface Mount:
A79024-001
Vertical Surface Mount:
A79026-001
Cable (18.0" 34 AWG lead-wire):
A79028-001
W32-Headstage with Omnetics connector
A79023-001 (NSD-36-DD-GS female, 4 guide posts)
Diagram of the bottom side with pin layout.
1 3 5 7 9 11 13 15
2 4 6 8 10 12 14 16 18 20
22 24 26 28 30 32 34 36
17 19 21 23 25 27 29 31 33 35
Please orientate the headstage
as shown on the diagram.
Storage battery connector
on the opposite side
for orientation.
