Wireless Headstages

Technical Specifications of Wireless Headstages

multichannel

systems

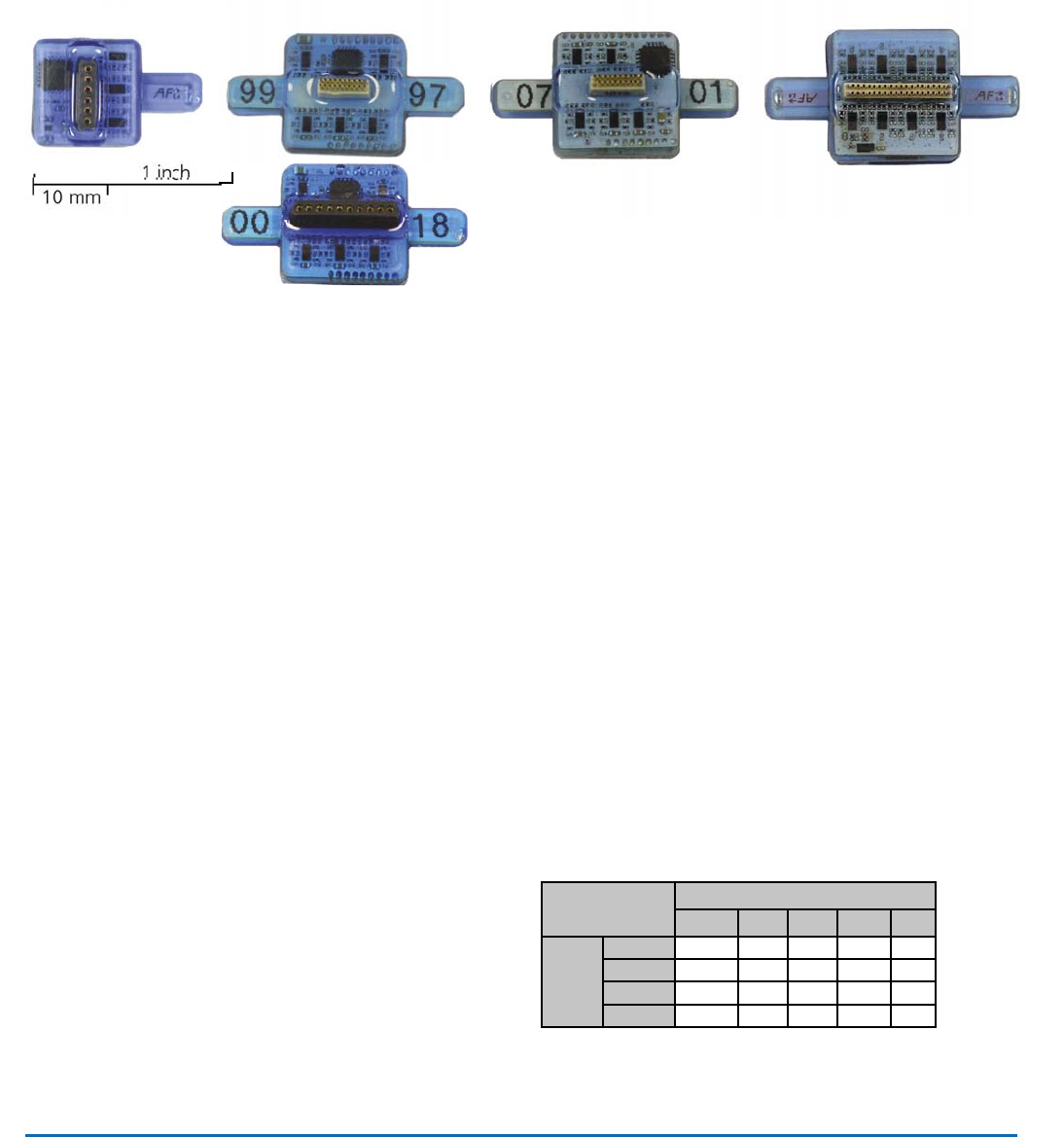

W4-Headstage W8-Headstage W16-Headstage W32-Headstage

Technical Specifications

Headstage

Number of channels 4, 8, 16 or 32

Dimensions (W x D x H) W4 13 x 13 x 5

(w/o antennae in mm) W8 16 x 16 x 5

W16 16 x 16 x 6.5

W32 16 x 16 x 7.5

Weight (w/o battery) W4 2.2 g

W8 2.9 g

W16 3.6 g

W32 3.7 g

Amplifier integrated in the Headstage

Bandwidth 1 Hz to 5 kHz (0.1 Hz on request)

Resolution 16 bit

Sampling rate in kHz per channel

Input voltage range + / - 12.4 mV

Distance for wireless link 5 m guaranteed

Sampling rate

(kHz/ch)

Number of selected channels

2481632

Type of

head-

stage

W4-HS 40 20 ---

W8-HS 40 40 20 --

W16-HS 20 20 20 10 -

W32-HS 10 10 10 10 5

Single row connector Omnetics or single row con. Omnetics connector Omnetics connector

Summary of content (11 pages)

PAGE 1
* multichannel systems Wireless Headstages Technical Specifications of Wireless Headstages W4-Headstage W8-Headstage Single row connector Omnetics or single row con. W16-Headstage Omnetics connector W32-Headstage Omnetics connector Technical Specifications Headstage Number of channels 4, 8, 16 or 32 Dimensions (W x D x H) (w/o antennae in mm) W4 W8 W16 W32 13 x 13 x 5 16 x 16 x 5 16 x 16 x 6.5 16 x 16 x 7.5 Weight (w/o battery) W4 W8 W16 W32 2.2 g 2.9 g 3.6 g 3.
PAGE 2
* multichannel systems Wireless Headstages Technical Specifications of Wireless Headstages 30 mAh Battery 100 mAh Battery 200 mAh Battery 300 mAh Battery Technical Specifications Batteries Dimensions in mm 30 mAh battery 100 mAh battery 200 mAh battery 300 mAh battery Weight in g Length Width Height Weight 17 26 26 27.5 11 19.5 20 19.5 3 2.3 4.5 5 1.5 3.1 4.6 6.
PAGE 3
* multichannel systems W4-Headstage Pin Layout of the 4-Channel Headstage for the Wireless Recording System W4-Headstage top side: The white connector is for the storage battery. Please use this connector for orientation of the headstage. W4-Headstage bottom side: Connector for the electrode probe or for the ME/W-Signal generator W4-Headstage with single row socket Diagram of the bottom side with pin layout: Please orientate the headstage as shown in the diagram.
PAGE 4
* multichannel systems W4-Headstage Technical Specifications W4-Headstage Number of channels 4 Dimensions (W x D x H) (w/o antennae) 13 x 13 x 5 mm Weight (w/o battery) 2.2 g Amplifier integrated in the Headstage Bandwidth 1 Hz to 5 kHz (0.1 Hz on request) Resolution 16 bit Sampling rate 4 channels simultaneously 2 channels simultaneously 20 kHz 40 kHz Input voltage range + / - 12.
PAGE 5
* multichannel systems W8-Headstage Pin Layout of the 8-Channel Headstage for the Wireless Recording System W8-Headstage top side: The white connector is for the storage battery. Please use this connector for the orientation of the headstage. W8-Headstage bottom side: Connector for the electrode probe or the ME/W-Signal generator. W8-Headstage with single row socket Diagram of the bottom side with pin layout. Please orientate the headstage as shown on the diagram.
PAGE 6
* multichannel systems W8-Headstage Pin Layout of the 8-Channel Headstage for the Wireless Recording System W8-Headstage bottom side: Connector for the electrode probe or the ME/W-Signal generator via the adapter ADPT-Om-ME/W-SG. W8-Headstage top side: The white connector is for the storage battery. Please use this connector for the orientation of the headstage. W8-Headstage with Omnetics socket Diagram of the bottom side with pin layout. Please orientate the headstage as shown on the diagram.
PAGE 7
* multichannel systems W8-Headstage Technical Specifications W8-Headstage (Omnetics or single row connector) Number of channels 8 Dimensions (W x D x H) (w/o antennae) 16 x 16 x 5 mm Weight (w/o battery) 2.9 g Amplifier integrated in the Headstage Bandwidth 1 Hz to 5 kHz (0.1 Hz on request) Resolution 16 bit Sampling rate 8 channels simultaneously 4 channels simultaneously 2 channels simultaneously 20 kHz 40 kHz 40 kHz Input voltage range + / - 12.
PAGE 8
* multichannel systems W16-Headstage Pin Layout of the 16-Channel Headstage for the Wireless Recording System W16-Headstage bottom side: Connector for the electrode probe or the ME/W-Signal generator. W16-Headstage top side: The white connector is for the storage battery. Please use this connector for the orientation of the headstage. W16-Headstage with Omnetics connector A79039-001 (NSD-18-DD-GS) Diagram of the bottom side with pin layout. Please orientate the headstage as shown on the diagram.
PAGE 9
* multichannel systems W16-Headstage Technical Specifications W16-Headstage Number of channels 16 Dimensions (W x D x H) (w/o antennae) 16 x 16 x 6.5 mm Weight (w/o battery) 3.6 g Amplifier integrated in the Headstage Bandwidth 1 Hz to 5 kHz (0.1 Hz on request) Resolution 16 bit Sampling rate 16 channels simultaneously 8 channels simultaneously 4 channels simultaneously 2 channels simultaneously 10 kHz 20 kHz 20 kHz 20 kHz Input voltage range + / - 12.
PAGE 10
* multichannel systems W32-Headstage Pin Layout of the 32-Channel Headstage for the Wireless Recording System W32-Headstage top side: Please use the white connector for the storage battery for the orientation of the headstage. W32-Headstage bottom side: Connector for the electrode probe or the ME/W-Signal generator. W32-Headstage with Omnetics connector A79023-001 (NSD-36-DD-GS female, 4 guide posts) Diagram of the bottom side with pin layout. Please orientate the headstage as shown on the diagram.
PAGE 11
* multichannel systems W32-Headstage Technical Specifications W32-Headstage Number of channels 32 Dimensions (W x D x H) (w/o antennae) 16 x 16 x 7.5 mm Weight (w/o battery) 3.7 g Amplifier integrated in the Headstage Bandwidth 1 Hz to 5 kHz (0.1 Hz on request) Resolution 16 bit Sampling rate 32 channels simultaneously 16 channels simultaneously 8 channels simultaneously 4 channels simultaneously 2 channels simultaneously 5 kHz 10 kHz 10 kHz 10 kHz 10 kHz Input voltage range + / - 12.
