SD64
The SD64 is used for picking single channels from the amplifier. The device is connected to the filter amplifier
(FA or PGA) and to the MC_Card or to an USB-ME-System with 68-pin MCS high grade cables. It does not
matter to which socket the input or the output is connected.
The supply voltage inputs are not used for this device, but may be used for custom setups without IPS10W.
An external power supply can be connected to the device, which passes the power to other devices of the
system, for example, to the FA amplifier. The input supply voltage can range from 6 V to 12 V.

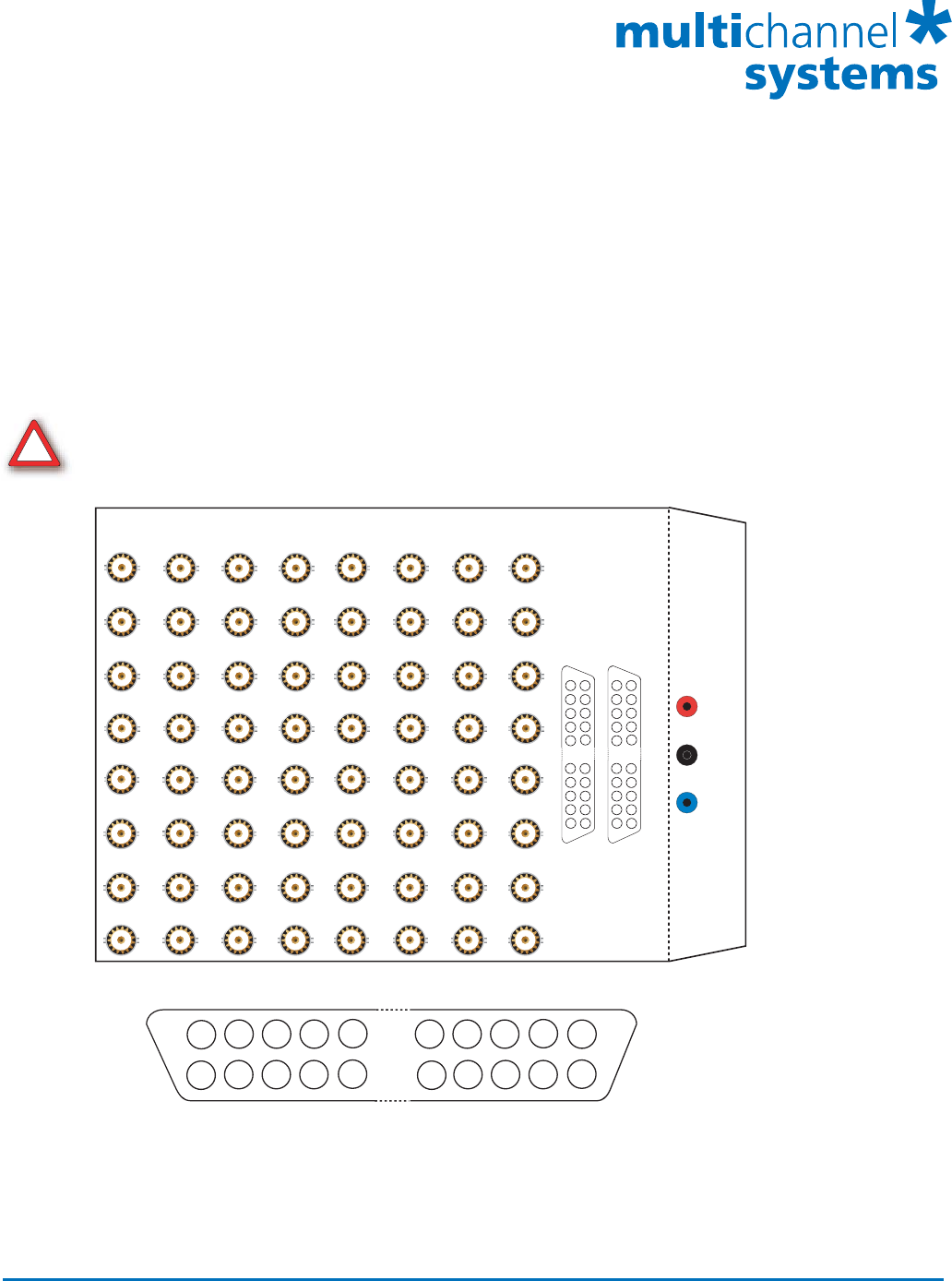

Use and Operation of the 64-Channel Signal Divider
68-pin MCS standard connector Analog Input
Pin 1: GNDP (power ground)
Pin 2: GNDS (signal ground)
Pin 3 - 66: Channels 1 to 64
Pin 67: Positive voltage supply
Pin 68: Negative voltage supply
67
68
65
66
63
64
61
62
59
60
1
10
9
8
7
6
5
4
3
2
!
Warning: The device may only be used together with ME-Systems and MEA-Systems
from Multi Channel Systems MCS GmbH, and only for the specified purpose.
Damage of the device and even fatal injuries can result from improper use.
Channel No. (linear layout)
67
68
65
66
63
64
61
62
59
60
1
10
9
8
7
6
5
4
3
2
68-pin MCS standard connector
67
68
65
66
63
64
61
62
59
60
1
10
9
8
7
6
5
4
3
2
567
8
13 14 15
16
21 22 23
24
29 30 31
32
123
4
91011
12
17 18 19
20
25 26 27
28
37 38 39
40
45 46 47
48
53 54 55
56
61 62 63
64
33 34 35
36
41 42 43
44
49 50 51
52
57 58 59
60
+
GND
–
