Chapter 4 - Leased Line Operation
32
Multi-Tech Systems, Inc. MT5600BA/BL Series User Guide

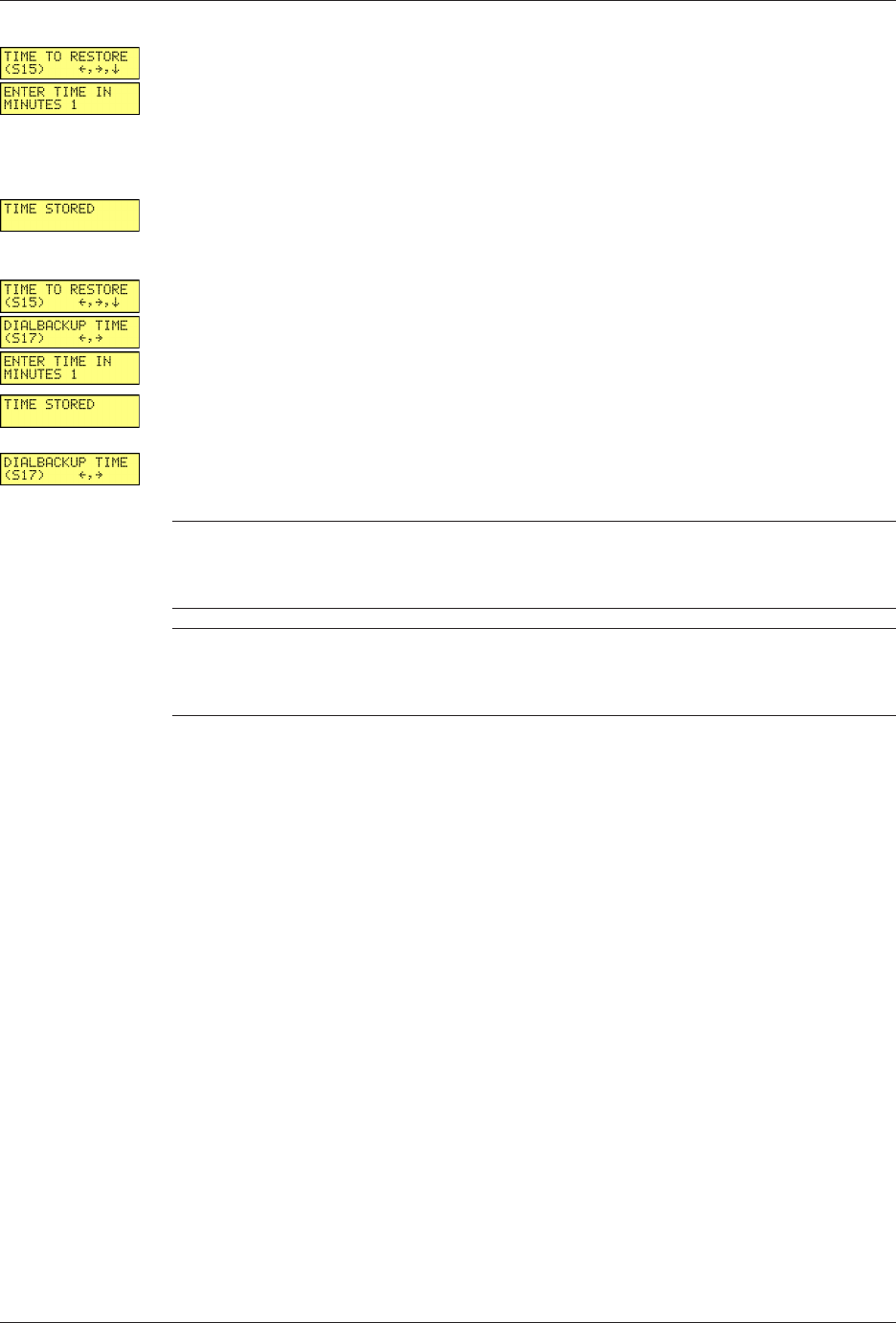

8. To change the default restore time, press â to go to the TIME TO RESTORE
(S15) screen, then press à, à. The ENTER TIME IN MINUTES screen ap-
pears.
9. Press the á
ß
or â button several times to select the first digit in the number.
10. Press the à button to go to the next digit in the number.
11. Repeat steps 9 and 10 until you have entered a value between 10 and 255, or 0
to disable dial backup, and then press the Enter button to store it. The TIME
STORED screen appears.
12. Press the Enter button to return to the TIME TO RESTORE (S15) screen.
13. To change the default dial backup time, press â to go to the DIAL BACKUP
TIME (S17) screen, then press à, à. The ENTER TIME IN MINUTES screen
appears.
14. Repeat steps 9 and 10 until you have entered a value between 0 and 255, and
then press the Enter button to store it. The TIME STORED screen appears.
15. Press the Enter button again to return to the DIAL BACKUP TIME (S17) screen.
16 . Dial backup and leased line restoral setup is complete.
Note: Registers
S15
and
S17
can also be changed using the
Sr=n
AT command.
See the AT Command Reference Guide on the CD that was shipped with your
modem.
Note: The dial backup number can be displayed only 16 characters at a time. To see
characters 17–30, press the â button. To go to the previous screen, press the ß
button. To go to the next screen, press the à button.
