Chapter 3 - Using the Front Panel
20
Multi-Tech Systems, Inc. MT5600BA/BL Series User Guide

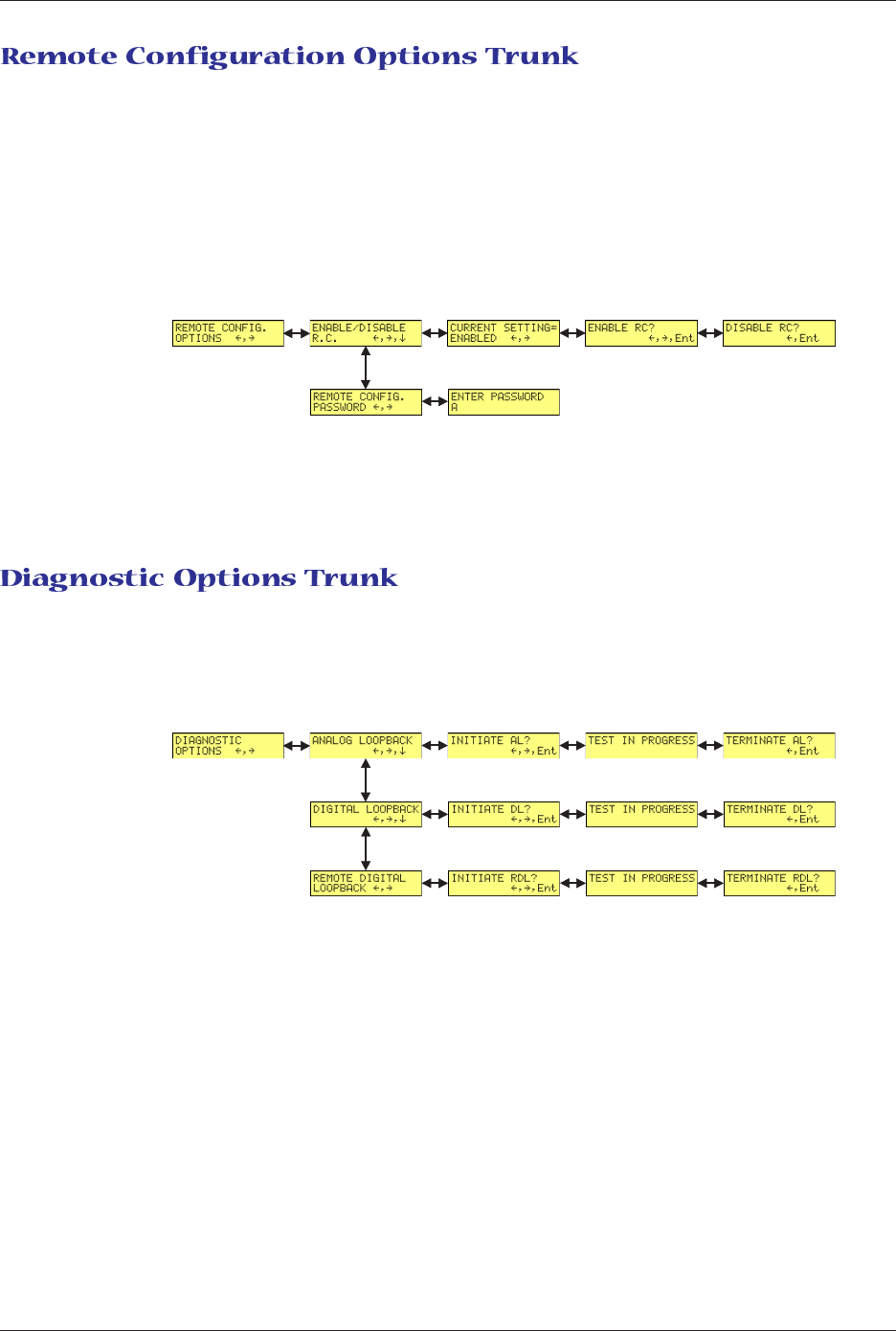

Use the Remote Configuration Options Trunk to enable or disable remote configuration on the modem,
and to change the password. When entering the password, use the á
ß
and â buttons to scroll through
the alphabet. To go to the next character position, press the à button. To backspace or to exit, press the
à button several times.
Limb Branches Twigs
Use the Diagnostic Options Trunk to run loopback tests on the modem. When a test is in progress, the
TM indicator lights.
Limb Branches Twigs
