Chapter 3 - Using the Front Panel
15
Multi-Tech Systems, Inc. MT5600BA/BL Series User Guide

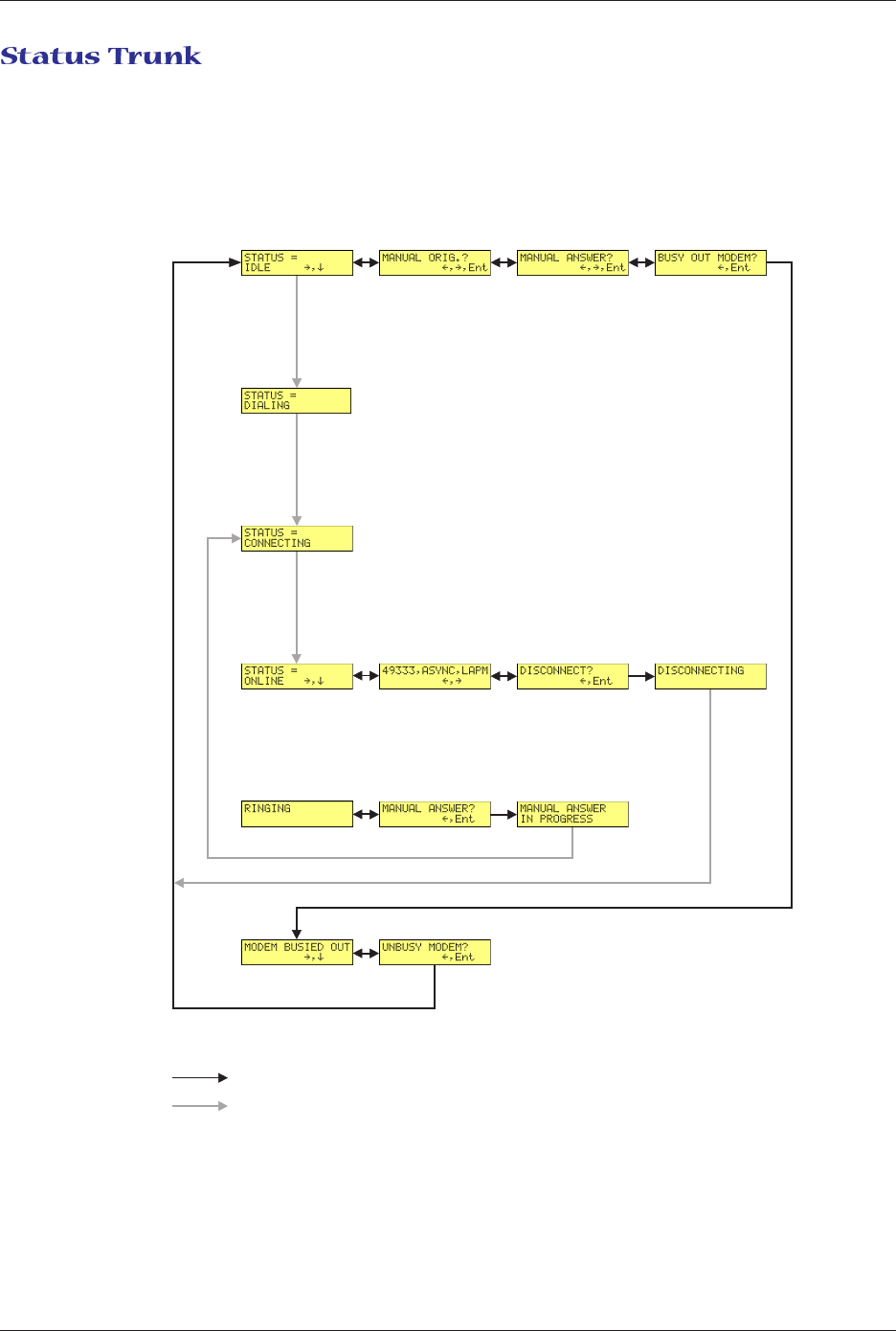

The Status Trunk shows the current operating status of the modem. Limb changes are automatic, but
certain options can be accessed by pressing the à button. Note that when the modem is online, pressing
the à button shows the connect status, including the data speed, connection type, and compression
type.
Limbs Twigs
Manual selection
Automatic selection
